Rover Configuration - Javad TRIUMPH-1 Configuration Example

GSM Base & Rover Configuration Example

Rover Configuration

Rover Configuration
1. Start ModemVU.
2. Select Triumph 1X Internal Radio
3. Select the port receiver is connected to and click Connect (Figure 2-11).
4. Set the Radio and GSM parameters to OFF and click Apply.
1. For SIGMA receiver select SIGMA; for GISmore select GISmore
8
1
and click OK (Figure 2-10).

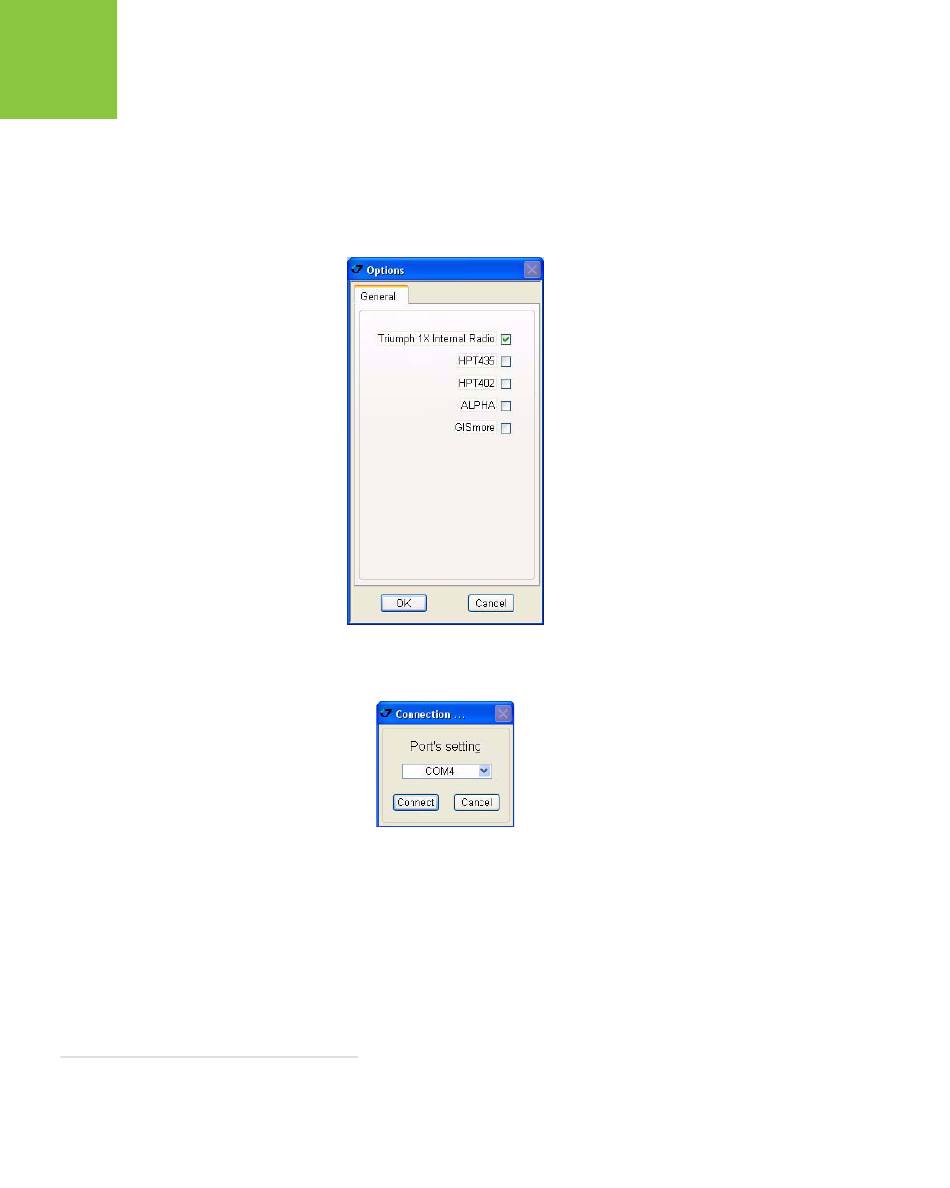

Figure 2-10. ModemVU. Options window
Figure 2-11. ModemVU. Connection
