Main Menu Screen

The Main Menu screen displays the main signals to and
from the system controller, including real-time running
information, machine configuration, detailed failure
information, available languages, and maintenance
information.
• Operation Information – Displays real-time engine
operating values, fuel level, and load-sense
pressure with the engine running.
• Machine Configuration – Displays basic
information of the excavator.
• Failure Information – Displays detailed failure
codes recorded by the machine.
• Global Positioning System (GPS) Information –
Not used at this time in North America.
• Language Selection – Select the language that
displays information on all screens.
• Maintain Table – Displays when the machine is
due for maintenance. If maintenance is not due, the
Maintain Table screen will not open. The Maintain Table screen is also used to reset the service timer.
NOTE: Access to some screens requires a password.

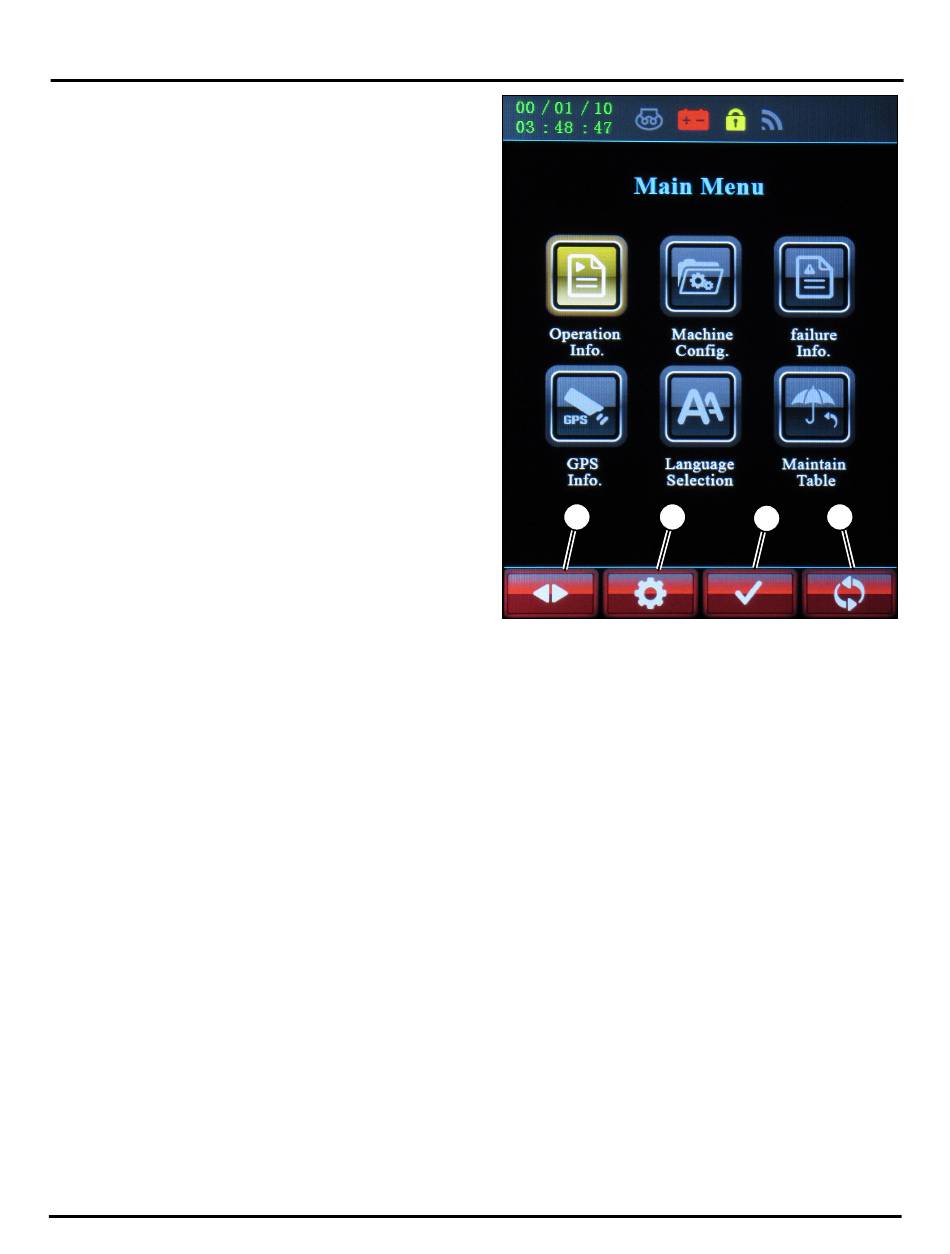

1. Press the button below the left/right arrow icon (1) to scroll and illuminate the selected icon.
2. Press the button below the gear icon (2) to display the System Setup screen, which is password-protected for
use by SANY only.
NOTE: The gear icon selection is password-protected for most of the Main Menu selections.
3. Press the button below the check-mark icon (3) to access the selected icon screen if an active function of the
machine.
NOTE: To return to the previous screen, press the button below the return icon (4).
