FUSES

NOTICE!
• A fuse should be replaced if it is blown, corroded, or becomes loose in the fuse block.
• Before replacing a fuse, make sure the key switch is in the OFF position and the batteries
are disconnected.
• Always replace a fuse with one of the same capacity. Never replace a fuse with a higher
capacity fuse, which could damage the machine or cause it to operate improperly.

Access the Fuse Panel

If an electrical component fails, check the fuse first. The fuse and relay box is located under the operator's seat.
1. Always turn the battery disconnect switch to off before checking or replacing fuses. See "Battery Disconnect
Switch" on page 3-21.

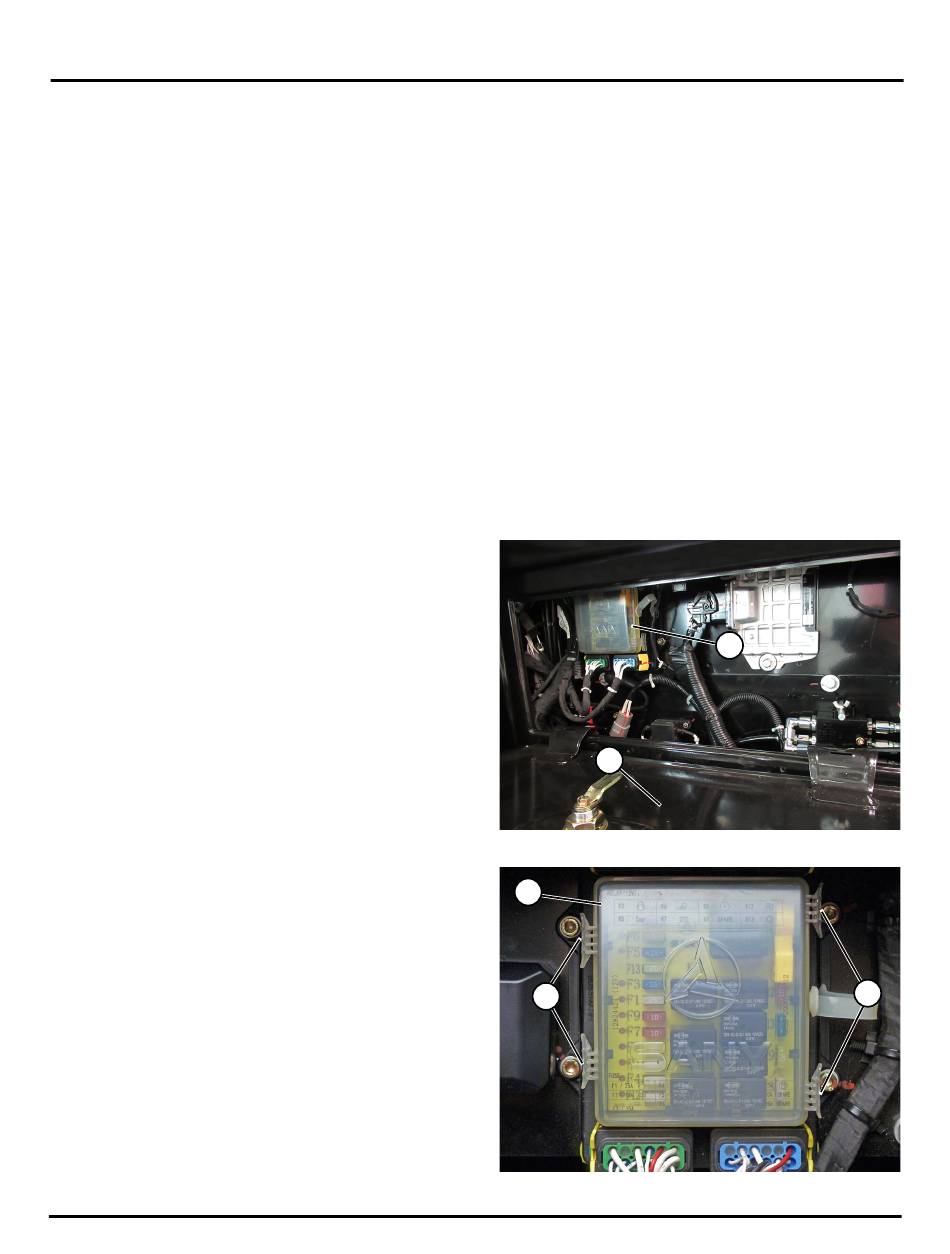

2. Unlock and open the access door (1) under the
operator's seat to access the fuse panel (2). See "Fuse
Access Door" on page 5-27.
3. Remove the transparent fuse cover (3) by gently
pulling out on the bottom of one of the four latches (4)
while lifting up the adjacent corner of the cover. Repeat
for the other three tabs to release the cover.
5-28
Fig. 5-20
Fig. 5-21
Operation and Maintenance Manual — 0120
SY35U Excavator OMM
1
3
4
2
0004530
4
0007836S
