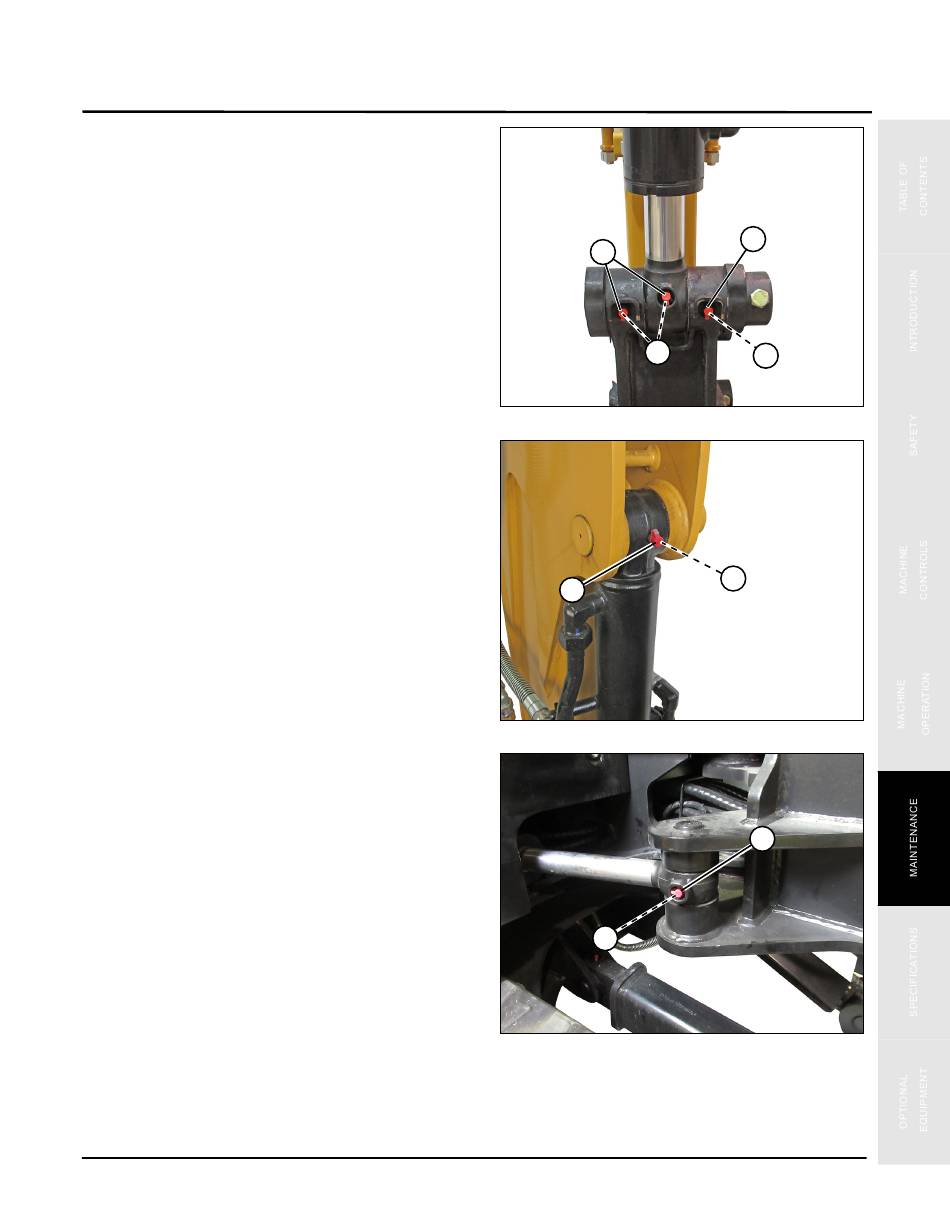

Bucket Cylinder Rod End Pin

1. Remove the grease fitting caps (1) from the bucket cyl-
inder rod end pin grease fittings (2).
2. Grease the bucket cylinder rod end pin grease fittings.
NOTE: Wipe excess grease from around the grease
fittings.
3. Install the grease fitting caps.

Bucket Cylinder Base End Pin

1. Remove the grease fitting cap (1) from the bucket cyl-
inder base end pin grease fitting (2).
2. Grease the bucket cylinder base end pin grease fitting.
NOTE: Wipe excess grease from around the grease
fitting.
3. Install the grease fitting cap.

Boom Swing Cylinder Rod End Pin

1. Remove the grease fitting cap (1) from the boom swing
cylinder rod end pin grease fitting (2).
2. Grease the boom swing cylinder rod end pin grease
fitting.
NOTE: Wipe excess grease from around the grease
fitting.
3. Install the grease fitting cap.
SANY
Fig. 5-92
Fig. 5-93
Fig. 5-94
Operation and Maintenance Manual — 0120
1
2
2
1
2
Maintenance
1
2
0003179
0003180
1
0003181
5-79
