Joystick BHL Mode

NOTE: The illustrations in this section show a cab machine. Canopy machines are similar.
–

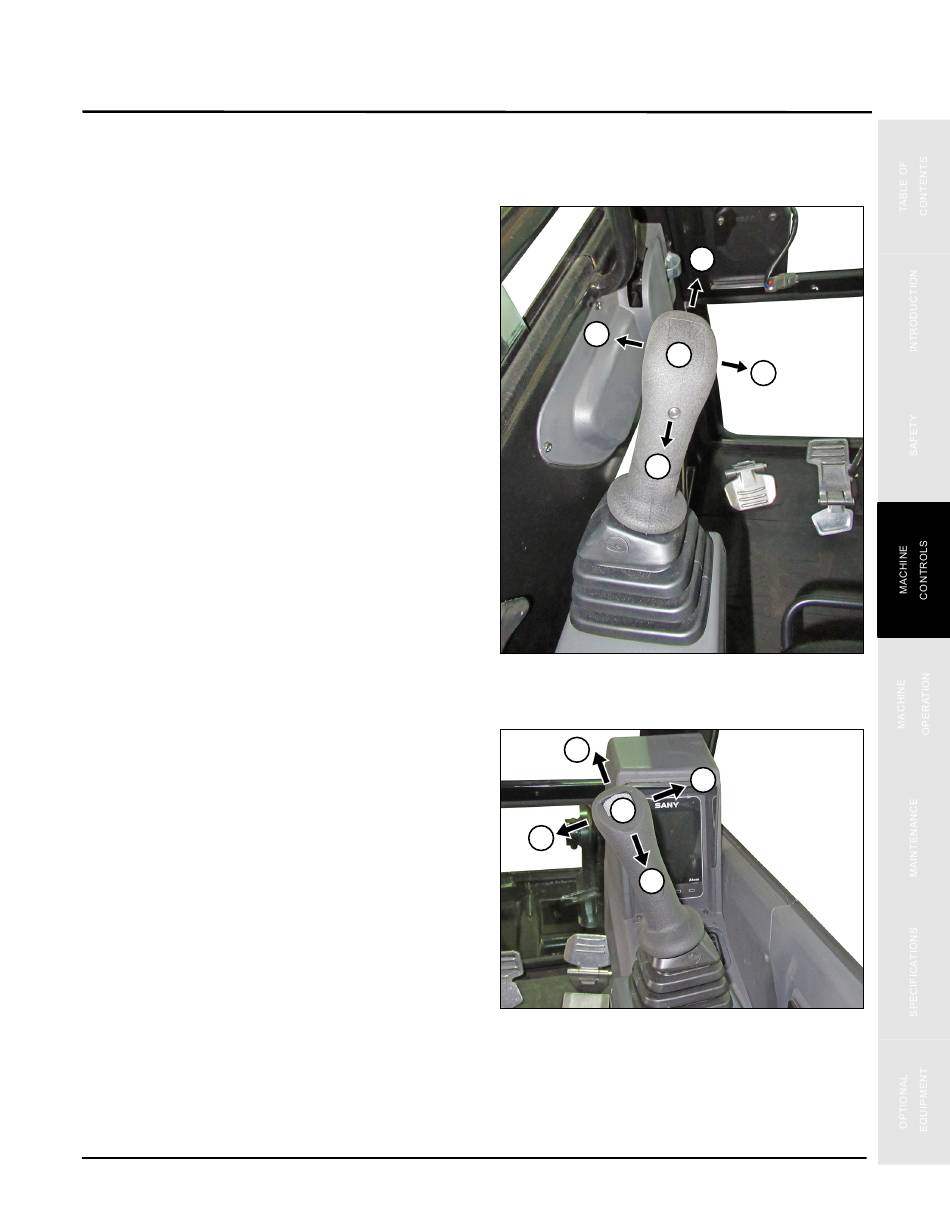

Left Joystick BHL Mode
The BHL mode uses the left joystick to control the boom
and upper structure:
• Swing the upper structure to the left (1)
• Boom down (2)
• Swing the upper structure to the right (3)
• Boom up (4)
• Neutral (N)
NOTE: The joystick controls return to the neutral
position automatically when released. The
functions of the machine will stop.
–
Right Joystick BHL Mode
The BHL mode uses the right joystick to control the arm
and bucket:
• Bucket dig (1)
• Arm out (2)
• Bucket dump (3)
• Arm in (4)
• Neutral (N)
NOTE: The joystick controls return to the neutral
position automatically when released. The
functions of the machine will stop.
