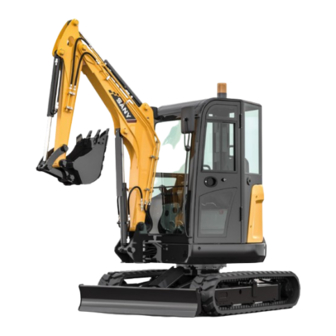

Summary of Contents for SANY SY26U
- Page 1 SY26U QUICK START GUIDE...
- Page 2 SY26U QUICK START GUIDE SY26U Display Date and Time Engine Pre-heat Battery Charge Light Machine Locked Out EVI Signal Engine Hour Display Engine Coolant Temperature Gauge Menu 2 Speed Travel Not Used Not Used Maintenance Service Light Error Code Alarm...
-
Page 3: Tool Select
Tool Select 1. To access the tool 2. The function list 3. Using Soft Key 1, selection menu, will be displayed. scroll through the press Soft Key 4. Using Soft Key 1, list until the tool scroll across until required is Operating Mode is highlighted then highlighted and... - Page 4 SY26U QUICK START GUIDE Flow Rate Set Up Using Soft Key 1 scroll To scroll up and down Use Soft Key 1 to to the tool that needs the list, use the up increase (+) & Soft setting up. Once the and down arrows.
-
Page 5: Quick Hitch Operation
Quick Hitch Operation To access the quick hitch guide, press and hold the red button on the back of the left-hand control lever. Once the quick hitch control page opens activate the quick coupler with Soft Key 1. Activate the unlock function with Soft Key 2, at this point the hitch will not unlock. - Page 6 SY26U QUICK START GUIDE Isolator The machine isolator key is located in the fuel tank/toolbox area on the offside of the machine.
-
Page 7: Emergency Stop Switch
Emergency Stop Switch The Emergency Stop Switch is located to the left hand side of the operators seat. When the button is pushed in, twist clockwise and the button will release. - Page 8 SY26U QUICK START GUIDE 2-Way Change Over (Aux Lines) The single/double acting change over valve is located in the engine bay.
- Page 9 Arm Rest Functions 1. Wiper Function 2. Work Lights 3. Engine RPM Control 4. Windscreen Wash 5. Rotating Amber Beacon (first position beacon active/travel alarm muted. Second position - beacon and travel alarm active) 6. Ignition Barrel...
-
Page 10: Heater Control
SY26U QUICK START GUIDE Heater Control The Heater Fan control is located below the display on the right-hand side of the machine. - Page 11 Engine Bay Overview Engine oil dipstick Coolant level check and filling point (Do not open radiator cap when engine is hot) Water in fuel separator 2 Way change over valve for Aux hydraulics...
- Page 12 SY26U QUICK START GUIDE Service Intervals Guide One time inspection Maintenance Work Engine Oil Initial Inspection after 50hrs Engine Oil Filter Regular inspection Maintenance Work Water build-up in the Fuel System Daily Inspection Engine Oil Lubrication Points Water build-up in the Fuel System...
- Page 13 Every (hr) Maintenance Steps 8hrs 50hrs 100hrs 200hrs 250hrs 500hrs 1000hrs 2000hrs 2500hrs Boom Swing Pin Boom Swing Cylinder Pin Boom Base Pin Boom / Arm Connecting Pin Arm Cylinder Pin Arm / Bucket Connecting Pin Bucket Link-head Pins Slewing Gear Blade Cylinder Pin Door Pin Track Tensioner...
- Page 14 SANY UK Hotline (0330 202 1318) SY26U Quick Start Guide...
