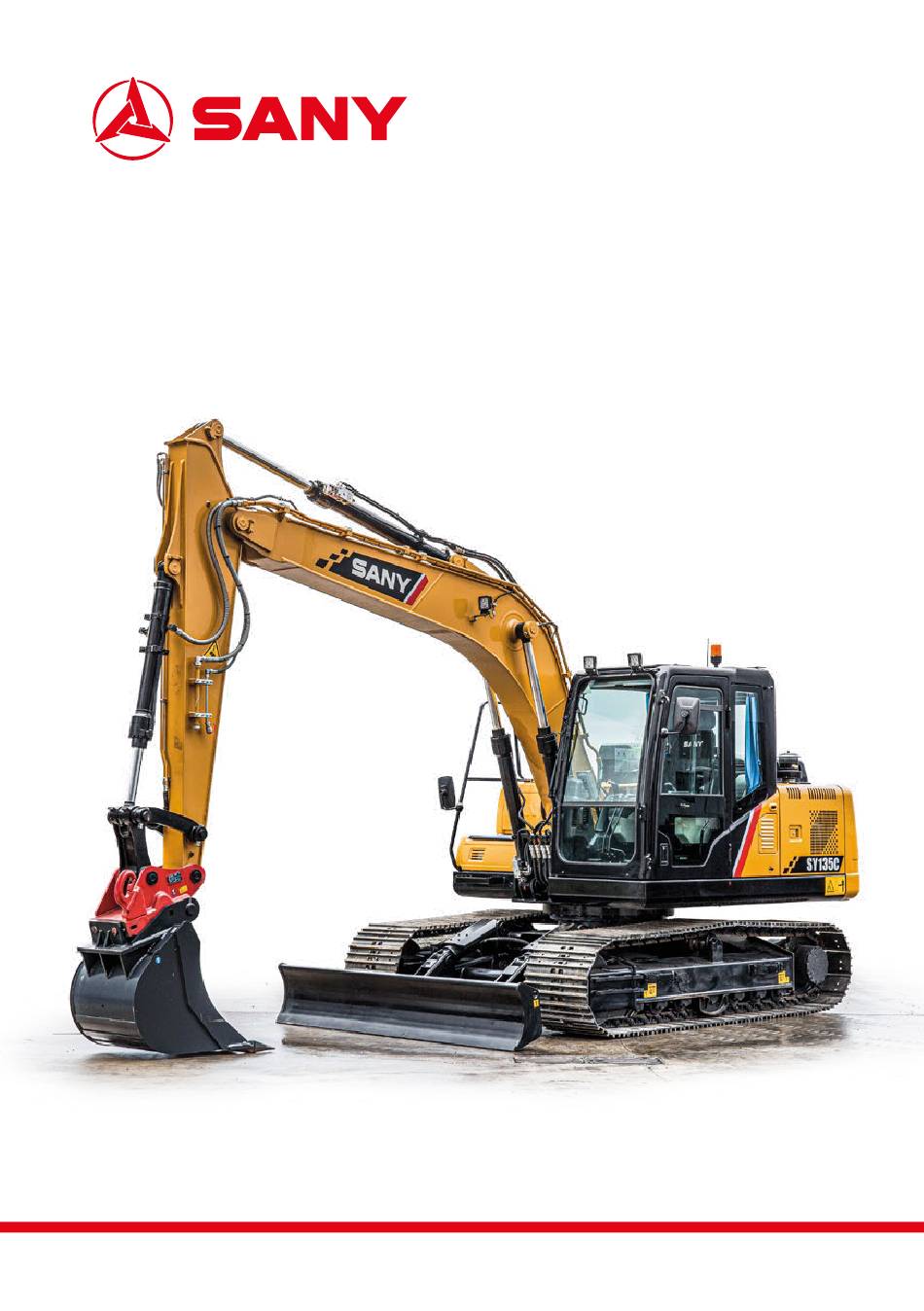

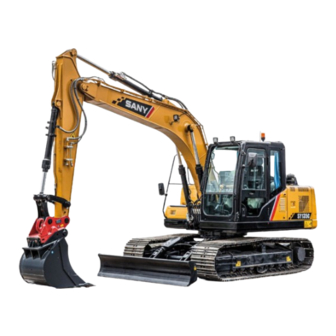

- Page 1 SY135C QUICK START GUIDE...
- Page 2 SY135C QUICK START GUIDE SY135C Display GPS Active Fuel Level Buzzer Cancelled Work/Throttle Indicator Time/Date Automatic DPF Regen DPF Regen Inhibit Warning Engine Fault Warning Engine Pre Heat Engine Stop Warning Engine Torque De-rate Engine Torque De-rate 25% Engine Torque De-rate 75%...
-
Page 3: Work Modes
Work Modes The machine work mode is enabled by selecting the desired mode on the touch screen display. Press the mode select icon to cycle through options. Work Mode Operation Standard / Normal operation. Heavy Duty Mode. For when additional power is required for heavy applications. Power Boost. Light Duty / Lifting. - Page 4 SY135C QUICK START GUIDE Quick Hitch Process (PT 1) 01 Select Main 02 Select Quick 03 Select Unlock Menu Icon Change Icon (Buzzer will sound)
- Page 5 Quick Hitch Process (PT 2) 01 Select Bucket 02 Select right hand 03 Crowd the bucket Removal Icon button on left hand fully in to allow lever control and the bucket to press throughout detach. Whilst still the entire pressing the detachment button, connect the process...
-
Page 6: Tool Selection
SY135C QUICK START GUIDE Tool Selection 01 Select Main 02 Select Implement 03 Select required Menu Icon Selection icon attachment from the menu 1. Bucket 2. Breaker 3. Grab/Clam shell 4. Rotator grab 5. Flail 6. Grapple 7. Grapple with rotate... - Page 7 Tool Set Up 01 Select the required 02 Select Tool Set Up 03 SET UP tool from the menu RL & RR = High Flow (Breaker Lines) LL & LR = Low flow (Rotation Lines) Press +/- icons to increase Left Lever Right Lever or decrease flow on desired...
-
Page 8: Exhaust Regeneration
SY135C QUICK START GUIDE Exhaust Regeneration The machine will run an auto regen as required to clear soot from the exhaust system. For the regen to commence the machine must meet certain parameters with regards to temperature. When the Auto Regen light illuminates continue to work the machine normally until the regen has completed. - Page 9 Select the Regen Inhibit icon and then select Escape. The regen will stop and the Regen Inhibit light will illuminate on the display. The machine can now be moved to a safe area to allow the process to continue. *DO NOT inhibit regens unnecessarily. *All inhibits are recorded within the machine ECU.
-
Page 10: Manual Regeneration
SY135C QUICK START GUIDE Manual Regeneration Manual regeneration is only available if the machine requests one. The Manual Regen light will flash in the top right corner of the display. It will only do so if automatic regenerations have been inhibited or cancelled. - Page 11 Alternator Starter Valve Play, Engine Water Pump Every 4000hrs Hydraulic Oil Suction Filter Hydraulic Oil** Every 6yrs Hydraulic Pipes SANY Service Every 10,000hrs Check Maintenance Work Air Filter Coolant Radiator Cooling Fins Air Conditioning System Coolant As required Track Tension...
- Page 12 SY135C QUICK START GUIDE Every (hr) After (hr) Maintenance Steps 50hrs 100hrs 500hrs 8hrs 50hrs 100hrs 200hrs 250hrs 500hrs 1000hrs 2000hrs 2500hrs 4000hrs Final Drive Motor Oil Boom Swing Pin Boom Swing Cylinder Pin Boom Pins Boom Socket-head Bolts Boom / Arm Connecting Pin...
- Page 14 SY135C Quick Start Guide...
