Machine Controls
OPERATOR CONTROLS

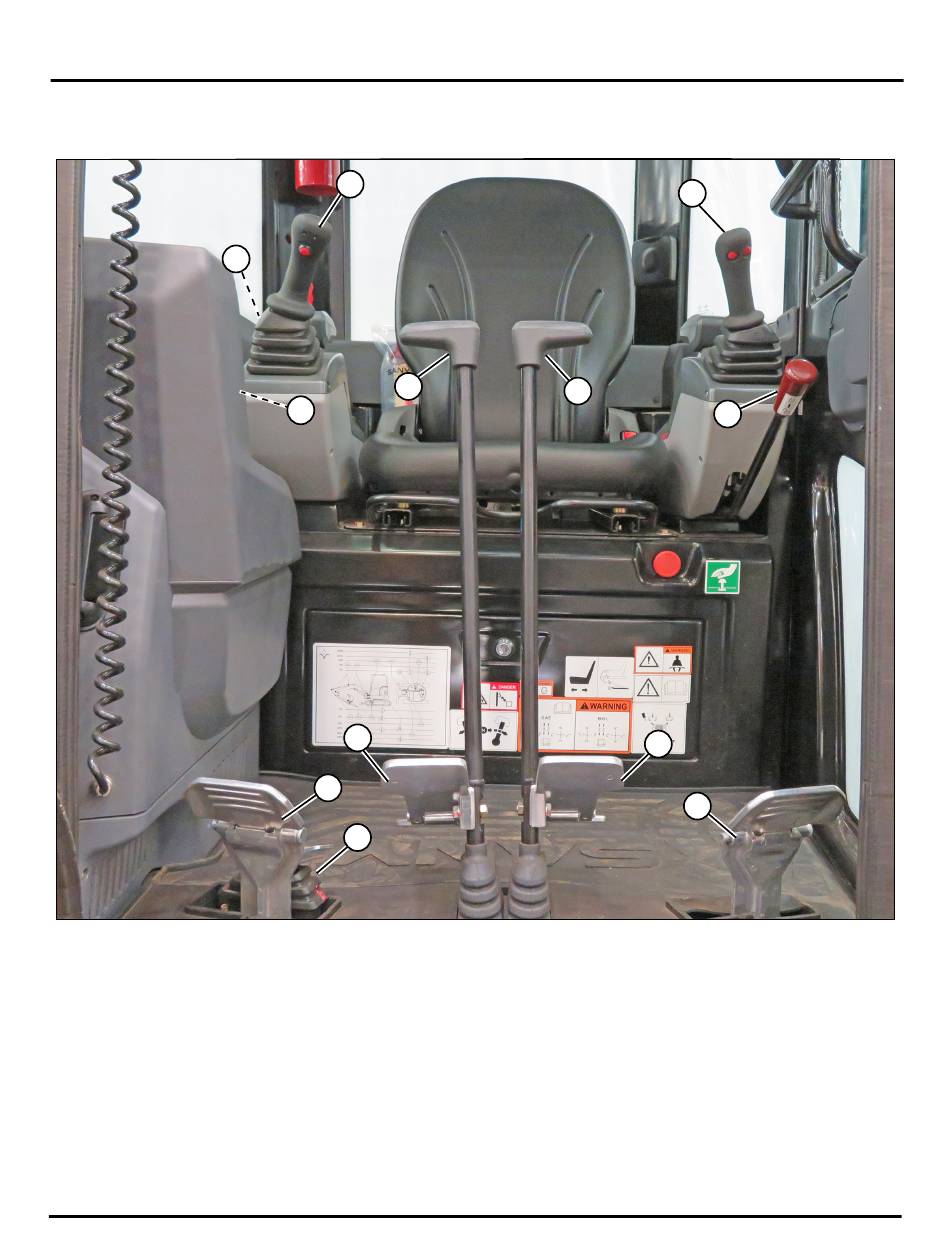

NOTE: The illustration shows a cab machine. Canopy machines are similar.
Fig. 3-22
1) Dozer blade control lever (page 3-15)
2) Right joystick (page 3-16)
3) Left joystick (page 3-16)
4) Hydraulic lockout control lever (page 3-19)
5) Left travel control lever (page 3-21)
6) Right travel control lever (page 3-21)
3-14
2
1
6
7
8
11
12
Operation and Maintenance Manual — 0120
5
9
7) Monitor (page 3-33)
8) Right travel control pedal (page 3-21)
9) Left travel control pedal (page 3-21)
10) Left footrest
11) Right footrest
12) Boom swing control pedal (page 3-22)
SY35U Excavator OMM
3
4
10
0004645
