Summary of Contents for SANY SY155U

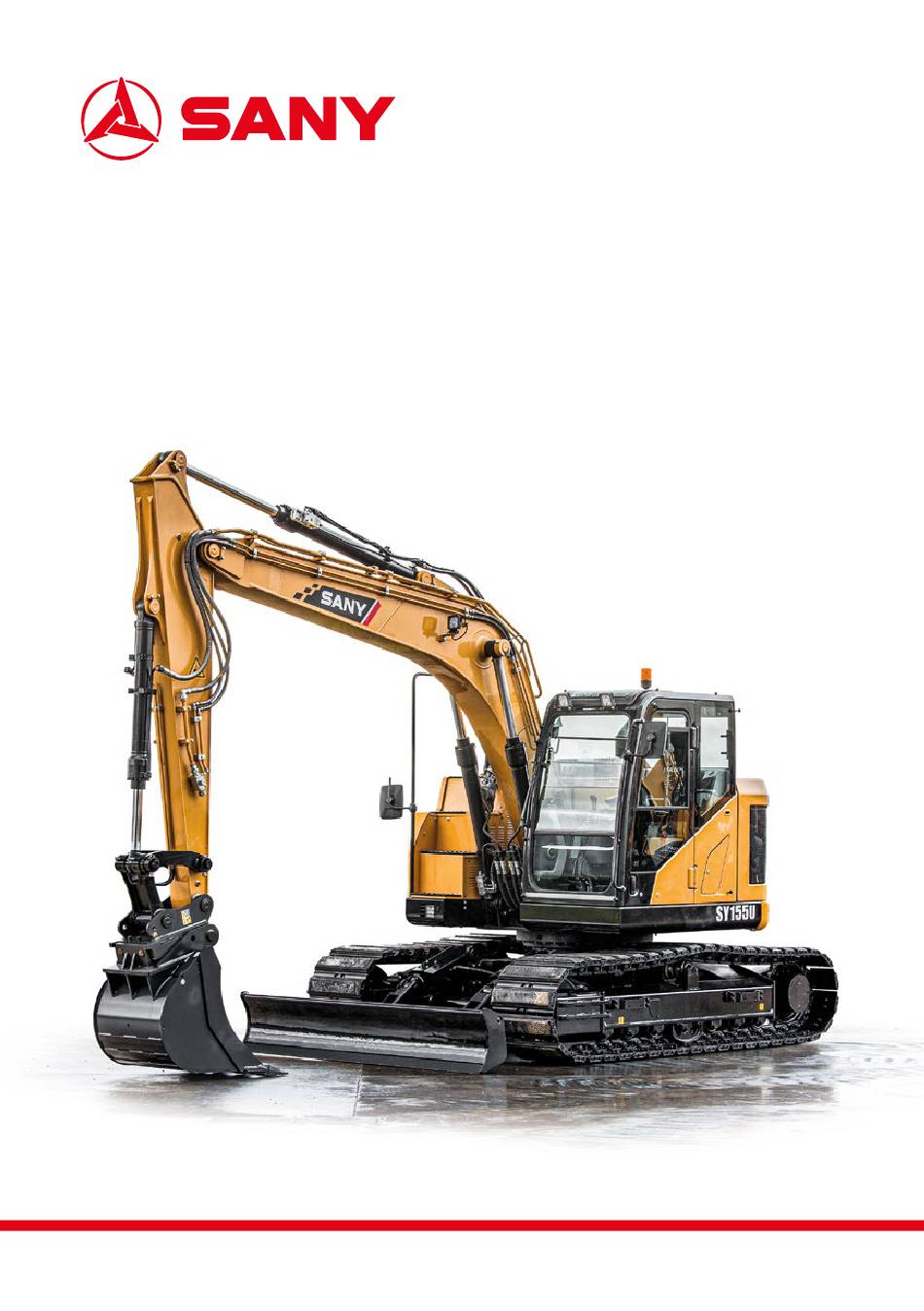

- Page 1 SY155U QUICK START GUIDE...
- Page 2 SY155U QUICK START GUIDE SY155U Display Error Message Machine Emergency Stop Active GPS Active Date And Time Tool Selection Display DEF Level Gauge Engine Speed (RPM) Engine Coolant Temperature Camera Display Work Mode Throttle Position Fuel Gauge Work Mode Selection...
- Page 3 Display Icon Value Colour Function Grey Normal Status Green Escape Mode Engine Power Limited Grey Normal Status Green Automatic Regeneration Yellow Manual Regeneration Required Yellow Manual Regeneration in Progress Engine Torque Alarm Primary Limitation of Engine Torque Ultimate Limitation of Engine Torque Grey Normal Status Heat...
-
Page 4: Work Modes
SY155U QUICK START GUIDE Work Modes The machine work mode is enabled by selecting the desired mode on the soft keypad at the bottom of the display. Press the Mode Select button to cycle through options. Work Mode Operation Standard / Normal operation. -
Page 5: Exhaust Regeneration
Exhaust Regeneration The machine will run an auto regen as required to clear soot from the exhaust system. For the regen to commence the machine must meet certain parameters with regards to temperature. When the Auto Regen light illuminates continue to work the machine normally until the regen has completed. -
Page 6: Manual Regeneration
SY155U QUICK START GUIDE Manual Regeneration A manual regeneration is only available if the machine requests one. It will only do so if automatic regenerations have been inhibited or cancelled. 01 The two 02 To carry out a 03 Once the regen has... -
Page 7: Tool Selection
Tool Selection To enter the tool select menu, press and hold the Auto Idle button on the bottom of the display for 3 seconds. Select the tool you require by navigating up and down with the soft keys on the bottom of the display. -
Page 8: Tool Setup
SY155U QUICK START GUIDE Tool Setup 01 To access tool flow 02 The second picture 03 To adjust the Flow, setup, will come up on the display. Hold your AUX Switch machine slider in the ignition on, engine AUX1+： direction required. - Page 9 Quick Hitch Process To access the quick hitch page, press and hold the Travel Speed selection button for 5 seconds. The quick coupler activation screen will appear. To unlock the hitch, first you must; Activate the quick hitch by pressing the Activate Quick Coupler soft key (1) (buzzer will sound).
-
Page 10: Softkey Pad
SY155U QUICK START GUIDE Softkey Pad Start-Stop Switch Overload Alarm Switch (Optional) Alarm Switch Amber Beacon Switch Front Work Lights Switch Rear Work Light Switch (Not Equipped) Auto-deceleration Switch Regeneration Inhibit Switch Aux Flow Increase 10. Aux Flow Decrease 11. Not Used 12. - Page 11 Arm Rest Ignition Switch Hydraulic Dozer Blade Travel Speed Selection Button Windscreen Wiper • First Position, Intermittent Wipe • Second Position, Constant Wipe Windscreen Wash Engine Speed Throttle Dial...
- Page 12 SY155U QUICK START GUIDE Service Intervals Guide Regular inspection Maintenance Work Water build-up in the Fuel System Daily Inspection Engine Oil Lubrication Points Engine Oil Every 250hrs Air Filter Climate Control Engine Oil Filter Engine Oil Swing Motor Oil Final Drive Motor Oil...
- Page 13 Every (hr) After (hr) Maintenance Steps 50hrs 100hrs 500hrs 8hrs 50hrs 100hrs 200hrs 250hrs 500hrs 1000hrs 2000hrs 2500hrs 4000hrs Final Drive Motor Oil Boom Swing Pin Boom Swing Cylinder Pin Boom Pins Boom Socket-head Bolts Boom / Arm Connecting Pin Arm Cylinder Pin Arm / Bucket Connecting Pin Bucket Socket-head Pins...
- Page 14 SY155U Quick Start Guide...
