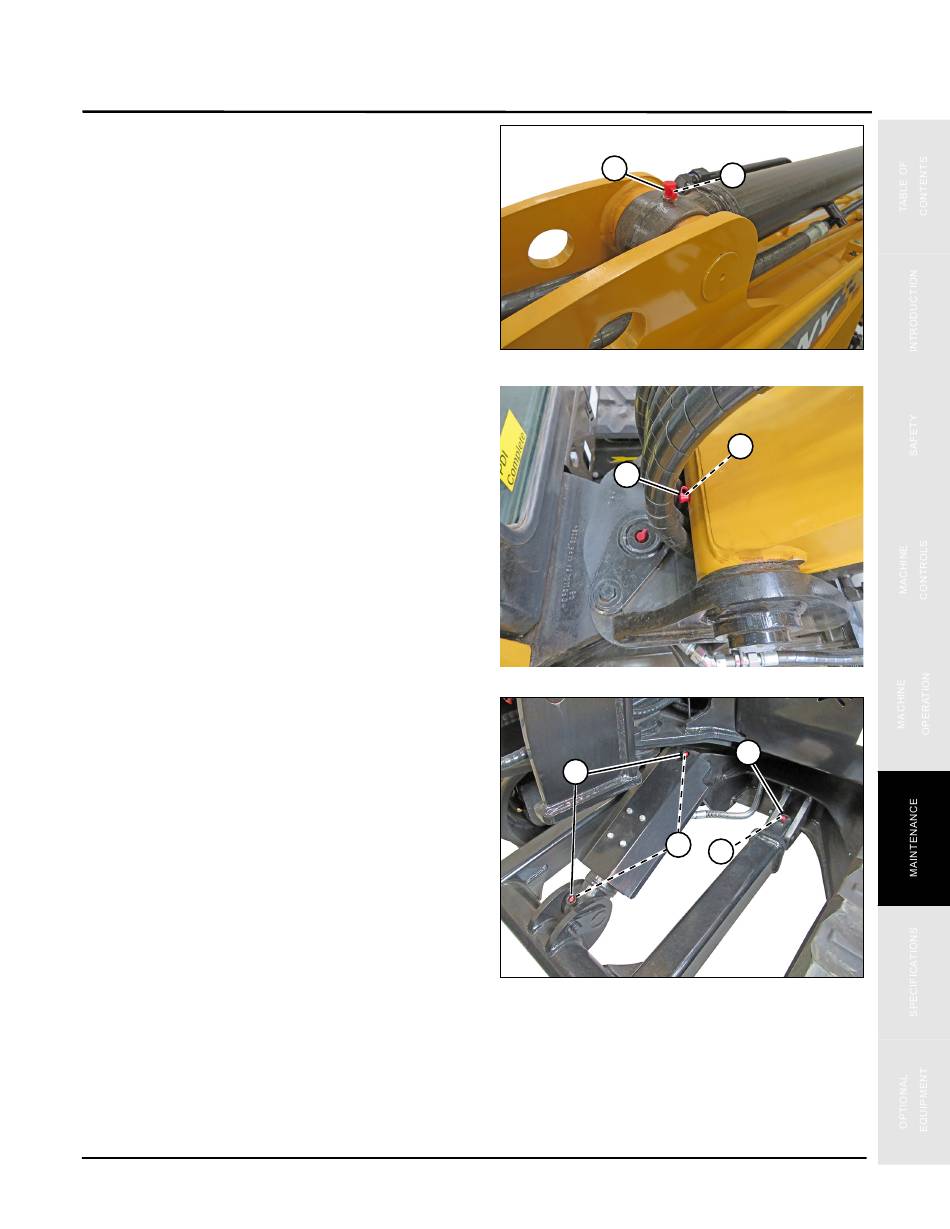

Arm Cylinder Base End Pin

1. Remove the grease fitting cap (1) from the arm cylin-
der base end pin grease fitting (2).
2. Grease the arm cylinder base end pin grease fitting.
NOTE: Wipe excess grease from around the grease
fitting.
3. Install the grease fitting cap.

Boom Pin

1. Remove the grease fitting cap (1) from the boom pin
grease fitting (2).
2. Grease the boom pin grease fitting.
NOTE: Wipe excess grease from around the grease
fitting.
3. Install the grease fitting cap.
Dozer Blade Linkage Pins and Dozer Blade Cylinder
End Pins
NOTE: Only one dozer blade linkage pin grease
fitting cap is shown.
1. Remove the grease fitting caps (1) from the dozer
blade cylinder end pins (2) and the dozer blade linkage
pins. (3)
2. Grease the dozer blade cylinder end pins and the dozer
blade linkage pins grease fittings.
NOTE: Wipe excess grease from around the grease
fittings.
3. Install the grease fitting caps.
SANY
Fig. 5-86
Fig. 5-87
Fig. 5-88
Operation and Maintenance Manual — 0120
1
2
2
1
1
1
2
3
Maintenance
0004633
0004634
0003176
5-77
