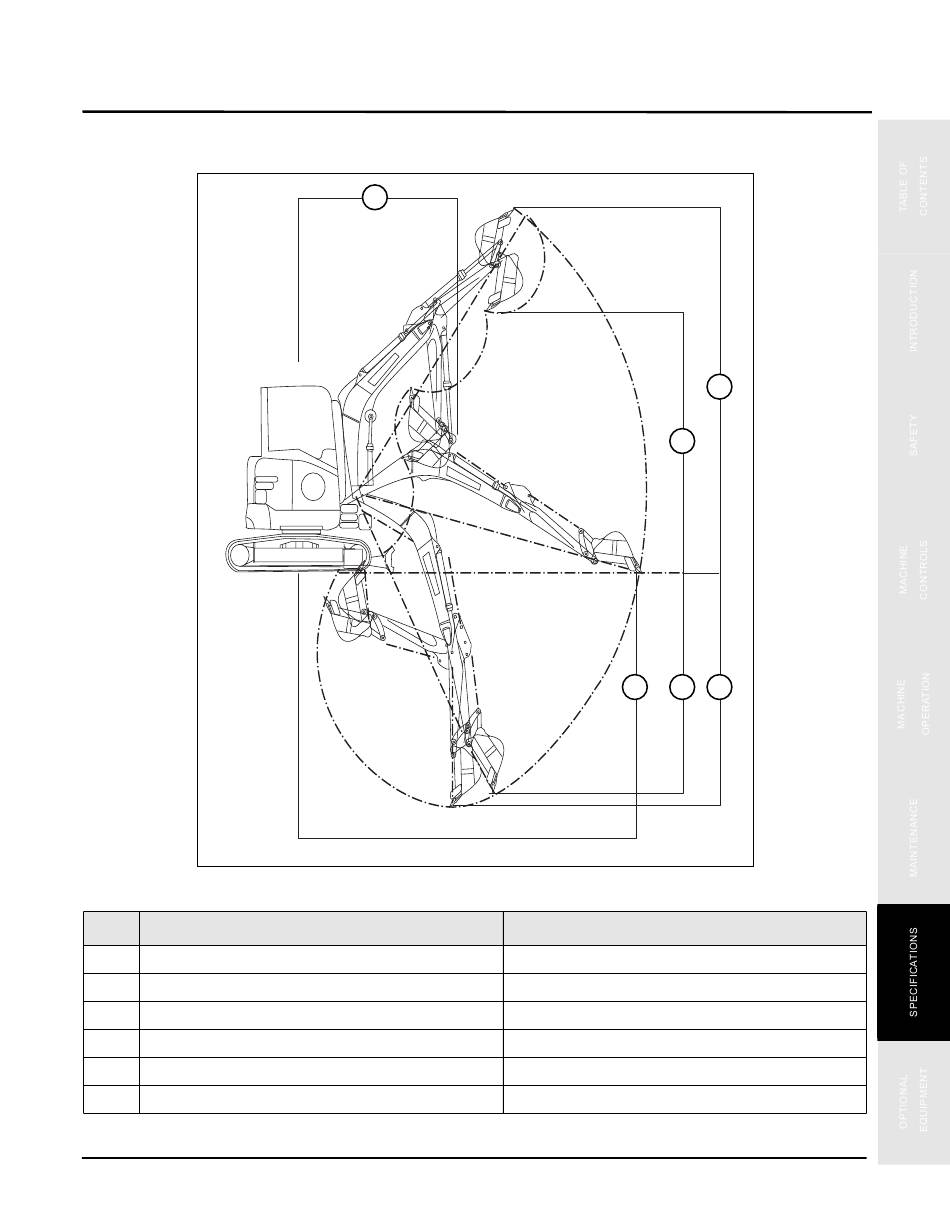

WORKING RANGES

Fig. 6-2
Item
1 Minimum swing radius
2 Maximum digging height
3 Maximum dumping height
4 Maximum digging depth
5 Maximum vertical wall digging depth
6 Maximum reach at ground level
SANY
1
Description
Operation and Maintenance Manual — 0120
Specifications
2
3
6 5 4
0003762
Dimensions
8 ft. 1 in. (2475 mm)
15 ft. 11 in. (4855 mm)
11 ft. 4 in. (3460 mm)
10 ft. 2 in. (3105 mm)
8 ft. 10 in. (2700 mm)
17 ft. 11 in. (5465 mm)
6-3
