ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module

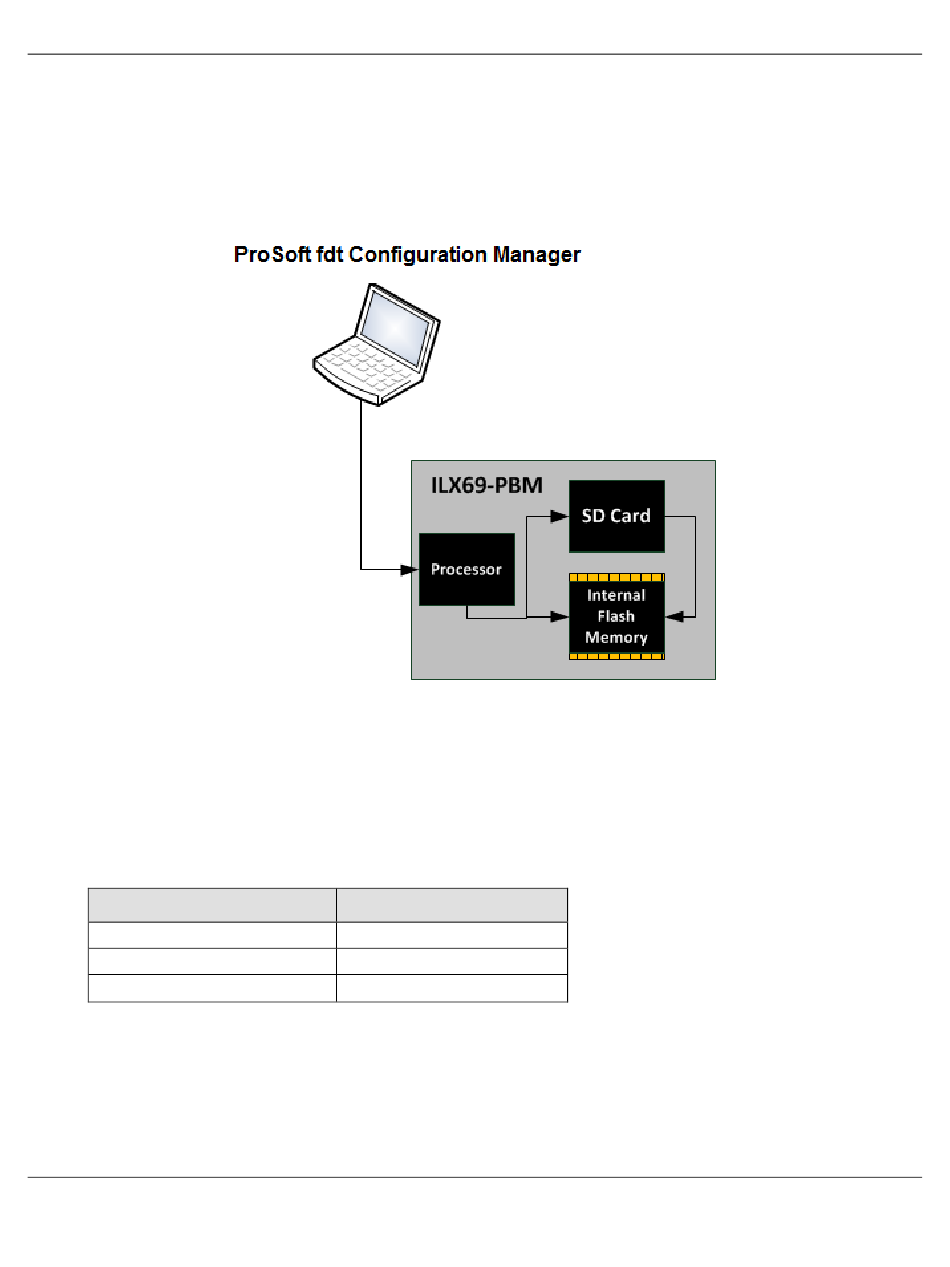

The configuration and diagnostics of the ILX69-PBM is done using the ProSoft fdt
Configuration Manager software over an Ethernet connection. The configuration is
stored permanently using the on-board FLASH memory of the ILX69-PBM and is
available immediately on power up. ProSoft fdt Configuration Manager allows you to
backup the configuration project files from the internal flash memory to an inserted SD
memory card. Basic diagnostics of the ILX69-PBM can be done via its Webpage.
1.3

Reference Systems

The firmware of the ILX69-PBM was developed and tested with the following
CompactLogix™ controller types and firmware revisions.
CompactLogix System
Controller
CompactLogix™ 1769-L23
CompactLogix™ 1769-L32E
CompactLogix™ 1769-L36ERM
ProSoft Technology, Inc.
Firmware
V17.05
V20.13
V21.11
