Goodrive20-UL Series VFD
Serial
Name
No.
Keypad
5
port
Analog
6
potentio
meter

4.2 Keypad display

The keypad of Goodrive20-UL series VFD displays the stopped-state parameters,
running-state parameters, function parameter editing status, and fault alarm status.

4.2.1 Displaying stopped-state parameters

When the VFD is in stopped state, the keypad displays stopped-state parameters.
In the stopped state, parameters in various states can be displayed. You can determine which

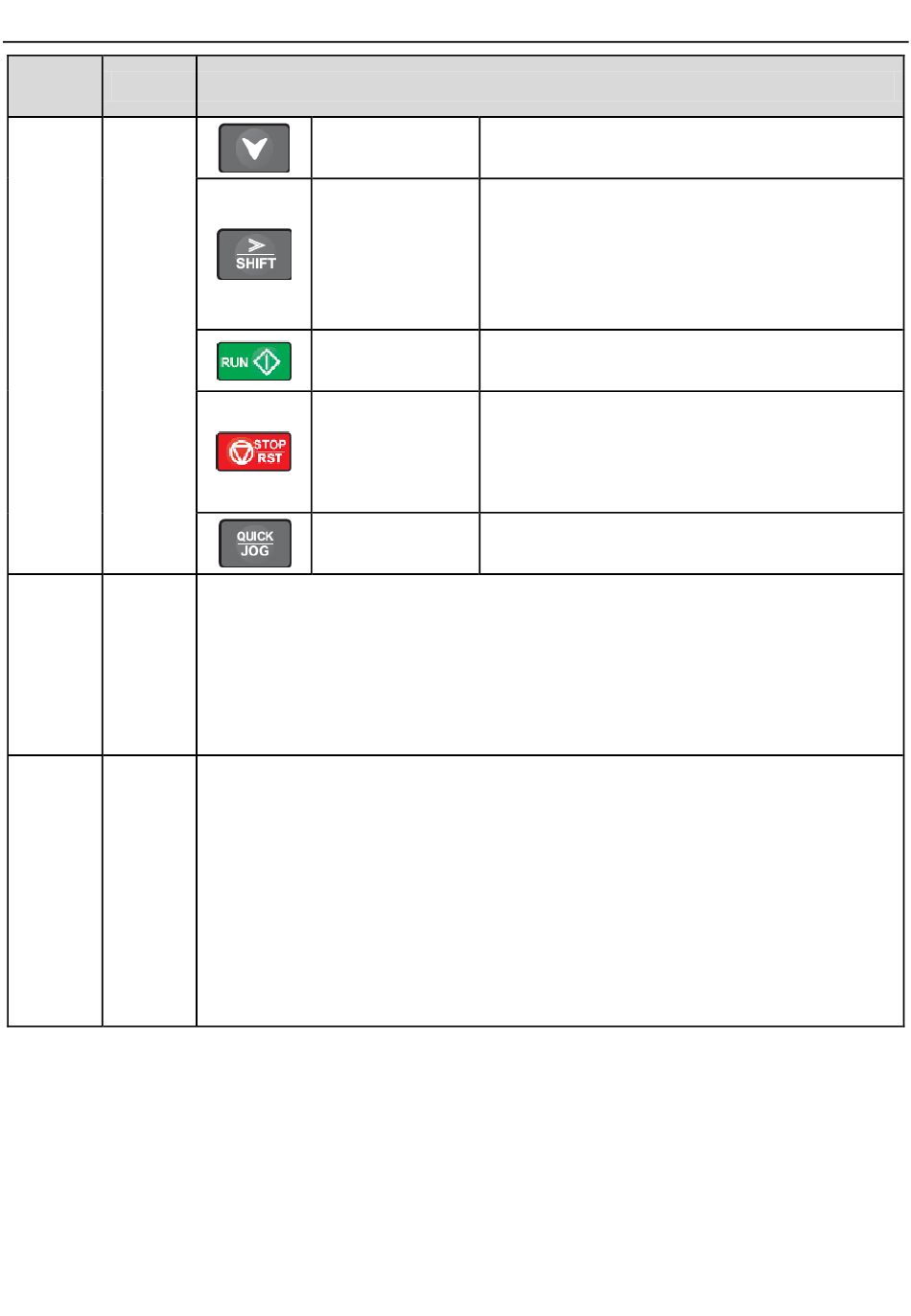

DOWN key
Right-shift key
Run key
Stop/
Reset key
Quick key
External keypad port. When the external keypad with the function of
parameter copying is valid, the local keypad LED is off; When the
external keypad without the function of parameter copying is valid, the
local and external keypad LEDs are on.
Note: Only the external keypad which has the function of parameters
copy owns the function of parameters copy, other keypads do not have.
AI1, When the external common keypad (without the function of
parameter copy) is valid, the difference between the local keypad AI1
and the external keypad AI1 is:
When the external keypad AI1 is set to the Min. value, the local keypad
AI1 will be valid and P17.19 will be the voltage of the local keypad AI1;
otherwise, the external keypad AI1 will be valid and P17.19 will be the
voltage of the external keypad AI1.
Note: If the external keypad AI1 is frequency reference source, adjust
the local potentiometer AI1 to 0V/0mA before starting the VFD.
Description
Decrease
progressively
Move right to select the displaying
parameter circularly in stopping and
running mode.
Select the parameter modifying digit
during the parameter modification
This key is used to operate on the VFD in
key operation mode
This key is used to stop in running state
and it is limited by function code P07.04
This key is used to reset all control modes
in the fault alarm state
The function of this key is confirmed by
function code P07.02.
-23-
Keypad operation
data or function code
