INVT Goodrive20-UL VFD Series Operation Manual page 146

Goodrive20-UL Series VFD
Model
GD20-0R4G-S12
GD20-0R7G-S12
GD20-1R1G-S12
GD20-0R4G-S2-UL
GD20-0R7G-S2-UL
GD20-1R5G-S2-UL
GD20-2R2G-S2-UL
GD20-0R4G-2-UL
GD20-0R7G-2-UL
GD20-0R7G-4-UL
GD20-1R5G-4-UL
GD20-2R2G-4-UL
Rail mounting (unit: mm)
W1 H1 H3
80.0 185 35.4
80.0 185 35.4
80.0 185 35.4
80.0 160.0 35.4
80.0 160.0 35.4
80.0 185.0 35.4
80.0 185.0 35.4
80.0 185.0 35.4
80.0 185.0 35.4
80.0 185.0 35.4
80.0 185.0 35.4
80.0 185.0 35.4
H4 D1
36.6 140.5 137.3
36.6 140.5 137.3
36.6 140.5 137.3
36.6 123.5 120.3
36.6 123.5 120.3
36.6 140.5 137.3
36.6 140.5 137.3
36.6 140.5 137.3
36.6 140.5 137.3
36.6 140.5 137.3
36.6 140.5 137.3
36.6 140.5 137.3
-141-

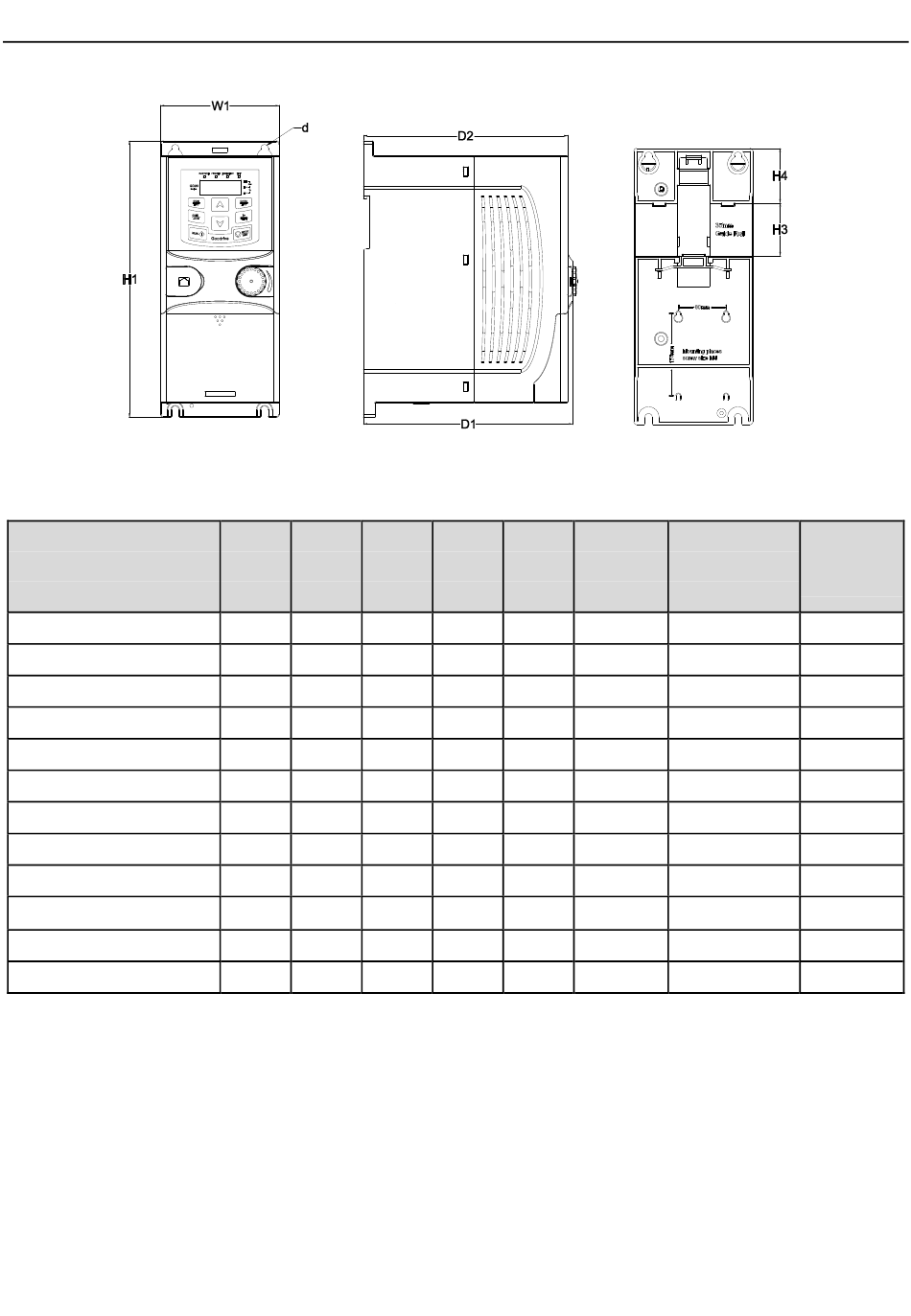

Dimension drawings
Mounting
D2 hole
diameter (d)
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Ø 5
Weight
(kg)
0.9
0.9
1.2
0.9
0.9
1.2
1.2
1
1
1
1
1
