Goodrive20-UL Series VFD
Dimension drawings
Appendix B Dimension drawings
Dimension drawings of the Goodrive20-UL are shown as follows. The dimensions are given in
mm.

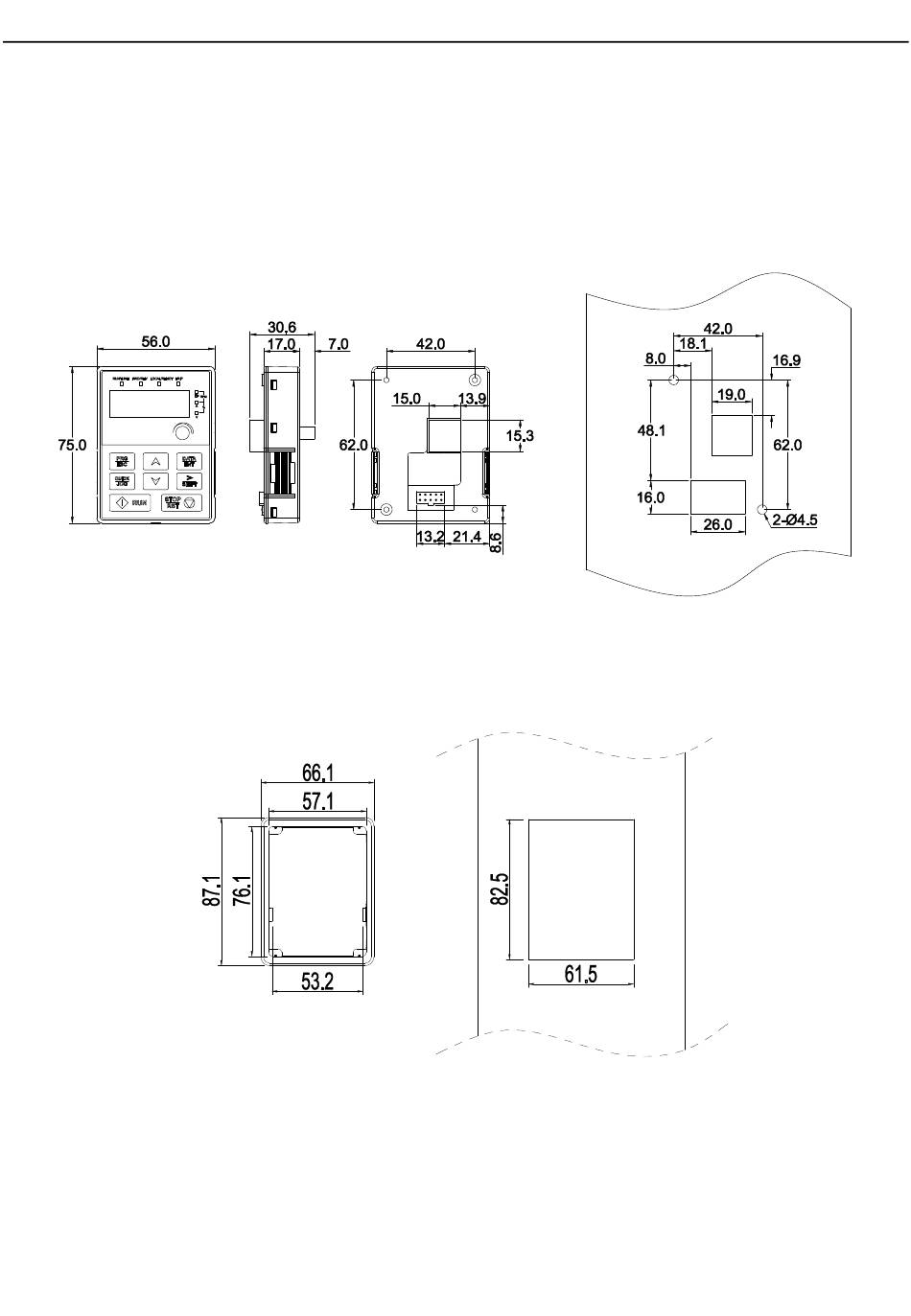

B.1 External keypad (optional) structure
Hole drawing
Overall drawing
The external keypad can be mounted on the installation bracket and the bracket is optional.
Installation bracket
Installation dimension
-139-
