Goodrive20-UL Series VFD
GD20-0R7G-2-UL
GD20-0R7G-4-UL
GD20-1R5G-4-UL
GD20-2R2G-4-UL
Note:
 The input EMI meet the requirement of C3 after adding input filters.
 Above options are external, the customer should indicate when purchasing.
 Do not connect C3 filters in IT power system.

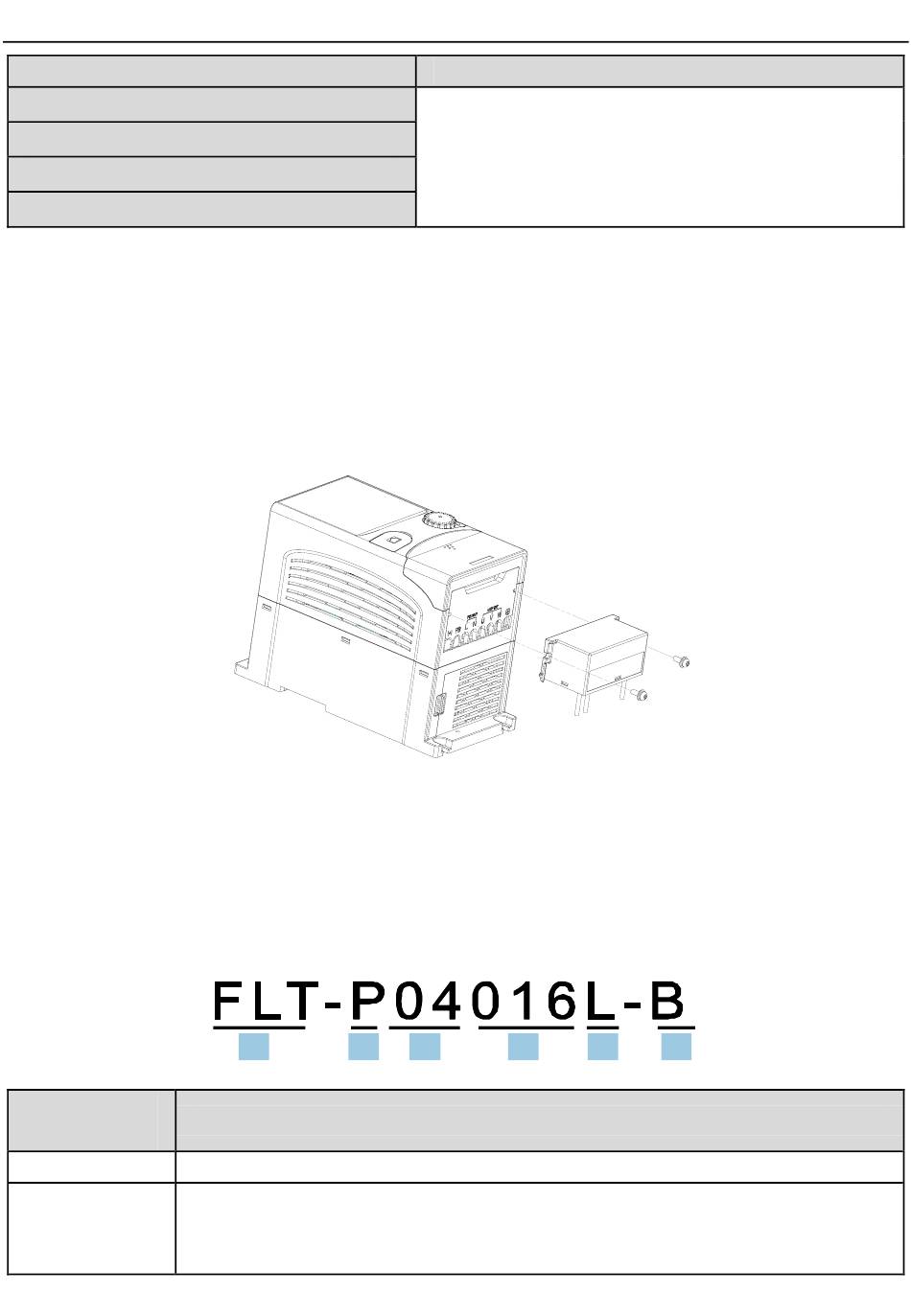

C.6.3 Installation instruction for C3 filter
The installation procedures for C3 filter are as below:
1. Connect the filter cable to the corresponding input terminal of the VFD according to the
label.
2. Fix the filter onto the VFD with M3 x 10 screws (as shown in above picture).
C.6.4 C2 Filter type instruction
Field
identifier
A
B
Model
A
FLT: Name of the VFD filter series
Filter type
P: Power input filter
L: Output filter
B C D
Field description
-149-
Optional peripheral accessories
Input filter
E F
