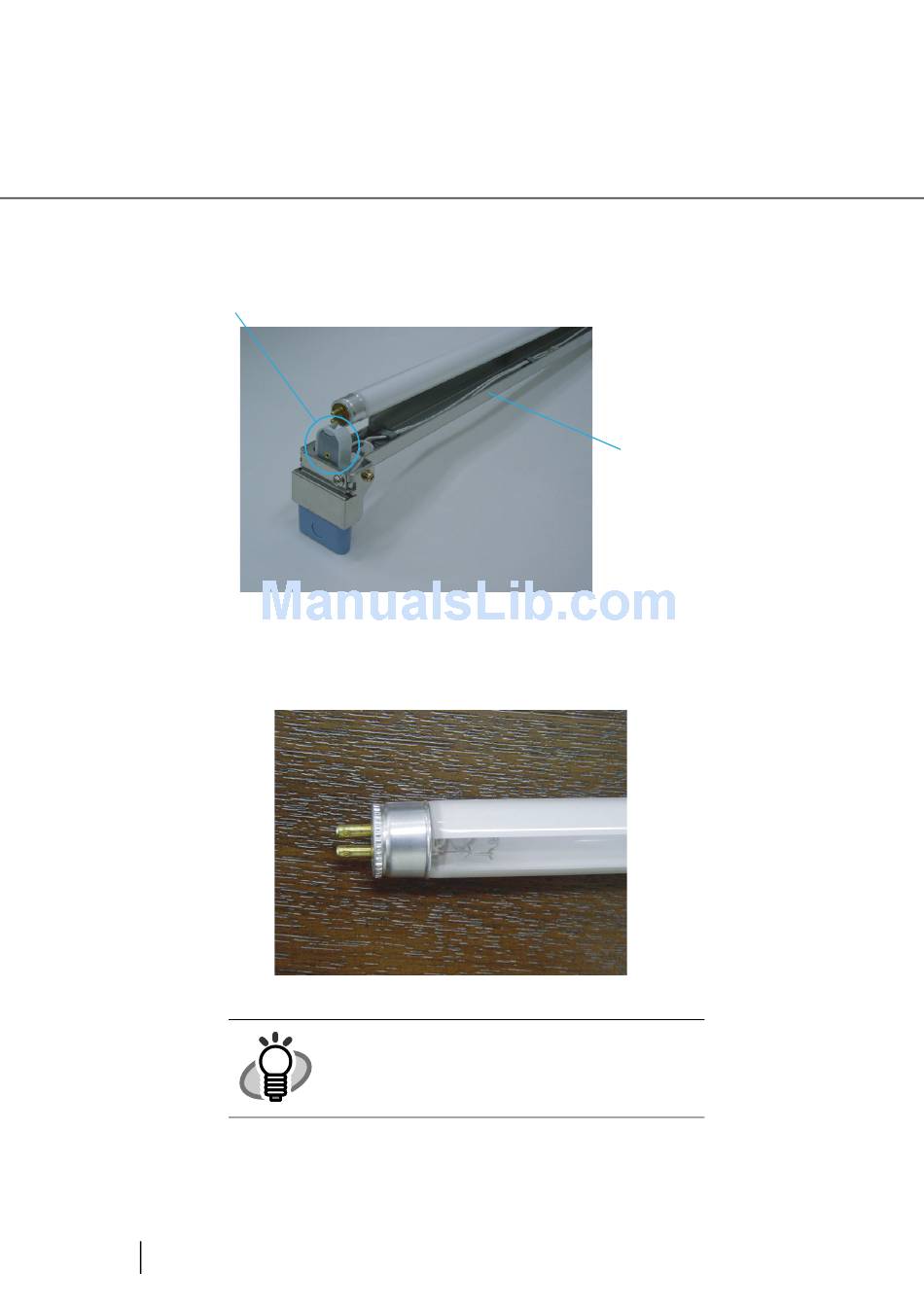

3. Rotate the Lamp a half turn so that the terminals on each end align with the slot on
the Lamp socket and remove the Lamp from the unit.
Lamp socket
4. Attach a new Lamp following the reverse order of old lamp removal. Make sure that
the clear portion of the Lamp faces up.
HINT
104
4.7 Replacing the Back-side Lamp
If the Lamp is installed with the clear portion fac-
ing upward, an error due to insufficient light
occurs.
Backside lamp unit
