- Page 1 P3PC-E377-01XA fi-486PRFR Imprinter Operator’s Guide Operator’s Guide English QTUV Q S QTUV Q S QTUV Q S QTUV Q S Japanese...
- Page 3 Imprinter Operator’s Guide Operator’s Guide English...

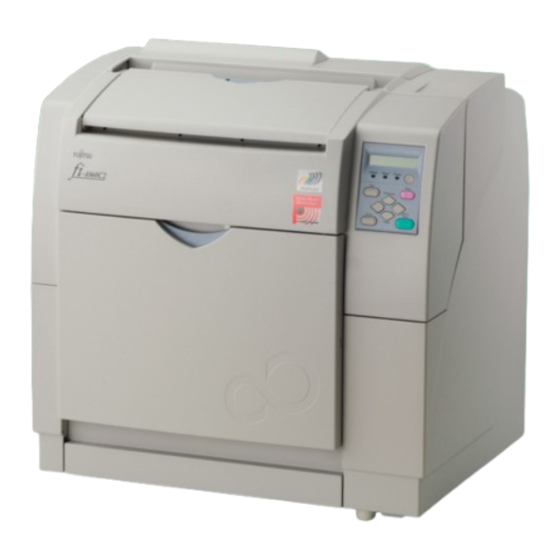

- Page 5 Thank you for purchasing the fi-486PRFR Imprinter. The fi-486PRFR is the fi-4860C image scanner option. The fi-486PRFR and the fi-486PRRE can be installed in the fi-4860C image scanner together.However, they cannot be used at a time.Either fi-486PRRE or fi-486PRFR can be used during scanning.
- Page 6 6. ERROR MESSAGES This chapter explains the error messages and the recovery process. 7. SPECIFICATIONS This chapter describes the specifications of the fi-486PRFR imprinter option. This manual provides necessary information to make the best use of the fi-486PRFR. August, 2002...
- Page 7 Revisions FCC declaration This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 8 International E Program NERGY TAR® As an NERGY TAR® Partner, PFU LIMITED has determined that this product meets the NERGY TAR® guidelines for energy efficiency. The International NERGY TAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment.
- Page 9 Preface Safety Precautions This manual describes important details for ensuring the safe and correct use of this product. Thoroughly read this manual before you start to use this product. In particular, be sure to read and fully understand the Safety Precautions described in this manual before you use this product.
- Page 10 Symbols Used In This Manual This manual uses the following symbols in explanations in addition to warning indications. This symbol alerts operators to particularly important information. ATTENTION Be sure to read this information. This symbol alerts operators to helpful advice regarding opera- tion.
-
Page 11: Safety Precautions
Safety Precautions WARNING The following describes important warnings described in this manual. Do not install in locations subject to oil smoke, steam, humidity, and dust. Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust. Doing so might cause fire or electric shock. Do not use the scanner if you smell strange odor. - Page 12 Do not allow liquids to get inside the scanner. Do not insert or drop foreign metal objects in to the scanner. Do not scan wet document or document with paper clips. Do not splash or allow the scanner to get wet. If foreign objects (water, small metal objects, liquids, etc.) get inside the scanner, immediately press down the power button to turn off the scanner and disconnect the power plug from the power outlet.
- Page 13 CAUTION The following describes important cautions described in this manual. Protect the scanner from static electricity. Install the scanner away from strong magnetic fields and other sources of noise. Also, protect the scanner from static electricity as this might cause the scanner to malfunction. Do not use aerosol sprays near the scanner.
- Page 14 Fujitsu Group Offices Please send your comments on this manual or on Fujitsu products to the following addresses: FUJITSU COMPUTER PRODUCTS OF FUJITSU CANADA, INC. AMERICA, INC. 2800 Matheson Boulevard East, 2904 Orchard Parkway, San Jose, CA Mississauga, Ontario L4W 4X5, Canada 95134-2009, U.S.A.
- Page 15 FUJITSU TAIWAN LTD. FUJITSU HONG KONG LTD. 19th Fl., No39, Sec.1,Chung-hwa Rd., 10/F., Lincoln House, 979 King's Road, Taipei, Taiwan R.O.C. Taikoo Place, Island East, Hong Kong Phone: (886-2)2311-2255 Phone: (852)2827-5780 Fax: (886-2)2311-2277 Fax: (852)2827-4724 Website: http://fw.fujitsu.com/ Website: http://hk.fujitsu.com/ E-mail: scanner@fujitsu.com.hk FUJITSU SYSTEMS BUSINESS FUJITSU KOREA LTD.
- Page 16 User's Manual of the scanner application you are using. Furthermore, the screenshots in this manual are for the FUJITSU TWAIN32 scanner driver and the Image Capturing Software Utilities "ScandAll 21" for ®...
-
Page 17: Table Of Contents
CONTENTS 1 PREPARATIONS ........... 1 Checking the Contents of the Imprinter Package ......2 Outer View ..................3 2 BASIC OPERATIONS ........5 Installing the Print Cartridge ..............6 Adjusting Print Position ..............9 Setting Imprinter ................11 3 DAILY CARE ..........13 4 REPLACING PRINT CARTRIDGE ....19 Replacing the Print Cartridge ............20 Reset the remaining ink counter of imprinter ........23 5 PRECAUTION .......... -
Page 19: Preparations
PREPARATIONS This chapter explains how to prepare the imprinter, fi-486PRFR for use. 1.1 Checking the Contents of the Imprinter Package ....2 1.2 Outer View................3... -
Page 20: Checking The Contents Of The Imprinter Package
Imprinter Package Please confirm that all of the following parts are included in the package. If any parts are missing or defective, contact the FUJITSU Scanner dealer where you purchased the product. Handle the imprinter and the accessories with care. -
Page 21: Outer View
1.2 Outer View This section shows the outer view of the fi-486PRFR. PCB unit Glass sheet guide Imprinter Lever Print cartridge holder 1.2 Outer View... - Page 22 1.2 Outer View...
-
Page 23: Basic Operations
BASIC OPERATIONS This chapter describes the installation of the Print cartridge, the adjustment of print position, and the setup of the imprinter. 2.1 Installing the Print Cartridge ..........6 2.2 Adjusting Print Position............9 2.3 Setting Imprinter..............11... -
Page 24: Installing The Print Cartridge
2.1 Installing the Print Cartridge Installation of the Print cartridge is explained in the following. 1) Press the Power button on the scanner operator panel and turn off the power. 2) Open the Hopper if it is closed (retracted). Hopper 3) Remove documents from the stacker. - Page 25 4) Open the imprinter cover. Imprinter cover 5) Move the Print cartridge holder to left-end, the cartridge replace position. 2.1 Installing the Print Cartridge...
- Page 26 6) When the lever is closed, rotate the lever to open before placing the print cartridge. Insert the cartridge with its Tab positioned toward left side and install it. HINT 7) Turn the lever on the print cartridge to fix it. 8) Close the imprinter cover.
-
Page 27: Adjusting Print Position
2.2 Adjusting Print Position Adjust the print position. 1) Open the Hopper if it is closed (retracted). Hopper 2) Remove documents from the stacker. Pull up the lever on the right front of the Upper transport unit and then raise it. Make sure that the Upper transport unit is locked before you put your hands inside of the scanner. - Page 28 3) Open the imprinter cover. Imprinter cover 4) Place the print alignment mark to the position where you want to print. Print position sticker The characters will be printed to the position of the align- ment allow of print position sticker. HINT 5) Close the imprinter cover.
-
Page 29: Setting Imprinter
The following screen is displayed. 3) Enable Imprinter. Setup the position of printing and the print string. Refer to "FUJITSU TWAIN32 scanner driver User’s Guide" stored in the scanner driver (CD-ROM) for the details of the setup. 4) Press [OK] button to confirm the setup. - Page 30 2.3 Setting Imprinter...
-
Page 31: Daily Care
DAILY CARE This chapter explains how to clean the fi-486PRFR, the fi-486PRRE, and nozzle surface of the Print cartridge. When you do the cleaning, turn off the scanner power, and unplug the power CAUTION cord from the outlet. If cleaning is done with power turned on, it may cause electric shock or imprinter failure. - Page 32 Clean the fi-486PRFR and the nozzle surface of the Print cartridge. Cleaning the fi-486PRFR As the fi-486PRFR prints the number on a document before reading operation, ink can spatter over the glass and paper path of the Upper transport unit, and vicinity of the print cartridge holder.
- Page 33 3) Remove documents from the stacker. Pull up the lever on the right front of the Upper transport unit and then raise it. Make sure that the Upper transport unit is locked before you put your hands inside of the scanner . CAUTION Upper transport unit Lever...
- Page 34 Vicinity of the print cartridge holder 5) Lift the Upper transport unit slightly to release the safety lock, lower and close the transport unit slowly.
- Page 35 Cleaning the Nozzle Surface of the Print Cartridge Ink or stains stuck to the nozzle surface of the print cartridge or leaving the imprinter unused for a while cause poor printing of characters because of blocked emission holes in the nozzle. If your imprinter has this trouble, clean the nozzle surface of the print cartridge.
-
Page 37: Replacing Print Cartridge
REPLACING PRINT CARTRIDGE This chapter explains how to replace the Print cartridge and reset the Ink remain counter. Make sure that you turn off the scanner power and unplug the power cable from CAUTION the outlet. If the cartridge replacement is done with power turned on, it may cause electric shock or imprinter failure. -
Page 38: Replacing The Print Cartridge
4.1 Replacing the Print Cartridge Replace the Print cartridge and reset the Ink remain counter. 1) Press the Power button on the scanner operator panel and turn off the power. 2) Open the Hopper if it is closed (retracted). Hopper 3) Remove documents from the stacker. - Page 39 4) Open the imprinter cover. Imprinter cover 5) Move the Print cartridge holder to left-end, the cartridge replace position. 4.1 Replacing the Print Cartridge...
- Page 40 6) Turn the blue lever toward right and open the cartridge holder. Lever 7) Take out the Print cartridge from the holder and put the new one. Insert the cartridge with its Tab positioned toward left side and install it. HINT 8) Move the lever leftward to fix the cartridge.
-
Page 41: Reset The Remaining Ink Counter Of Imprinter
4.2 Reset the remaining ink counter of imprinter If the following message comes up, prepare the new Print cartridge. If no further printing is impossible, replace the Print cartridge and reset the Ink Remain Counter. If the Print cartridge is replaced before Print cartridge error occurs, be sure to reset the Ink remain counter. - Page 42 2) At <Screen26>, to choose to reset the ink remain counter, press (Left arrow button) and select [Reset]. Press (Enter button). Then <Screen26-1> is displayed. <Screen26-1> Not to reset, select [No] and press (Enter button). 3) At <Screen26-1>, to actually reset the counter, press (Right arrow button) and select [yes].
-
Page 43: Precaution
PRECAUTION This chapter explains the important details for ensuring the correct use of the products. - Page 44 1. When installing and replacing the Print cartridge, be careful not to insert the cartridge incorrectly. 2. When printing near the edge of paper, note that printing may go across the edge depending on the setting position of the imprinter. 3.
-
Page 45: Error Messages
If the error messages are different from the following or the ones described in "fi-4860C Operator's Guide", "Appendix 3 MESSAGES OF OPERATOR PANEL", or if you can not fix the problem, contact the FUJITSU Scanner dealer where you purchased the scanner, or an authorized FUJITSU Scanner Service Provider. - Page 46 Possible causes are as follows. Loose contact of the signal electrodes of the print cartridge. Reinsert the print cartridge in place. Print cartridge is not installed correctly. Reinsert the Print cartridge in place. In [XXXX], [Pre] or [Post] is displayed. HINT Possible causes are as follows.
-
Page 47: Specifications
SPECIFICATIONS This chapter describes the specifications of the fi-486PRFR imprinter option. - Page 48 Specification (Continued from the following page) Item Specification Printing Method Thermal inkjet printing Printed Characters Alphabet Letters : A to Z, a to z Numeric Characters : 0, 1 to 9 Symbols : ! " $ # % & ' ( ) * + , - . / : ; < = > ? @ [ ¥ ] ^ _ ‘...
- Page 49 (Continued from the previous page) Item Specification Printing Area Printable area is shown as below. Reference point A=40mm or more B=99mm or less C=5mm or more D=140.5mm or less (Max.40 columm) E=5mm or more A document with less than 80 mm length cannot ATTENTION be printed.
- Page 50 Purchasing consumables Contact FUJITSU Scanner dealer where you purchased the imprinter.
- Page 51 Operator's Guide P3PC-E377-01XA Date of issuance: August, 2002 Issuance responsibility: PFU LIMITED Printed in Japan Copying of the contents of this manual in whole or in part and copying of the scanner application is forbidden under the copyright law.
