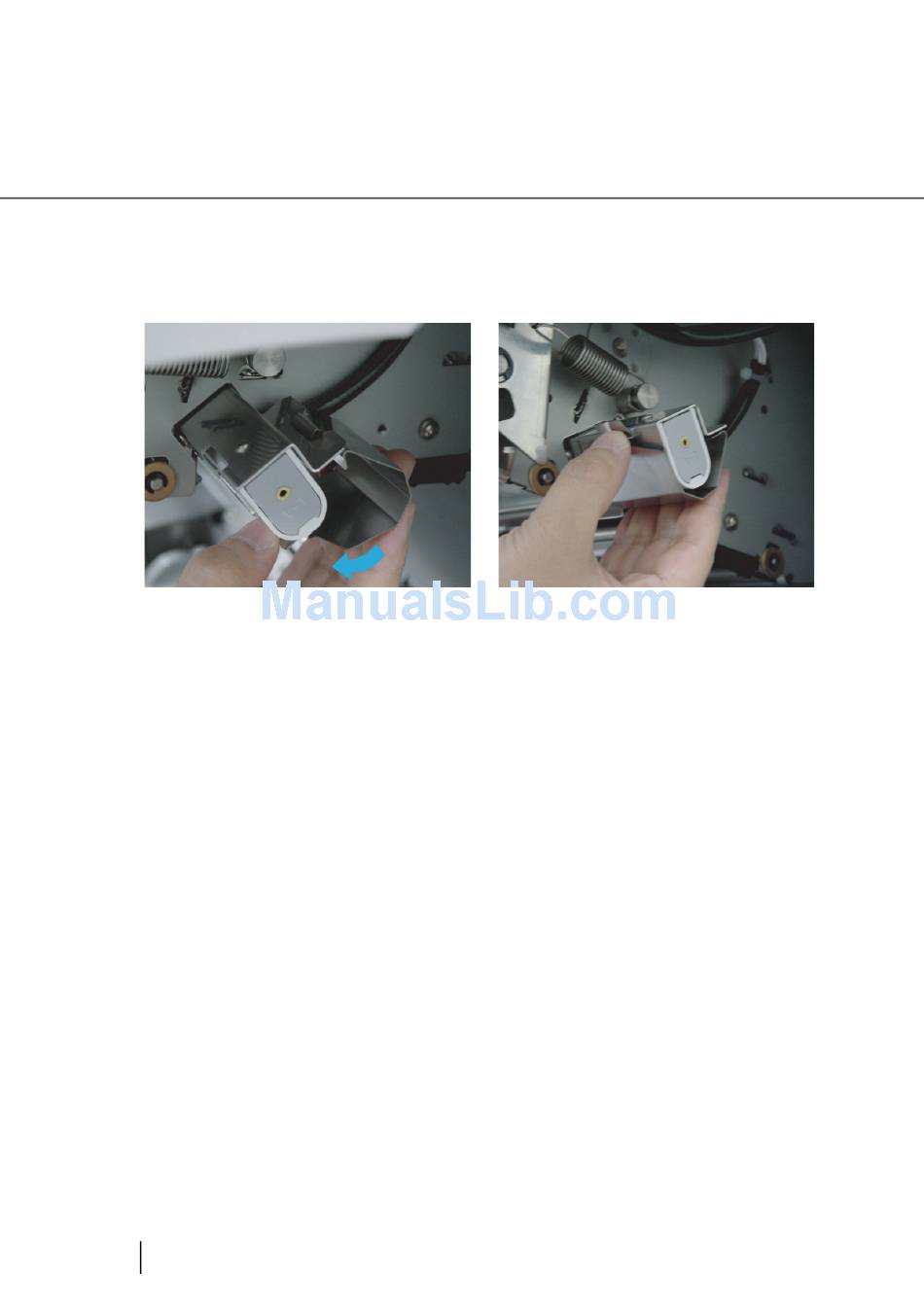

7. Attach the Lamp socket cover in the reverse order of its removal. Engage the
socket cover hook to the Lamp frame as shown below, and attach the covers.
8. Close the Glass sheet guide. Make sure that the guide is fixed firmly.
9. Lift the Upper transport unit a little to release the safety lock and then lower the
transport unit slowly.
78
3.8 Cleaning the Lamps
