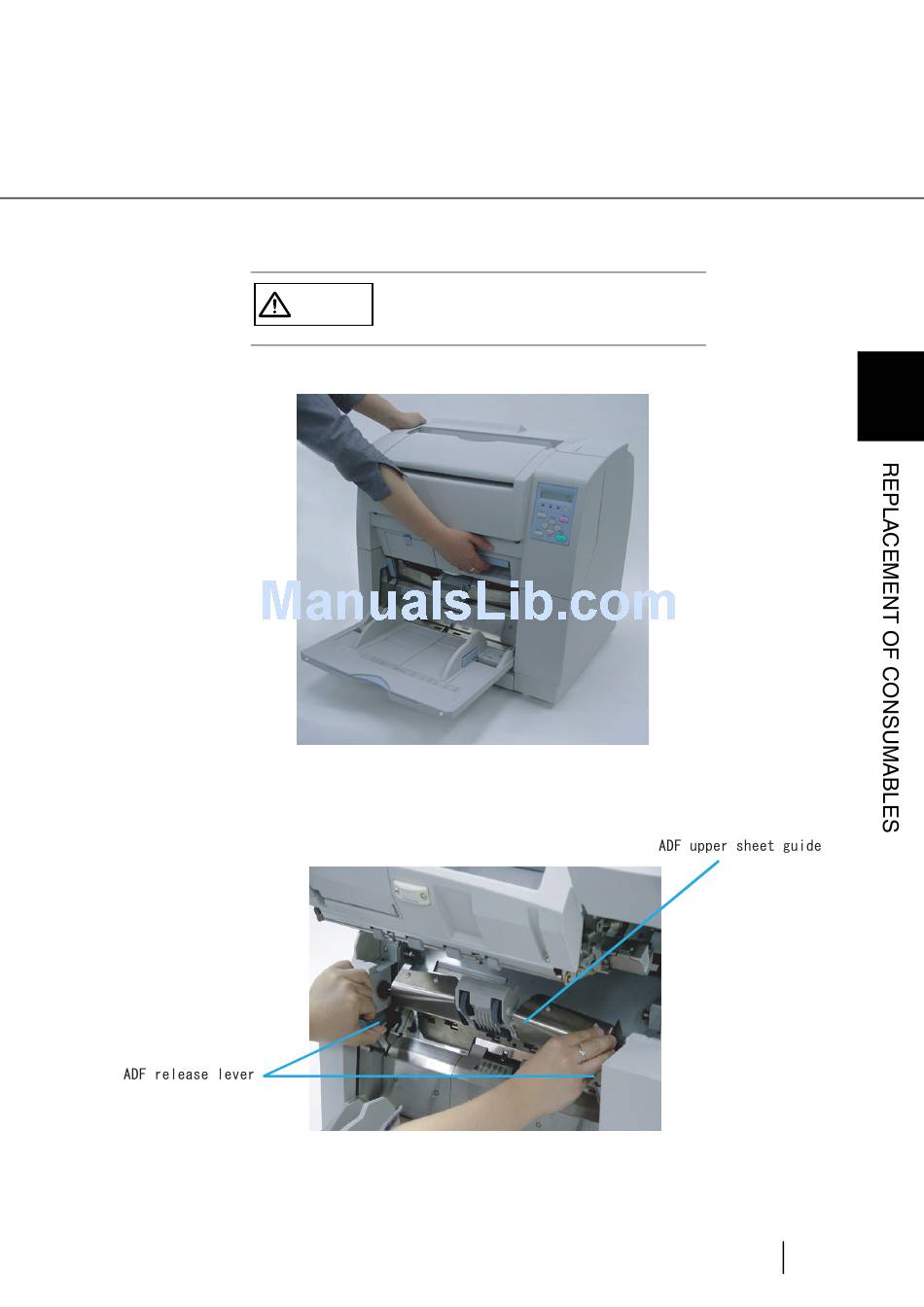

4.5 Replacing the Brake Roller Unit
1. Pull up the lever on the right front of the Upper transport unit.
2. Pull the ADF release lever toward you and lift up the ADF sheet guide.
Make sure that the Upper transport unit
is locked before you put your hands
CAUTION
inside of the scanner.
4.5 Replacing the Brake Roller Unit
4
95
