 The AOI function is available only when the camera's exposure mode is set as Once or
Continuous.
 For different models of camera, the AOI function may differ, and the actual device you
purchased shall prevail.

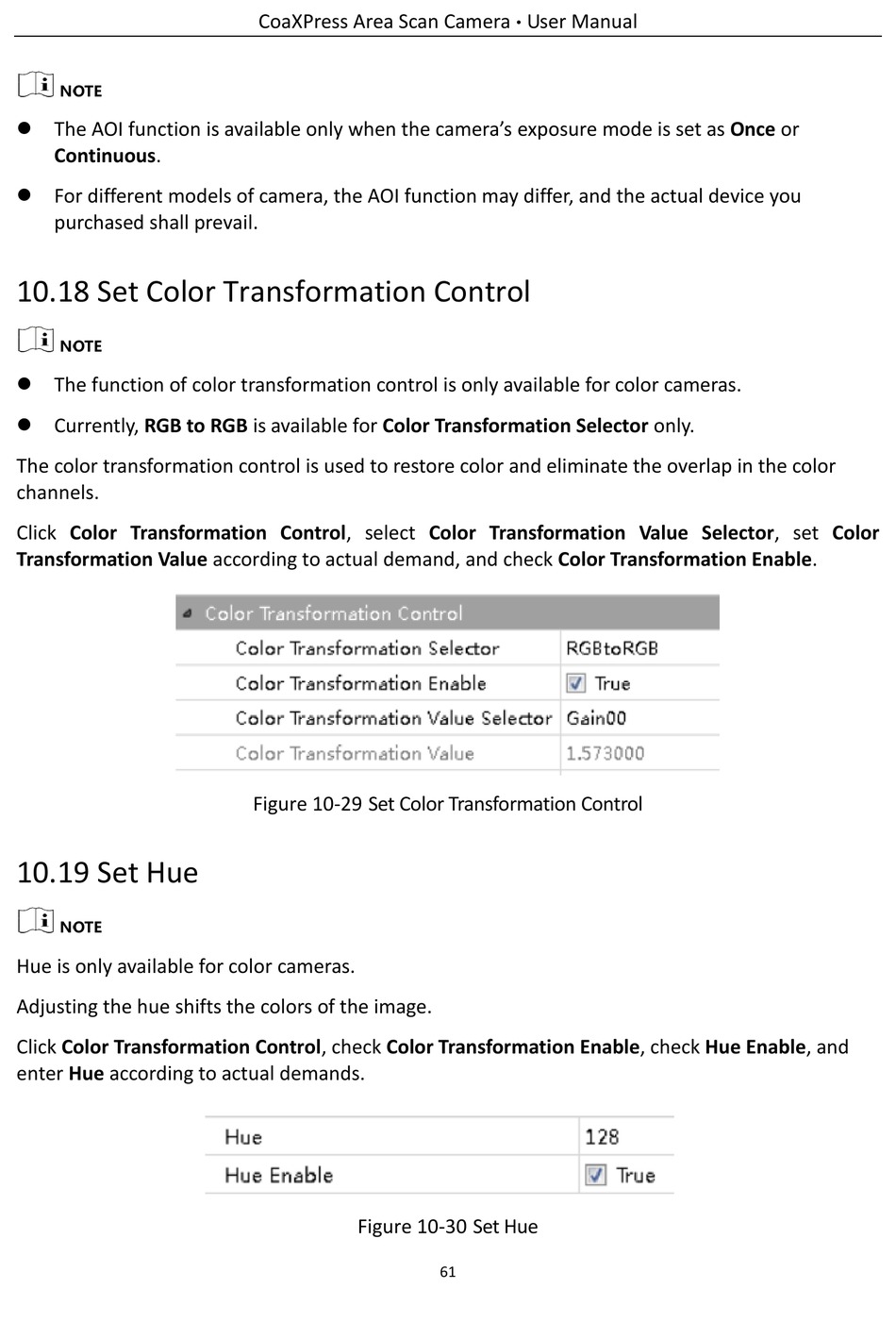

10.18 Set Color Transformation Control

 The function of color transformation control is only available for color cameras.
 Currently, RGB to RGB is available for Color Transformation Selector only.
The color transformation control is used to restore color and eliminate the overlap in the color
channels.
Click Color Transformation Control, select Color Transformation Value Selector, set Color
Transformation Value according to actual demand, and check Color Transformation Enable.

10.19 Set Hue

Hue is only available for color cameras.
Adjusting the hue shifts the colors of the image.
Click Color Transformation Control, check Color Transformation Enable, check Hue Enable, and
enter Hue according to actual demands.
CoaXPress Area Scan Camera
Figure 10-29 Set Color Transformation Control
Figure 10-30 Set Hue
