10.17 Set Color Transformation Control

Note
● The function of color transformation control is only available for color devices.
● Currently, RGB to RGB is available for Color Transformation Selector only.
● Under Bayer pixel format, the MV-CL022-40GC device does not support color
transformation control function.
After the process of the white balance, the color device's overall images will look darker,
and multiple colors may deviate from their standard values to some extent. At this time,
you need to correct these colors by multiplying correction matrix to let them back to the
standard value, so that the overall color of images is more vivid.
The color correction function is realized by multiplying each RGB component by a
correction matrix. Currently, the supported color conversion module is RGB to RGB. Two
methods are available to set color transformation control.
Method 1
Steps
1. Go to Color Transformation Control, and enable CCM Enable.
Note
The parameter of CCM enable may differ by device models.
2. Select Color Transformation Value Selector.
3. Set Color Transformation Value according to actual demand.
Method 2
Steps
1. Go to Color Transformation Control, and enable CCM Enable.
GigE Line Scan Camera User Manual

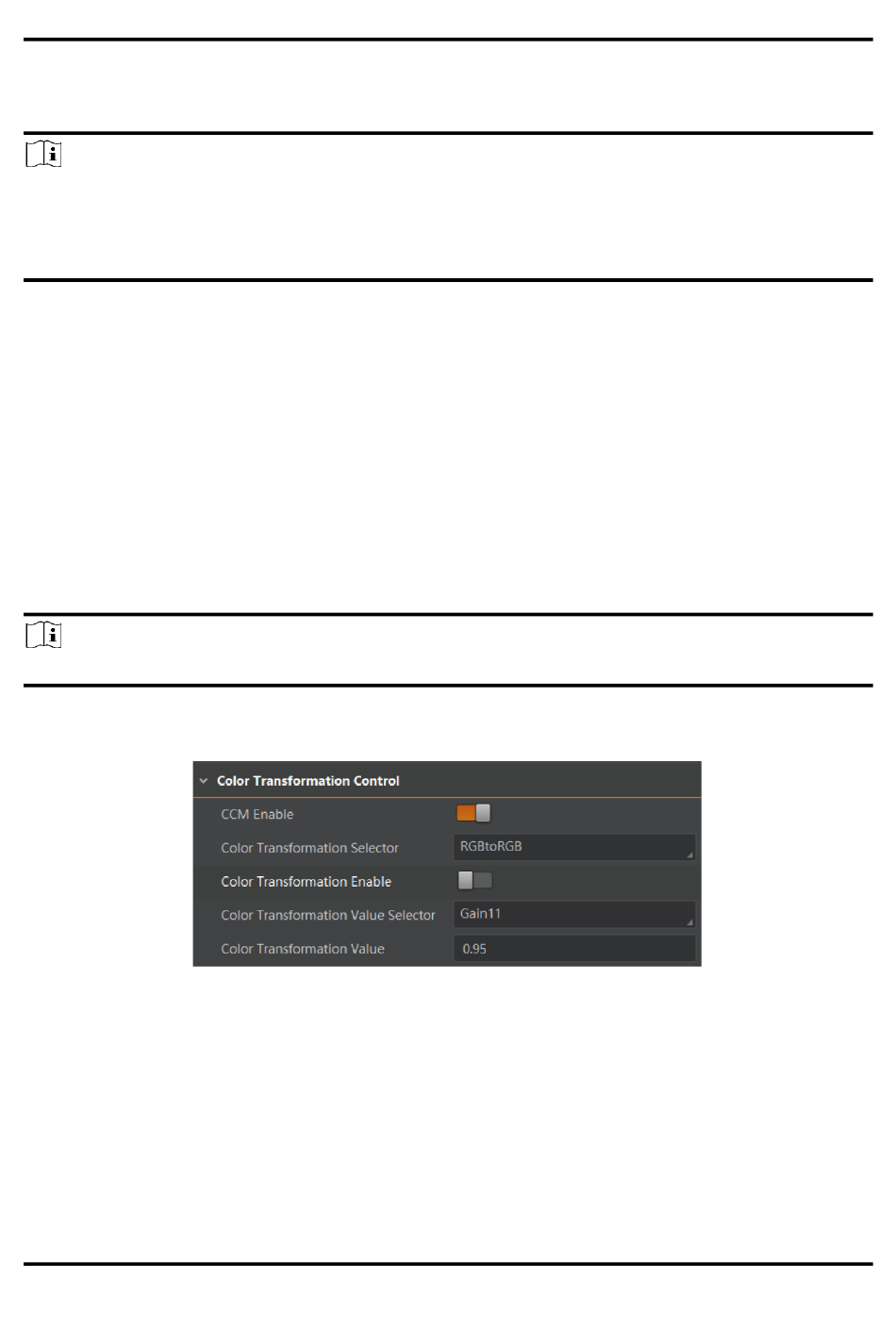

Figure 10-34 Method 1
