USB3.0 Board Level Camera User Manual
·

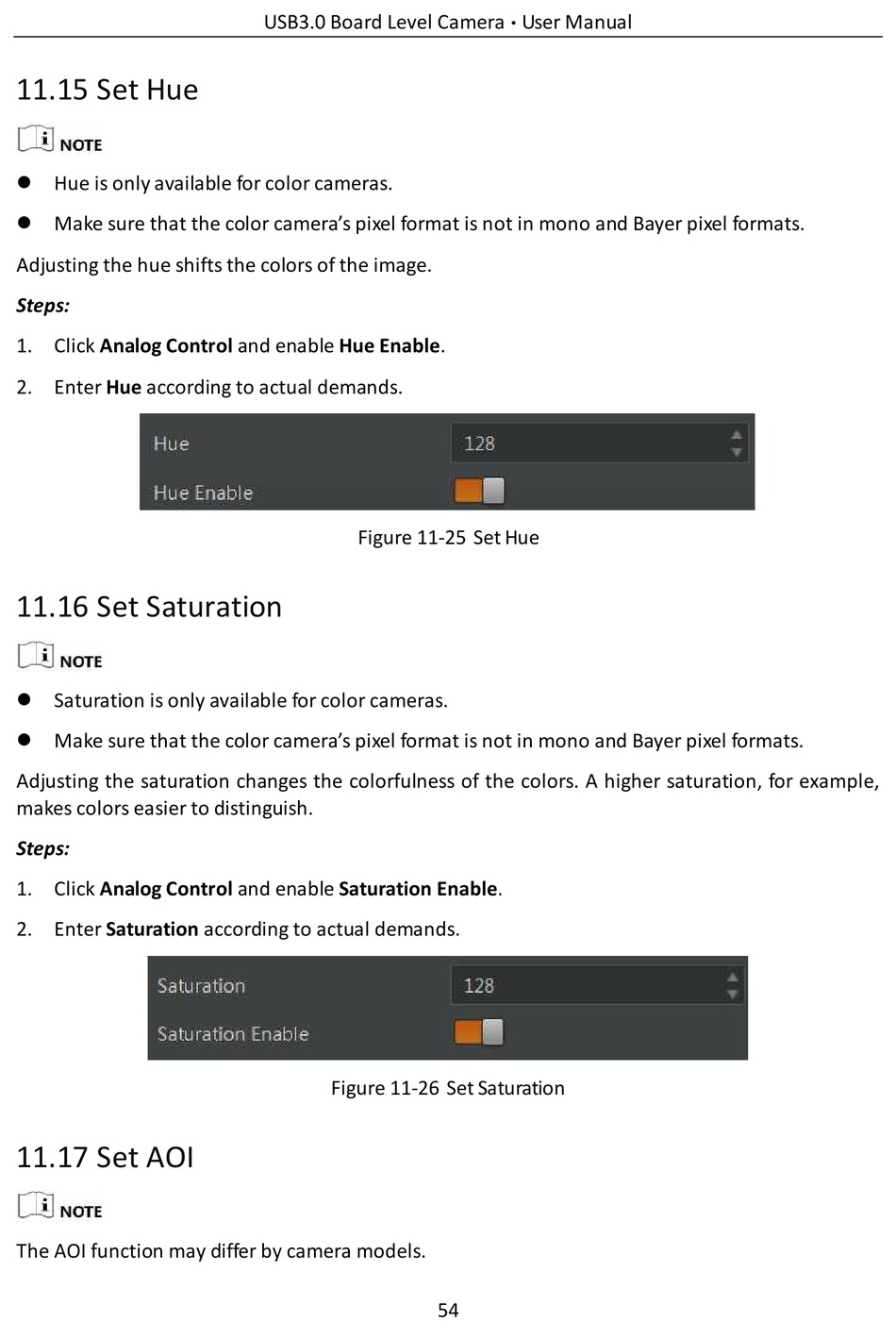

11.15 Set Hue

 Hue is only available for color cameras.
 Make sure that the color camera's pixel format is not in mono and Bayer pixel formats.
Adjusting the hue shifts the colors of the image.
Steps:
1. Click Analog Control and enable Hue Enable.
2. Enter Hue according to actual demands.
Figure 11-25 Set Hue

11.16 Set Saturation

 Saturation is only available for color cameras.
 Make sure that the color camera's pixel format is not in mono and Bayer pixel formats.
Adjusting the saturation changes the colorfulness of the colors. A higher saturation, for example,
makes colors easier to distinguish.
Steps:
1. Click Analog Control and enable Saturation Enable.
2. Enter Saturation according to actual demands.
Figure 11-26 Set Saturation

11.17 Set AOI

The AOI function may differ by camera models.
54
