Chapter 6 I/O Output

6.1 Set Output Signal

The device has 3 output signals, including LineOut 0, LineOut 1, and LineOut 2, which are used to
control external devices such as flashing light, etc. You can select output signal as shown below.
Steps:
1. Click Trigger and IO Control > Line Out Selector.
2. Select LineOut 0, LineOut 1, or LineOut 2 as Line Out Selector according to actual demands.

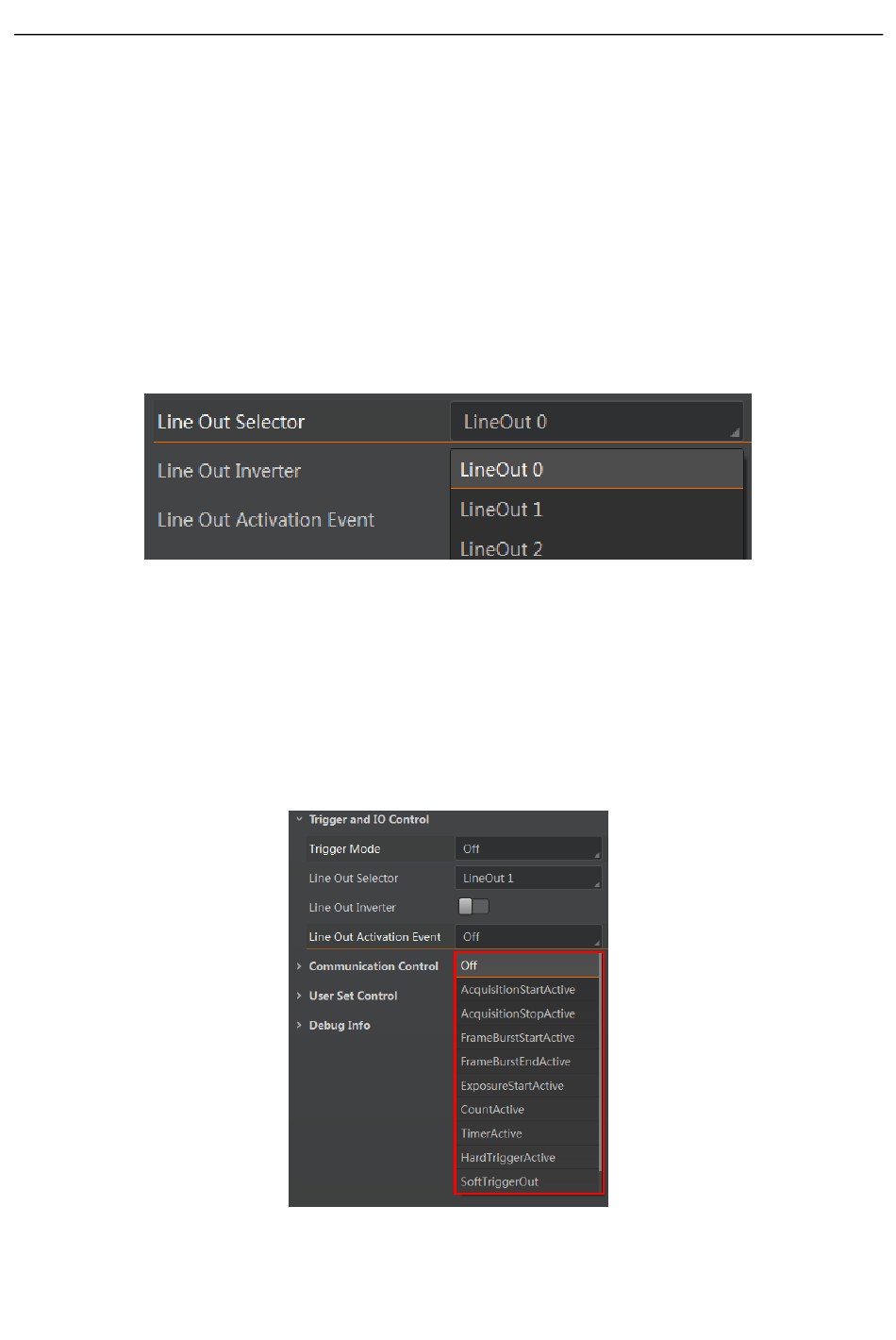

Figure 6-1 Select Output Signal

6.2 Set Output Event

Steps:
1. Click Trigger and IO Control > Line Out Activation Event.
2. Select different output events as Line Out Activation Event according to actual demands.
Figure 6-2 Set Output Event
