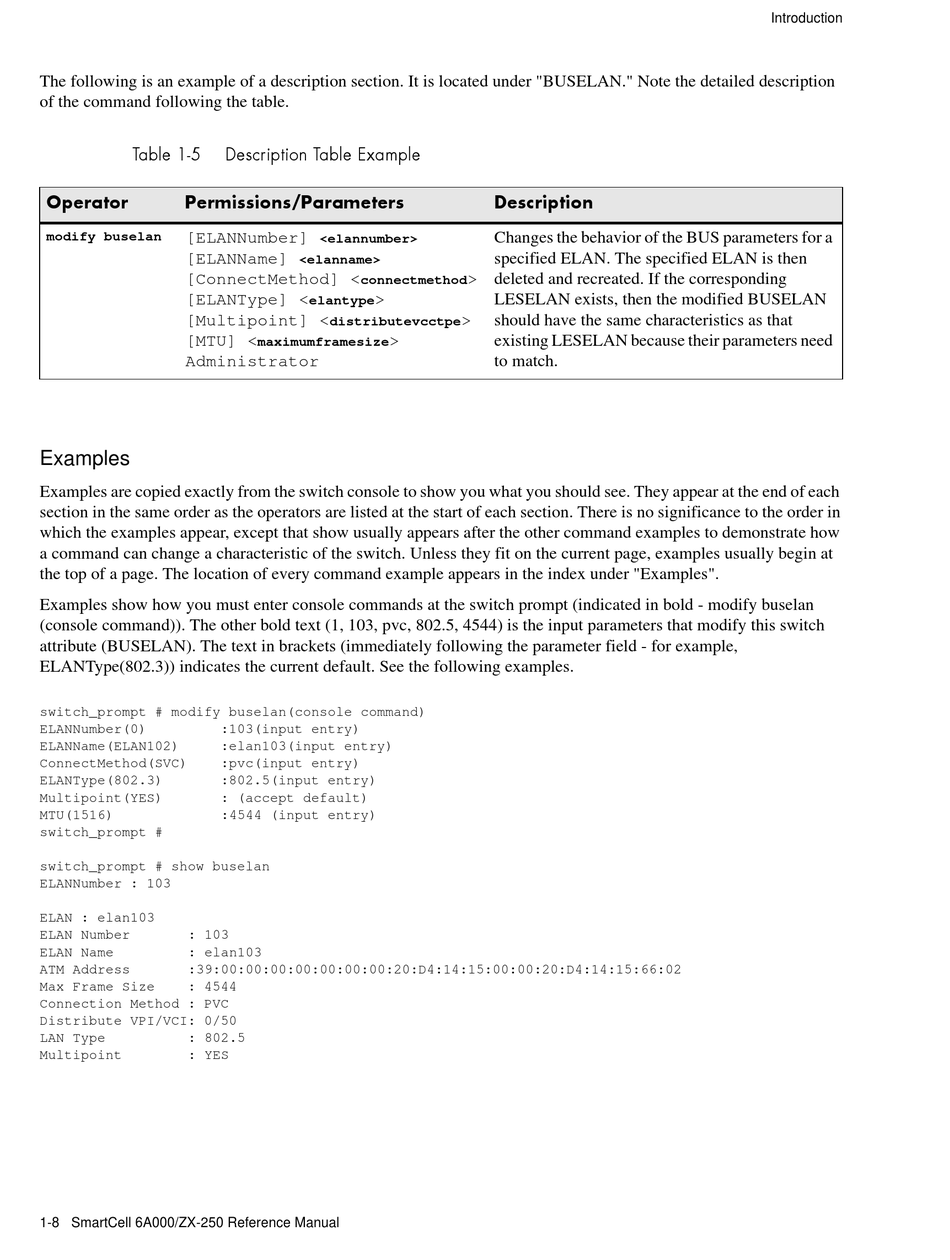

The following is an example of a description section. It is located under "BUSELAN." Note the detailed description
of the command following the table.
:"*dF˜s_Q
3zF•"›p• 6F•ha''apm'—6"•"hF›F•'
modify buselan [ELANNumber]
[ELANName]
[ConnectMethod] <
[ELANType] <
[Multipoint] <
[MTU] <
Administrator
Examples
Examples are copied exactly from the switch console to show you what you should see. They appear at the end of each
section in the same order as the operators are listed at the start of each section. There is no significance to the order in
which the examples appear, except that show usually appears after the other command examples to demonstrate how
a command can change a characteristic of the switch. Unless they fit on the current page, examples usually begin at
the top of a page. The location of every command example appears in the index under "Examples".
Examples show how you must enter console commands at the switch prompt (indicated in bold - modify buselan
(console command)). The other bold text (1, 103, pvc, 802.5, 4544) is the input parameters that modify this switch
attribute (BUSELAN). The text in brackets (immediately following the parameter field - for example,
ELANType(802.3)) indicates the current default. See the following examples.
switch_prompt # modify buselan(console command)
ELANNumber(0)
ELANName(ELAN102)
ConnectMethod(SVC)
ELANType(802.3)
Multipoint(YES)
MTU(1516)
switch_prompt #
switch_prompt # show buselan
ELANNumber : 103
ELAN : elan103
ELAN Number : 103
ELAN Name : elan103
ATM Address :39:00:00:00:00:00:00:00:20:D4:14:15:00:00:20:D4:14:15:66:02
Max Frame Size : 4544
Connection Method : PVC
Distribute VPI/VCI: 0/50
LAN Type : 802.5
Multipoint : YES
1-8 SmartCell 6A000/ZX-250 Reference Manual
&F'4•az›apm˜:"*dF˜'¨"hzdF
<elannumber>
<elanname>
connectmethod
>
elantype
distributevcctpe
>
maximumframesize
:103(input entry)
:elan103(input entry)
:pvc(input entry)
:802.5(input entry)
: (accept default)
:4544 (input entry)
&F'4•az›apm
Changes the behavior of the BUS parameters for a
specified ELAN. The specified ELAN is then
deleted and recreated. If the corresponding
>
LESELAN exists, then the modified BUSELAN
should have the same characteristics as that
>
existing LESELAN because their parameters need
to match.
