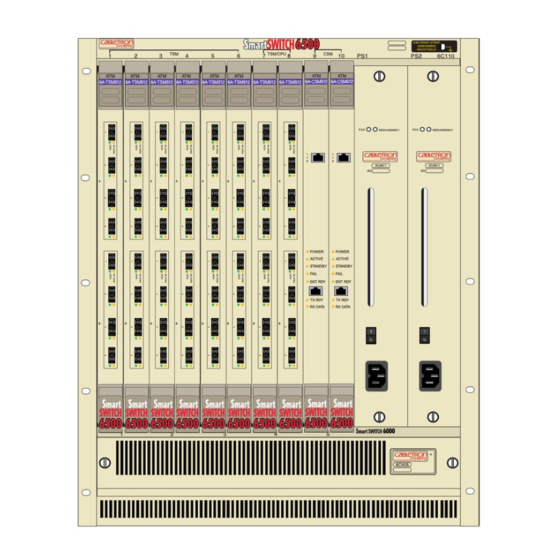

SmartSwitch 6500
Reference Manual
35 Industrial Way
Rochester, NH 03866-5005
USA
(603) 332-9400
Part Number 04-0051-01 Rev. A
Order Number 9032705

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSwitch 6500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cabletron Systems SmartSwitch 6500

Summary of Contents for Cabletron Systems SmartSwitch 6500

  • Page 1 SmartSwitch 6500 Reference Manual 35 Industrial Way Rochester, NH 03866-5005 (603) 332-9400 Part Number 04-0051-01 Rev. A Order Number 9032705...
  • Page 2 Copyright 1998 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH03866-5005 All Rights Reserved Printed in the United States of America SmartSwitch 6500 Reference Manual 04-0051-01 Rev. A Rev. A Order # 9032705 SmartSwitch, SPECTRUM, LANVIEW, MicroMMAC, and BRIM are registered trademarks and Element Manager, EPIM, EPIMA, EPIM-F1, EPIM-F2, EPIM-F3, EPIM-T, EPIM-X, FOT-F, FOT-F3, HubSTACK, SEH, SEHI, and TMS-3 are trademarks of Cabletron Systems, Inc.

  • Page 3: Revision History

    Document Name: SmartSwitch 6500 Reference Manual Document Order Number: Order # 9032705 Document Part Number: 04-0051-01 Rev. A Author: Robert de Peyster Editor: Carre Gibson Date Revision October 1998 04-0051-01 Rev. A Description Initial release SmartSwitch 6500 Reference Manual iii...
  • Page 4 SmartSwitch 6500 Reference Manual...

  • Page 5: Table Of Contents

    List of Operators and Possible Switch Attributes ........
  • Page 6 PnniNetworkLink ............2-164 SmartSwitch 6500 Reference Manual...
  • Page 7 TrapCommunity ............2-293 SmartSwitch 6500 Reference Manual vii...
  • Page 8 Index ............I-1 viii SmartSwitch 6500 Reference Manual Table of Contents...
  • Page 9 Table B-3 Event ID Prefixes ..........B-3 SmartSwitch 6500 Reference Manual ix...
  • Page 10 List of Tables SmartSwitch 6500 Reference Manual...

  • Page 11: Introduction

    1 INTRODUCTION This reference manual describes the console commands for the SmartSwitch 6500. Audience and Scope The manual is intended for network administrators and others responsible for maintaining the SmartSwitch 6500. Definitions The manual is organized alphabetically by switch attribute.

  • Page 12: Conventions

    Conventions The SmartSwitch 6500 Reference Manual uses the following conventions for instructions and information: • Information you enter (console commands and input parameters) is shown in and requires a space between the operator and switch attribute. • Input and output parameters are shown in [Square Brackets].

  • Page 13: Abbreviations

    Introduction Abbreviations Pay attention to how switch attributes appear in section headings of Chapter 2. Switch attributes are not case sensitive, but you must spell them correctly. For example, if the heading states BUSStat, you must enter busstats. switch_prompt # show busstats...

  • Page 14: Help Options

    There is also a table of commands at the end of this chapter. It lists all switch attributes by their operator. See the SmartSwitch 6500 User Guide for details on how to use the switch. The user guide contains information about switch configuration, maintenance, and SNMP (simple network management protocol), as well as an overview of switch capabilities.

  • Page 15: Switch Attribute

    Those attributes are: shutdown Operators If an attribute requires operators, they are listed under an “Operators” heading. Following is a list of all possible switch operators. If an operator has an alias, it is shown in parenthesis. Table 1-1...
  • Page 16 Parameters Most switch attributes have input or output parameters (or both). If an attribute has parameters, they are listed in tables under a “Parameters” heading. You enter input parameters at the console command line. You view output parameters at the console screen after the command executes. Some input parameters have default values (shown in parenthesis).
  • Page 17 [ClientNumber] <clientnumber> clientvc Examples Examples are copied exactly from the switch console. They show how you must enter console commands at the switch prompt (for example: modify buselan in brackets immediately following each parameter field indicates the current default (for example:...

  • Page 18: List Of Operators And Possible Switch Attributes

    List of Operators and Possible Switch Attributes Following is a list of switch attributes that are used with operators. If an operator has an alias, the alias is shown in parenthesis. 2p›F A small group of attributes does not require operators and can function as standalone commands.
  • Page 19 LECSELANPolicy LESELAN MyNmAddr PnniNode PnniNodeTimer PnniScopeMapping PortClockMode PortTrafficCongestion Prompt SigTimer SSCOPConfig SwitchTrafficCongestion TrustedNMS PVCById Route ServiceRegistry Alias BUSELAN ConsoleTimeout EventDisplay IlmiConfig LANEClient LECSELAN LECSErrorLogControl LECSTLVSet NetworkClock PnniInterface PnniPeerGroupId PnniPglElection PortConfig PortMode RedundancyInfo Rows SwitchConfig SwitchName SmartSwitch 6500 Reference Manual 1-9...
  • Page 20 LESClient LESELAN LESStat McastClients NetPrefix NetworkClock PnniMetrics PnniNeighbor PnniNode PnniNodeTimer PnniReachableAddress PnniScopeMapping PnniSvccRcc PnniTnsRoute PortMode PortStats SARStats ServiceRegistry 1-10 SmartSwitch 6500 Reference Manual Alarms Alias BUSELAN BUSErrorLog CACEqBwAllocScheme CACInfo CACStatistics Client ClientVC Community DS3E3LoopBack ELAN IlmiConfig IPATMARP LECMcast LECS LECSELANNameTable...
  • Page 21 Introduction show (display) Continued SlotConfig SSCOPConfig SlotConfig SSCOPConfig TrapCommunity TrustedNMS activate/deactivate Client PVPById backup/restore Switch clear Alias BUSErrorLog Config LESErrorLog disable/enable Privilege SSCOPStatistics SwitchTrafficCongestion TrafficDescriptor VlanMcast PVCById BUSStat CACStatistics LESStat PortStats SmartSwitch 6500 Reference Manual 1-11...
  • Page 22 CpuSwitchover RedundancyConfigBackup flush Alias Config restart Client setup Switch start LECS stop LECS 1-12 SmartSwitch 6500 Reference Manual Ping Introduction...
  • Page 23 Introduction update Firmware SmartSwitch 6500 Reference Manual 1-13...
  • Page 24 Introduction 1-14 SmartSwitch 6500 Reference Manual...

  • Page 25: Console Commands

    Physical port number on the switch. [Type] Type of port. [Loopback] Loopback mode. Possible values are None, Facility, Equipment, or Diag (see Table 2-1). Value/Field Size 1A1 to 8B4 None, Facility, Equipment, Diag SmartSwitch 6500 Reference Manual 2-1 Default No default None...
  • Page 26 Cells generated by the switch to this port are not sent over the line. Diag Connects the receiver to the transmitter. The data stream transmitted by the switch to a port is looped back to the switch.

  • Page 27: Alarmdisplay

    Toggles the display On or Off. Descriptions Operator Parameters/Permissions modify [AlarmDisplay] <alarmdisplay> alarmdisplay Administrator Administrator show alarmdisplay Value/Field Size On, Off Description Toggles display of alarm messages on the console screen. Displays status of alarms display. SmartSwitch 6500 Reference Manual 2-3 Default...
  • Page 28 Console Commands Examples switch_prompt # show alarmdisplay Alarm Display is OFF switch_prompt # switch_prompt # modify alarmdisplay AlarmDisplay[OFF] : on switch_prompt # switch_prompt # show alarmdisplay Alarm Display is ON switch_prompt # 2-4 SmartSwitch 6500 Reference Manual...

  • Page 29: Alarms

    Deletes an alarm or all alarms. Displays alarm(s) currently logged. Alarm information includes message index number, alarm ID, message text, severity, and a timestamp (time the alarm occurred, with respect to switch up-time in hours, minutes, seconds, and milliseconds). SmartSwitch 6500 Reference Manual 2-5 Default...
  • Page 30 Examples switch_prompt # show alarms Index(ALL) 33554652 000:00:32:238 --------------------------------------------------- LECS Operational switch_1 # delete alarms Index(ALL) switch_1 # show alarms Index(ALL) 2-6 SmartSwitch 6500 Reference Manual Console Commands...

  • Page 31: Alias

    Value/Field Size Single word (no spaces) of alphanumeric characters. Any valid combination of operator and attribute (for example, show events aliased string may not contain another alias. ʈÃÊ>˜Ê>•ˆ>ÃÊ ping Default No default No default ). The SmartSwitch 6500 Reference Manual 2-7...
  • Page 32 AliasName() NewAliasedString() Modifying Alias "spnni -> show pnniinterface" to "spnni -> sp" Confirm(y/n)?:y switch_prompt # 2-8 SmartSwitch 6500 Reference Manual Description Creates an alias. You can have up to 15 active aliases (including Deletes an alias. Deletes all aliases (including Changes an alias.
  • Page 33 Console Commands switch_prompt # show alias AliasName(ALL) Alias List ============================================================================== Index Alias Name PING switch_prompt # : Aliased Command : Start Ping : show pnninode SmartSwitch 6500 Reference Manual 2-9...

  • Page 34: Atmroute

    ATMRoute Use ATMRoute to manage routes to reachable addresses from the switch. 2p›F You can hot-swap TSMs. Hot-swapping is replacing a module when the chassis is powered up. If you replace a TSM with another TSM of the same type (same I/O ports), existing configuration of port parameters is not affected.
  • Page 35 [ATM Address] Same as [ATMAddr] input parameter. [Protocol] Routing mechanism used to determine connectivity between the switch and the reachable address prefix. Possible values are Other, Local, Mgmt, and PNNI. [Advertising Node Id] Identifier of the node advertising reachability to the address prefix.
  • Page 36 For reachable addresses learned by means other than PNNI, this parameter is set to zero. [Advertising] Whether or not the local switch advertises the local address into the PNNI domain. Possible values are: Yes and No. [Oper Status] Whether or not the reachable address prefix is operationally valid and whether it is advertised by this node.
  • Page 37 VP Capability : False Metrics Tag Ptse Id Advertising : No Oper Status : Active The ATM route was deleted successfully. switch_prompt # Type Proto : 7a3 : 20:01:02:03 Type Proto : 20:01:02:03 SmartSwitch 6500 Reference Manual 2-13 I MGMT...

  • Page 38: Busclient

    LEC identification number of the specified client. [VPI/VCI] VPI/VCI (virtual path/channel identifier) values of control direct VCC (virtual channel connection) or multicast send VCC. [ATM Address] ATM address of the client. 2-14 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default 0-125 1-65279...
  • Page 39 : 0/219 ATM Address : 39:00:00:00:00:00:00:00:20:D4:14:2F:00:00:20:D4:14:2F:00:00 switch_prompt # Description Removes a specified client from the BUS on the specified ELAN. Displays information about all clients that have joined the BUS on the specified ELAN. ELAN000 SmartSwitch 6500 Reference Manual 2-15...

  • Page 40: Buserrorlog

    [ATM Address] ATM address associated with the error. [ErrorCode] Decimal code that shows why the error occurred (see Table 2-2). [SysUpTime] Time the error occurred with respect to switch up-time in hours, minutes, and seconds. Descriptions Operator Parameters/Permissions [ELANNumber] <elannumber>...
  • Page 41 Responder is unable to grant request for reasons such as insufficient table space or ability to establish VCCs. Malformed control frame or bad control request. Malformed data frame (too big or too small). All other events. ErrorCode SysUpTime 01:02:03 SmartSwitch 6500 Reference Manual 2-17...

  • Page 42: Buselan

    Whether or not BUS error log is enabled. [MinimumTDEnable] Whether or not minimum acceptable traffic descriptor negotiation is enabled. [ForwardPeakCellRate] Minimum forward peak cell rate. 2-18 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default 0-125 or All PVC, SVC 802.3 (Ethernet),...
  • Page 43 Administrator Description Creates a BUS on a specified ELAN. If the corresponding LESELAN exists, then the added BUSELAN should have similar characteristics. Removes the BUS from a specified ELAN and drops clients connected to it. SmartSwitch 6500 Reference Manual 2-19...
  • Page 44 : ELAN003 ATM Address : 39:00:00:00:00:00:00:00:20:D4:14:15:00:00:20:D4:14:15:03:02 Confirm(y/n)? switch_prompt # 2-20 SmartSwitch 6500 Reference Manual Description Changes the behavior of the BUS parameters for a specified ELAN. The specified ELAN is then deleted and recreated. If the corresponding LESELAN exists, then the modified BUSELAN...
  • Page 45 Max Frame Size : 4544 Connection Method : SVC Distribute VPI/VCI : 0/2423 Sel.DistributeVPI/VCI: 0/2423 ELAN Type : 802.5 Multipoint : YES Error Logging : NO Min TD Negotiation : NO switch_prompt # : 802.5 : 4544 SmartSwitch 6500 Reference Manual 2-21...

  • Page 46: Buslecstat

    BUS from this LEC. [Forwards] Number of requests forwarded by the BUS from this LEC. [Discards] Number of requests discarded by the BUS from this LEC. 2-22 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default 0-125 or All 0-65279...
  • Page 47 LECId(0) Client statistics for ELAN ELAN000 =========================================================================== LECId ATM address : 39:00:00:00:00:00:00:00:20:D4:14:2F:00:00:20:D4:14:2F:00:00 Receives : 17185 Forwards : 17185 Discards switch_prompt # Description Displays statistical information about a specific client or all clients on that ELAN. SmartSwitch 6500 Reference Manual 2-23...

  • Page 48: Busstat

    Number of multicast frames received by the BUS. [Frame Timeouts] Number of frames dropped by the BUS due to timeout. [VCC Rejects] Number of frames rejected because VCC is not available. 2-24 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default...
  • Page 49 # clear busstat ELANNumber(ALL): Clearing ALL BUS ELAN Statistics Confirm(y/n)?:y switch_prompt # Description Displays BUS statistics for the specified ELAN or for all ELANs. Clears BUS statistics for the specified ELAN or for all ELANs. SmartSwitch 6500 Reference Manual 2-25...

  • Page 50: Bustype

    Operator Parameters/Permissions modify bustype [IntelligentBUSMode] <intelligentbusmode> Administrator Examples switch_prompt # modify bustype IntelligentBUSMode(OFF) BUS Type Set to Intelligent Mode switch_prompt # 2-26 SmartSwitch 6500 Reference Manual Value/Field Size Off, On Description Sets intelligent BUS mode. : on Console Commands Default...

  • Page 51: Caceqbwallocscheme

    Console Commands CACEqBwAllocScheme Use CACEqBwAllocScheme to set or display the equivalent bandwidth allocation scheme of switch ports. Operators modify, show Parameters Input Parameter Description [PortNumber] Port number on the switch. You can specify a physical or virtual port. [ServiceCategory] Service category.
  • Page 52 # modify caceqbwallocscheme PortNumber() SeriveCategory(CBR) AllocScheme(CONSERVATIVE) switch_prompt # switch_prompt # show caceqbwallocscheme PortNumber(ALL) =========================================================== Port# Alloc Scheme RTVBR NRTVBR =========================================================== 7A1.1 CPU.1 switch_prompt # 2-28 SmartSwitch 6500 Reference Manual Description Displays allocation scheme. : 7a1 : nrtvbr : liberal Console Commands...

  • Page 53: Cacinfo

    Console Commands CacInfo Use CacInfo to display bandwidth allocated to switch ports per service category. Operators show Parameters Input Parameter Description [PortNumber] Port number on the switch. You can specify a physical or virtual port. [BandwidthUnit] Unit for specifying bandwidth.
  • Page 54 BandWidthUnit(CPS) ===================================================================== Port# Total Total BW Allocated ===================================================================== 264186 264186 264186 264186 264186 264186 264186 switch_prompt # 2-30 SmartSwitch 6500 Reference Manual Description Displays port bandwidth per service category. : ALL : CPS BwAlloc For ServiceCategory RT-VBR NRT-VBR Console Commands...

  • Page 55: Cacportbw

    Console Commands CACPortBw Use CACPortBw to display minimum and maximum bandwidth of switch ports. Operators show Parameters Input Parameter Description [PortNumber] Port number on the switch. 1A1 to 8B4 (for physical ports), Output Parameter Q+œÀÍ›R Q >Þ*>˜`݈`Í…7˜ L«ÃR Q >Þ*>˜`݈`Í…7˜=L«ÃR Q >Þ*>˜`݈`Í…7˜+«ÃR...
  • Page 56 ============================================================================= 158208 422668 158208 422668 158208 422668 158208 422668 158208 422668 158208 422668 158208 422668 158208 422668 CPU.1 10752 28992 switch_prompt # 2-32 SmartSwitch 6500 Reference Manual Description Displays minimum and maximum port bandwidth. Min Bandwidth Mbps Kbps Console Commands...

  • Page 57: Cacserviceclassbw

    The deletion occurs when the new module is plugged into the chassis backplane. Operators modify, show Parameters Input Parameter Description [PortNumber] Port number on the switch. 1A1 to 8B4 (for physical ports), .iÀ܈ViÊV>Íi}œÀß° [ServiceCategory] [MaxBandwidthInPerCBR] >••œV>Íi`ÊvœÀÊ+*-°Ê-0œÍ>•ÊœvÊ >••ÊÍ…iÊÃiÀ܈ViÊV>Íi}œÀßÊ L>˜`݈`Í…ÊÃ…œÖ•`ʘœÍÊ iÞVii`Ê£ä䯰®...
  • Page 58 [Max Bandwidth In Cps] Maximum bandwidth in cells per second allocated to the service category specified. [Max Bandwidth In %] Maximum bandwidth in percent allocated to the service category specified. 2-34 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Zero or positive integer...
  • Page 59 MaximumBandWidthIn-Percentage-UBR(25) MaximumBandWidthIn-Percentage-ABR(0) switch_prompt # switch_prompt #show cacServiceClassBW PortNumber(ALL) SeriveCategory(UBR) =========================================== Port# Max Bandwidth Mbps Kbps =========================================== switch_prompt # Description Sets bandwidth per service category. Displays bandwidth per service class. : 1b1 : 1a1 : CBR SmartSwitch 6500 Reference Manual 2-35...

  • Page 60: Cacstatistics

    Administrator [PortNumber] <portnumber> show cacstatistics Administrator 2-36 SmartSwitch 6500 Reference Manual Value/Field Size 1A1 to 8B4 (for physical ports), 1A1.n to 8B4.n (for virtual ports), or All Description Clears CAC statistics of a port or all ports. Displays CAC statistics of a port or all ports.
  • Page 61 No of ABR calls HIGH threshold exceeded No of ABR calls LOW threshold exceeded No of PNNI Updates sent Total No of calls HIGH threshold exceeded Total No of calls LOW threshold exceeded switch_prompt # : 1a1 :1A1 SmartSwitch 6500 Reference Manual 2-37...

  • Page 62: Client

    Client Use Client to manage LANE and IP/ATM clients on the switch. Clients on the switch are called local clients. 2p›F Use the LANEClient attribute to add or modify a LANE client. Use the IPATMClient attribute to add or modify an IP/ATM client.
  • Page 63 Deactivates a client on the switch. Removes a client from the switch. Restarts a client on the switch. If a client fails to successfully join a VLAN, you can restart the client to retry. The switch software, on a periodic basis, automatically tries to restart clients that have not successfully joined.
  • Page 64 90.1.1.124 switch_prompt # switch_prompt # show client /s ClientNumber(ALL) Client Type IP Address ============================================================================ LANE 90.1.1.186 IP/ATM 90.1.1.124 switch_prompt # 2-40 SmartSwitch 6500 Reference Manual Server Type Server Conn Status LECS Established Operational Local Established Operational Server Type Server Conn...
  • Page 65 # show client 3 /d IP/ATM Client 3 ============================================================================ Client State : Operational Client Address : 39:00:00:00:00:00:00:00:00:00:14:15:00:00:00:5A:01:01:7C:00 Server : is local Server Connection: Established : 9180 IP Address : 90.1.1.124 IP NetMask : 255.0.0.0 switch_prompt # SmartSwitch 6500 Reference Manual 2-41...

  • Page 66: Clientarp

    ClientARP Use ClientARP to display the ARP table maintained by each LANE or IP/ATM client on the switch. For a LANE client, the table contains mappings of MAC to ATM addresses for destination clients. The mappings are supplied by the ARP server of each ELAN to which the LANE client connects.
  • Page 67 LANE Client 0 ARP Table MAC Address ATM Address ============================================================================= 00:20:D4:14:15:00 39:00:00:00:00:00:00:00:20:D4:14:15:00:00:20:D4:14:15:00:02 IP/ATM Client 3 ARP Table IP Address ATM Address ========================================================================================= 10.1.1.1 39:00:00:00:00:00:00:00:20:D4:14:15:00:00:20:D4:14:2F:00:00:0A:01:01:02:00 switch_prompt # Description Displays details about LANE or IP/ATM client ARP entries. SmartSwitch 6500 Reference Manual 2-43...

  • Page 68: Clientstat

    ClientStat Use ClientStat to display packet count statistics of LANE or IP/ATM clients on the switch. 2p›F Clients on the switch are called local clients. Operators show Parameters Input Parameter [ClientNumber] In the Output Parameter table below, (detailed) command. The (IP/ATM) and (LANE) client indicators after particular parameters indicate clientstat /d that these parameters display only if that particular client type is active.
  • Page 69 Number of control frames received. Number of clients who failed to join the SVC (switched virtual circuit). ARP unreachable clients. Number of inverse ARP NAKs (negative acknowledges) received. Description Displays packet count statistics for local clients. SmartSwitch 6500 Reference Manual 2-45...
  • Page 70 Tx Stats Bytes Transmitted Unicast Packets Multicast Packets Broadcast Packets Error Packets Dropped Packets IP/ATM Statistics ARP Requests Sent ARP Replies Rcvd ARP Requests Rcvd ARP Replies Sent ARP Unreachables ARP NAKs 2-46 SmartSwitch 6500 Reference Manual RxOctets TxOctets Console Commands...
  • Page 71 Unicast Packets Multicast Packets Broadcast Packets Error Packets Dropped Packets LAN Emulation Statistics ARP Requests Sent ARP Replies Rcvd ARP Requests Rcvd ARP Replies Sent Ctrl Frames Sent Ctrl Frames Rcvd SVC Failures switch_prompt # SmartSwitch 6500 Reference Manual 2-47...

  • Page 72: Clientvc

    ClientVC Use ClientVC to display VCs associated with ARP mappings cached by LANE or IP/ATM clients on the switch. ClientARP is similar to ClientVC but does not show the VPI/VCI corresponding to a route to a destination client. 2p›F Clients on the switch are called local clients.
  • Page 73 Displays VC details for local IP/ATM or LANE clients in addition to client ARP mapping details. For IP/ATM, the destination IP address appears; for LANE, the destination MAC address appears. The destination address is what is located at the other end of the VC. SmartSwitch 6500 Reference Manual 2-49...

  • Page 74: Community

    Use Community to group NMS (network management system) hosts by privilege level. Hosts are collectively called communities. Host privilege levels determine the type of information access permitted by the switch. The switch provides access to the information only if the request comes from a community configured with the necessary privileges.
  • Page 75 Displays all communities configured on the switch. : boris : 90.1.1.1 IP Address Privilege 0.0.0.0 READ 90.1.1.1 READ 0.0.0.0 READ 0.0.0.0 WRITE : boris : 90.1.1.1 IP Address Privilege 0.0.0.0 READ 0.0.0.0 READ 0.0.0.0 WRITE SmartSwitch 6500 Reference Manual 2-51...

  • Page 76: Config

    Config Use Config to erase the configuration information on the SmartSwitch 6500. Before using the command, you should back up the switch configuration using the Operators clear, flush Parameters This attribute has no input or output parameters. Just enter Descriptions...

  • Page 77: Consoletimeout

    Descriptions Operator Parameters/Permissions [ConsoleTimeout] <consoletimeout> modify consoletimeout Administrator Administrator show consoletimeout Value/Field Size Default 1-60 min. Setting console 0 (Off) timeout to 0 toggles console timeout off. Description Sets console timeout. Displays current console timeout. SmartSwitch 6500 Reference Manual 2-53...
  • Page 78 Examples switch_prompt # set consoletimeout ConsoleTimeout(0) You are about to disable Console Timeout Confirm (y/N)? : y switch_prompt # switch_prompt # show consoletimeout Console Timeout in minutes ============================================================================== ConsoleTimeout : OFF switch_prompt # 2-54 SmartSwitch 6500 Reference Manual Console Commands...

  • Page 79: Coredump

    IP address of host to which the core is dumped. (Same as the [ServerIP] input parameter.) [CoreDumpFile] Full pathname of the file to which the core is dumped. Value/Field Size Default Y (Yes), N (No) No default No default No default No default SmartSwitch 6500 Reference Manual 2-55...
  • Page 80 CoreDumpEnabled CoreDumpServerIP 204.95.77.240 CoreDumpFile /tftpboot/ssubrama/core 2-56 SmartSwitch 6500 Reference Manual Console Commands Description Enables core dump. Once enabled, the core is dumped to the file specified in the event of a system failure. The core dump takes about five minutes.

  • Page 81: Cpuswitchover

    Console Commands CpuSwitchover Use CpuSwitchover to switch roles of the redundant (slave) and master TSM/CPU modules (the slave module becomes the master module and vice versa). The present. "vÍiÀÊÍ…iÊÃ݈ÍV…œÜiÀ]ÊÍ…iʘiÝÊ“>ÃÍiÀÊ“œ`Ö•iÊ“ÖÃÍÊLiÊÀiLœœÍi`° 2p›F Operators execute Parameters This attribute has no output parameters. Input Parameter...

  • Page 82: Ds3E3Loopback

    Loopback mode specified (see Table 2-3). Descriptions Operator Parameters/Permissions [Port] <port> modify [Loopback] <loopback> ds3e3loopback Administrator 2-58 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default 1A1 to 8B4 None, Cell, Payload, None Line, Diag Description Sets loopback status of DS3 and E3 ports.

  • Page 83: Table 2-3 Ds3 And E3 Loopback Modes

    Line Connects the transmitter to the receiver. The DS3 or E3 stream received from the line is retransmitted back out to the line. Cells generated by the switch to this port are not sent over the line. Diag Connects the receiver to the transmitter. The DS3 or E3 stream transmitted by the switch to a port is looped back to the switch.

  • Page 84: Elan

    ELAN Use ELAN to create or delete ELANs on the switch. It is a means to manage ELAN servers with one command. To manage ELAN servers individually, see the BUSELAN, LECSELAN, and LESELAN attributes. 2p›F The BUSELAN, LECSELAN, and LESELAN attributes manage, respectively, the Broadcast and Unknown Server (BUS), LAN Emulation Configuration Server (LECS), and the LAN Emulation Server (LES).
  • Page 85 [Error Logging] Whether or not the BUS, LECS, and LES error logs are enabled. [Min TD Negotiation] Whether or not minimum acceptable traffic descriptor negotiation is enabled. Value/Field Size Default Positive integer All, Proxy Proxy SmartSwitch 6500 Reference Manual 2-61...
  • Page 86 [ELANNumber] <elannumber> delete elan Administrator [ELANNumber] <elannumber> show elan 2-62 SmartSwitch 6500 Reference Manual Console Commands Description Quickly configures an ELAN on the switch. It adds an ELAN entry in the databases for the BUS, LECS, and LES. It also activates the ELAN.
  • Page 87 : ELAN000 ELAN Type : 802.3 : 1516 Connection Method : SVC Distribute VPI/VCI: 0/0 Distribute Method : PROXY Multipoint : YES Error Logging : NO Min TD Negotiation : NO switch_prompt # : 11 SmartSwitch 6500 Reference Manual 2-63...

  • Page 88: Eventdisplay

    Toggles the display On or Off. Descriptions Operator Parameters/Permissions [EventDisplay] <eventdisplay> modify eventdisplay Administrator Administrator show eventdisplay 2-64 SmartSwitch 6500 Reference Manual Value/Field Size On, Off Description Toggles display of event messages on the console screen. Displays status of events display. Console Commands Default...
  • Page 89 Console Commands Examples switch_1 # show eventdisplay Event Display is ON switch_1 # switch_1 # modify eventdisplay EventDisplay(ON) : off switch_1 # switch_1 # show eventdisplay Event Display is OFF switch_1 # SmartSwitch 6500 Reference Manual 2-65...

  • Page 90: Events

    Parameters/Permissions delete events [Index] <index> Administrator [Index] <index> show events Administrator 2-66 SmartSwitch 6500 Reference Manual Value/Field Size Default Positive integer or All Description Deletes an event or all events. Displays event(s) currently logged. Event information includes message index number, event ID, message text,...
  • Page 91 MINOR EVENT --------------------------------------------------- Sendto failed for IP address 206.61.231.153 33554656 MINOR EVENT --------------------------------------------------- Sendto failed for IP address 206.61.231.153 33554656 MINOR EVENT --------------------------------------------------- Sendto failed for IP address 206.61.231.153 001:27:50:708 001:27:51:612 001:27:51:728 001:27:53:683 001:27:50:708 001:27:51:612 001:27:53:683 SmartSwitch 6500 Reference Manual 2-67...

  • Page 92: Exit

    Permission [exit] <exit> exit Examples switch_prompt # exit Exiting SmartSwitch Command Console 2-68 SmartSwitch 6500 Reference Manual at the switch prompt. exit Description This closes your console connection. Enter finished with a console session. If you do not exit your session, the switch remains unavailable to anyone else.

  • Page 93: Firmware

    Description Updates the switch software (for example, when upgrading your switch). You must know the full pathname of the updated image files. In addition, the TFTP protocol must be installed on the server. After doing an update, you must reboot the switch for the new firmware to take effect.
  • Page 94 Using TFTP to get and program bootfile builds/lab-02.02.22/server.i ma from 206.61.237.127. 4903K (5021184 bytes) received. Flash update succeeded. You will have to reboot for the new image to take effect. switch_prompt # 2-70 SmartSwitch 6500 Reference Manual : 206.61.237.127 : builds/lab-02.02.22/ser Console Commands...

  • Page 95: History

    Displays the last five console commands entered. It also displays an index number that allows you to quickly repeat any of those commands. To repeat a command listed by history, type !<indexnumber> in the following example, type SmartSwitch 6500 Reference Manual 2-71 . For example, to repeat passwd...

  • Page 96: Ilmiconfig

    [Factor-K] Number of K consecutive polls for which no ILMI response is received before ILMI connectivity is declared lost. 2-72 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default 1A1 to 8B4 (for physical ports), 1A1.n to 8B4.n (for virtual ports),...
  • Page 97 Output Parameter Description [Port] Port number on the switch. (Same as the [PortNumber] input parameter.) [ILMIAddress] Shows whether or not ILMI address registration is enabled. [ILMI] Shows whether or not ILMI connectivity is enabled. [Timer S] Shows value of Timer S.
  • Page 98 CPU.1 Disabled Disabled Enabled Enabled Enabled Enabled Enabled Enabled switch prompt # modify ilmiconfig PortNumber() IlmiAddressRegistration(enable) IlmiConnectivity(enable) Timer-S(1) Timer-T(5) Factor-K(4) switch prompt # 2-74 SmartSwitch 6500 Reference Manual Timer S Timer T Factor K (seconds) (seconds) : 1a1 Console Commands...

  • Page 99: Ipaddress

    Console Commands IPAddress Use IPAddress to change IP addresses of the Ethernet port and IP netmask on the switch. Operators modify Parameters This attribute has no output parameters. Input Parameter Description [IPAddress] IP address of the Ethernet port. [IPNetMask] IP netmask of the Ethernet port. Defaults to the appropriate netmask, based on the class of the IP address.

  • Page 100: Ipatmarp

    ATM address of the IP/ATM destination client. Descriptions Operator Parameters/Permissions [ClientNumber] <clientnumber> show ipatmarp 2-76 SmartSwitch 6500 Reference Manual Value/Field Size 0-127 or All Descriptions Displays the ARP entries associated with active IP/ATM clients which are IP/ATM servers. Console Commands...
  • Page 101 Console Commands Examples switch_prompt # show ipatmarp ClientNumber(ALL): IP/ATM Server 1 ARP Table IP Address ATM Address ============================================================================ 11.1.1.3 39:00:00:00:00:00:00:00:20:D4:14:22:80:00:00:0B:01:01:03:00 switch_prompt # SmartSwitch 6500 Reference Manual 2-77...

  • Page 102: Ipatmclient

    IPATMClient Use IPATMClient to add or modify IP/ATM clients on the switch. Any of the clients can act as an ARP server. 2p›F Use the Client attribute to delete, restart, or show IP/ATM clients. Operators add, modify Parameters This attribute has no output parameters.
  • Page 103 [ClientNumber] <clientnumber> show client Description Creates a new IP/ATM client on the switch. If the circuits in this VLAN are SVCs, and if you want to use this client as the ARP server, enter for the server type. If you do not...
  • Page 104 # add ipatmclient ClientNumber(0) : 60 ServerType(NONE) ServerAddr() IpAddr() : 101.1.1.60 NetMask(255.0.0.0): MTU(9180) switch_prompt # switch_prompt # modify ipatmclient ClientNumber(0) : 50 ServerType(LOCAL) : ServerAddr() IpAddr(101.1.1.50): 101.1.1.150 NetMask(255.0.0.0): MTU(9180) switch_prompt # show client switch_prompt # 2-80 SmartSwitch 6500 Reference Manual Console Commands...

  • Page 105: Ipatmpvc

    VCI on CPU port to reach a particular IP/ATM client. 0-maximum Output Parameter Description [IP Address] IP address of the client. [VPI/VCI] VPI/VCI values of control direct VCC or multicast send VCC. Value/Field Size Default 0-127 or All Dot decimal/ No default 7-15 characters 0-maximum SmartSwitch 6500 Reference Manual 2-81...
  • Page 106 SubId | Port VPCI ======================================================================= Total number of PVCs = 1 switch_prompt # 2-82 SmartSwitch 6500 Reference Manual Description Creates an IP/ATM PVC. To achieve this, you must first enter add pvc client (see “IPATMClient” for more details). You can...
  • Page 107 0 IP/ATM Client 0 PVC Table IP Address VPI/VCI =========================================================================== 10.1.1.7 0/130 switch_prompt # switch_prompt # delete ipatmpvc ClientNumber(0) : DestinationIP() : 10.1.1.7 Confirm(y/n)?: y switch_prompt # : 10.1.1.2 : 10.1.1.7 : 130 SmartSwitch 6500 Reference Manual 2-83...

  • Page 108: Ipatmstat

    [InARP Replies Recvd] Inverse ARP replies from a client received by the server. [InARP Unreachables] Inverse ARP unreachable clients. [InNARP NAKs] Number of inverse ARP NAKs received. 2-84 SmartSwitch 6500 Reference Manual Console Commands Value/Field Size Default 0-127 or All...
  • Page 109 Stats for IP/ATM server 50 =========================================================================== ARP Requests Recvd ARP Replies Sent InARP Requests Sent : InARP Replies Recvd : InARP Unreachables InARP NAKs switch_prompt # Description Displays statistics associated with the IP/ATM ARP server. ArpUnrch ArpNaks SmartSwitch 6500 Reference Manual 2-85...

  • Page 110: Laneclient

    LANEClient Use LANEClient to add or modify LANE clients on the switch. (Add a LANE client on the switch if you want to access the switch console using LANE.) 2p›F Use the Client attribute to delete, restart, or show LANE clients.
  • Page 111 NetMask(255.0.0.0): MTU(1516) switch_prompt # Description Creates a new LANE client on the switch. Add a LANE client if you want to access the switch command console using LANE. Changes an existing LANE client on the switch. Displays all or specified LANE clients on the switch.

  • Page 112: Lecmcast

    Multicast group MAC address. [MCAST Send Selective multicast Send VCC established by the client. VPI/VCI] Descriptions Operator Parameters/Permissions [ELANNumber] <elannumber> show lecmcast [LECId] <lecid> Administrator 2-88 SmartSwitch 6500 Reference Manual Value/Field Size 0-125 1-65279 or All Description Displays registered multicast groups. Default...
  • Page 113 # show lecmcast 0 LECId(0) LECID:2, ATMADDR: 39:00:00:00:00:00:00:00:00:00:28:E8:80:00:00:1D:6B:6E:CC:01 ---------------------------------------------------------------------------- McastId Group MAC Address MCAST SEND VPI/VCI LECID:3, ATMADDR: 39:00:00:00:00:00:00:00:00:00:28:E8:80:00:00:1D:5E:14:D4:01 ---------------------------------------------------------------------------- McastId Group MAC Address MCAST SEND VPI/VCI switch_prompt # : 01:80:C2:00:00:00 : 0/108 : 01:80:C2:00:00:00 : 0/128 SmartSwitch 6500 Reference Manual 2-89...

  • Page 114: Lecs

    Administrator stop lecs 2p›F The status of the LECS is persistent on reboot. If you reboot the switch while you have the LECS stopped, it will remain stopped after rebooting.You have to manually start the LECS again. 2-90 SmartSwitch 6500 Reference Manual at the switch prompt.
  • Page 115 Examples switch_prompt # start lecs NOTICE - 'LECS' ***** LECS started ***** switch_prompt # switch_prompt # stop lecs confirm (y/n)?: y NOTICE - 'LECS' ***** LECS shutdown ***** switch_prompt # SmartSwitch 6500 Reference Manual 2-91...

  • Page 116: Lecselan

    Address of the LES associated with the ELAN. [ELAN Type] The data-link type used by the ELAN. [MTU] Maximum transfer unit for the clients joining this ELAN. 2-92 SmartSwitch 6500 Reference Manual Value/Field Size Default 0-125 Up to 32 characters...
  • Page 117 BUS ATM address to assign to the ELAN (or if you want to change the ELAN type). Displays a specified ELAN configuration on the LECS. SmartSwitch 6500 Reference Manual 2-93 add lecselan add buselan, add show elan modify...
  • Page 118 MTU(1516) TLVSet() switch_prompt # switch_prompt # show lecselan ELANNumber(ALL) All the ELANs Configured on the LECS ============================================================================ ELAN Number ELAN Name : elan1 LES Address : 39:00:00:00:00:00:00:00:00:00:14:15:00:00:20:D4:14:15:00:04 ELAN Type : 802.3 : 1516 switch_prompt # 2-94 SmartSwitch 6500 Reference Manual...

  • Page 119: Lecselanlec

    Number of the ELAN preferred for the client. (Same as the [ELANNumber] input parameter.) Value/Field Size Default 13-20 byte hex-based/ No default Up to 59 characters SegId: 0-4095 No default Bridge Num: 0-15 Dot decimal/ No default 7-15 characters 0-125 1-32767 No default SmartSwitch 6500 Reference Manual 2-95...
  • Page 120 [ELANNumber] <elannumber> Administrator [ELANNumber] <elannumber> show lecselanlec 2-96 SmartSwitch 6500 Reference Manual Description Maps a LANE client to a preferred ELAN and TLV set. The client must have unique IP, ATM, and MAC address for an entry to be accepted. You do not have to all addresses, but whatever you specify has to be unique.
  • Page 121 # show lecselanlec ELANNumber(ALL): 1 Elan# MacAddr/RouteDesc LECAddress ============================================================================ 01:02:03:04:05:06 39:00:00:00:00:00:00:00:00:00:14:7B:00:00:20:D4:14:7B:00:01 switch_prompt # switch_prompt # modify lecselanlec LECAddress/MACddress/RouteDesc: 01:02:03:04:05:06 ELANNumber(0): 2 switch_prompt # switch_prompt # show lecselanlec ELANNumber(ALL): 2 Elan# MacAddr/RouteDesc LECAddress ============================================================================ 01:02:03:04:05:06 39:00:00:00:00:00:00:00:00:00:14:7B:00:00:20:D4:14:7B:00:01 switch_prompt # SmartSwitch 6500 Reference Manual 2-97...

  • Page 122: Lecselannametable

    ELAN number. (Same as [ELANNumber] input parameter.) [ELAN Name] Name for the ELAN. Descriptions Operator Parameters/Permissions [ELANNumber] <elannumber> [ELANName] <elanname> lecselannametable Administrator 2-98 SmartSwitch 6500 Reference Manual Value/Field Size 0-125 Up to 32 characters Description Adds an entry to the ELAN name table. Default No default...
  • Page 123 [ELANNumber] <elannumber> lecselannametable [ELANName] <elanname> Administrator show lecselannametable Examples switch_prompt # show lecselannametable ELAN ID ELAN Name ============================================================================== ELAN1 switch_prompt # Description Deletes an entry from the ELAN name table. Displays the ELAN name table. SmartSwitch 6500 Reference Manual 2-99...

  • Page 124: Lecselanpolicy

    [Assignment Policy] Policy type. (Same as the [Type] input parameter.) [Priority Value] Priority of the policy type. (Same as the [Priority] input parameter.) 2-100 SmartSwitch 6500 Reference Manual Value/Field Size 1-6500 1-7: byBestEffort (1), byATMAddress (2), byMacAddress (3), byRouteDescriptor (4),...
  • Page 125 LECSELANNameTable to manage entries in this table. Description Adds an entry to the ELAN policy table. Deletes an entry from the ELAN policy table. Modifies an entry in the ELAN policy table. Displays the ELAN policy table. SmartSwitch 6500 Reference Manual 2-101...
  • Page 126 # show lecselanpolicy Index Assignment Policy ============================================================================== Best Effort (Proprietary) By ATM Address By MAC Address By LAN Type By Packet Size switch_prompt # 2-102 SmartSwitch 6500 Reference Manual Priority Value 65001 2000 4000 5000 6000 : 3000 : 10 : 7000...

  • Page 127: Lecserrorlog

    [ATM Address] ATM address of the client associated with the error. [ErrorCode] Decimal code that shows why the error occurred (see Table 2-5). [SysUpTime] Time the error occurred with respect to switch up-time in hours, seconds, minutes. ÊÊ Descriptions Operator Parameters/Permissions...

  • Page 128: Table 2-5 Lecserrorlog Error Codes

    # switch_prompt # show lecserrorlog ATM Address ============================================================================== 39:00:00:00:00:00:00:00:00:00:14:17:80:00:20:d4:14:17:80 switch_prompt # 2-104 SmartSwitch 6500 Reference Manual Meaning Successful Response VERSION field of request contains a value higher than that supported. The parameters given are incompatible with the ELAN. SOURCE-LAN-DESTINATION duplicates a previously-registered LAN destination.

  • Page 129: Lecserrorlogcontrol

    Operator modify lecserrorlogcontrol show lecserrorlogcontrol command to delete all entries. Parameters/Permissions [ErrorLogStatus] <errorlogstatus> Administrator Value/Field Size Default Enable, Disable No default Description Enables or disables the LECS error log. Displays LECS error log control information. SmartSwitch 6500 Reference Manual 2-105...
  • Page 130 # set lecserrorlogcontrol ErrorLogStatus(Disabled) switch_prompt # switch_prompt # show lecserrorlogcontrol Administrative Status : Disabled Operation Status : Disabled Clear Log Flag : No operation Log Max Entries : 128 Log Last Entry Index switch_prompt # 2-106 SmartSwitch 6500 Reference Manual : enable...

  • Page 131: Lecspacketsizes

    Output Parameter Description [ELAN ID] ELAN number to use for the packet size request. (Same as the [ELANNumber] input parameter.) [Packet Size] Packet size associated with the ELAN number. Value/Field Size Default 0-125 4544, 9234, 18190 SmartSwitch 6500 Reference Manual 2-107...
  • Page 132 # switch_prompt # show lecspacketsizes ELAN ID Packet Size ============================================================================== 0 (implies "unspecified") 1516 4544 9234 18190 switch_prompt # 2-108 SmartSwitch 6500 Reference Manual Parameters/Permissions [ELANNumber] <elannumber> [PacketSize] <packetsize> Administrator [ELANNumber] <elannumber> [PacketSize] <packetsize> Administrator Administrator : 1516 : 1516 Description Adds an entry to the packet size table.

  • Page 133: Lecsstat

    Number of configuration requests with an invalid destination address. Number of configuration requests with an invalid MAC/ATM address. Number of LANE client configuration requests for which LECS could not find configuration. Number of configuration request errors. Number of configuration requests with insufficient information. SmartSwitch 6500 Reference Manual 2-109...
  • Page 134 Bad Configuration Requests Invalid Request Parameters Insufficient Resources Access Denied Invalid Requester Ids Invalid Destination Invalid Address No. LEC Configs Configuration Errors Insufficient Information switch_prompt # 2-110 SmartSwitch 6500 Reference Manual Description Displays statistical information about configuration requests to the LECS.

  • Page 135: Lecstlvparam

    Identifier of a specific TLV in the TLV set. Output Parameter Description [TlvIndex] Number that identifies the specific TLV parameter in the TLV set. [TLVDescription] Description of the TLV parameter. [Value] Value of the TLV parameter. Value/Field Size Default 1-32767 1-15 SmartSwitch 6500 Reference Manual 2-111...
  • Page 136 TLVDescription ============================================================================ Max Unknown Frame Count Confirm(y/n)?:y switch_prompt # 2-112 SmartSwitch 6500 Reference Manual Description Removes a TLV parameter from a TLV set on the LECS. before entering this command, so show lecstlvset you know the index number of the TLV parameter you want to delete.

  • Page 137: Lecstlvset

    Value/Field Size Default 1-32767 10-300 seconds No default 1-10 No default 1-160 seconds No default 0-65535 seconds No default No default 10-300 seconds No default 4-30 seconds No default 1-30 seconds No default SmartSwitch 6500 Reference Manual 2-113...
  • Page 138 [MPSRetryTimeMaximum] [MPSGiveupTime] [MPSDefaultHoldingTime] [MPCSetupFrameCount] [MPCSetupFrameTime] [MPCFlowProtocols] 2-114 SmartSwitch 6500 Reference Manual Description Time limit on flush response after flush request has been sent, before taking recovery action. Time since sending a frame to the LECS after which the LANE client may assume that the frame has been either discarded or delivered to the recipient.
  • Page 139 [MPCMaxRetryTime] MPC Retry Time Maximum. Output Parameter Description [TlvIndex] Number that identifies the specific TLV parameter in the TLV set. [TLVDescription] Description of the TLV parameter. [Value] Value of the TLV parameter. Value/Field Size Default SmartSwitch 6500 Reference Manual 2-115...
  • Page 140 [MPSGiveupTime] <mpsgiveuptime> [MPSDefaultHoldingTime] <mpsdefaultholdingtime> [MPCSetupFrameCount] <mpcsetupframecount> [MPCSetupFrameTime] <mpcsetupframetime> [MPCFlowProtocols] <mpcflowprotocols> [MPCRetryTime] <mpcretrytime> [MPCMaxRetryTime] <mpcmaxretrytime> Administrator delete [TLVSetNumber] <tlvsetnumber> lecstlvset Administrator 2-116 SmartSwitch 6500 Reference Manual Description Creates a TLV set on the LECS. Removes a TLV set from the LECS.
  • Page 141 [MPSGiveupTime] <mpsgiveuptime> [MPSDefaultHoldingTime] <mpsdefaultholdingtime> [MPCSetupFrameCount] <mpcsetupframecount> [MPCSetupFrameTime] <mpcsetupframetime> [MPCFlowProtocols] <mpcflowprotocols> [MPCRetryTime] <mpcretrytime> [MPCMaxRetryTime] <mpcmaxretrytime> Administrator [TLVSetNumber] <tlvsetnumber> show lecstlvset Description Changes an existing TLV set on the LECS. Displays a TLV set on the LECS. SmartSwitch 6500 Reference Manual 2-117...
  • Page 142 TlvIndex TlvDescription =========================================================================== TLVSet 2 : Control Timeout Max Unknown Frame Time Arp Aging Time Forward Delay Confirm(y/n)?:y switch_prompt # 2-118 SmartSwitch 6500 Reference Manual : 200 : 50 : 50000 : 250 : 27 : 27 : 2000 Value...
  • Page 143 ARP Response Time Flush Timeout Path Switching Delay Local Seg Id Multicast Send VCC Type Connection Complete Time switch_prompt # : 250 : 40 : 40000 : 200 : 20 : 20 : 2500 Value 40000 2500 SmartSwitch 6500 Reference Manual 2-119...

  • Page 144: Lecsvcc

    Descriptions Operator Parameters/Permissions [VC Type] <vctype> show [VPI/VCI] <vpi/vci> lecsvcc Examples switch_prompt # show lecsvcc VC Type VPI/VCI =========================================== 0/31 0/33 0/112 switch_prompt # 2-120 SmartSwitch 6500 Reference Manual Descriptions Displays the active VCCs (SVCs and PVCs) on the LECS.

  • Page 145: Les

    Administrator stop les at the switch prompt. start les stop les Description Shows LES and BUS status. Starts the LES and BUS on the switch. Stops the LES and BUS on the switch. SmartSwitch 6500 Reference Manual 2-121...
  • Page 146 Bus Connect 39:00:00:00:00:00:00:00:20:D4:14:15:00:00:20:D4:14:15:00:00 switch_prompt # switch_prompt # stop les STOPPING LES/BUS Confirm(y/n)?:y NOTICE - 'ZLESSRV' ***** LES shutdown ***** switch_prompt # start les NOTICE - 'ZLESSRV' ***** LES started ***** switch_prompt # NOTICE - 'ZLESSRV' LES sendjoinresp: 2-122 SmartSwitch 6500 Reference Manual...

  • Page 147: Lesarp

    MAC (media access control) address/Route Descriptor of the client. [ATM Address] ATM address of the client. Descriptions Operator Parameters/Permissions [ElanNumber] <elannumber> show lesarp Value/Field Size 0-125 Description Displays the ARP table for the specified ELAN. SmartSwitch 6500 Reference Manual 2-123 Default...
  • Page 148 Example switch_prompt # show lesarp ELANNumber(0) ARP Table entries for ELAN =========================================================================== LECId MACAddr/RouteDesc: 00:20:D4:14:22:80 ATM Address : 39:00:00:00:00:00:00:00:20:D4:14:22:80:00:20:D4:14:22:80:00 switch_prompt # 2-124 SmartSwitch 6500 Reference Manual ELAN001...

  • Page 149: Lesclient

    VPI/VCI (virtual path/channel identifier) values of control direct VCC (virtual channel connection) or multicast send VCC. [ATM address] ATM address of the client. [Flags] Indicates whether the client is a Proxy or a Non-Proxy client. Value/Field Size Default 0-125 1-65279 SmartSwitch 6500 Reference Manual 2-125...
  • Page 150 Client table entries for ELAN =========================================================================== LECId VPI/VCI : 0/215 ATM Address : 39:00:00:00:00:00:00:00:20:D4:14:2F:00:00:20:D4:14:2F:00:00 Flags : NONPROXY switch_prompt # 2-126 SmartSwitch 6500 Reference Manual Description Removes a client from the specified ELAN. Displays information about all clients that have joined the specified ELAN. ELAN000...

  • Page 151: Leselan

    0-125 Up to 32 characters PVC, SVC 802.3 (Ethernet) 802.3 802.5 (Token Ring) Yes: VCC is PMP No: VCC is PTP 1516, 1580, 4544, or 1516 9234 Yes, No Yes, No Positive integer Positive integer SmartSwitch 6500 Reference Manual 2-127...
  • Page 152 <distributevcctype> [MTU] <maxframesize> [Distribute] <controldistributevccoption> [BUSATMAddress] <busatmaddress> Administrator 2-128 SmartSwitch 6500 Reference Manual Value/Field Size All, Proxy 13-20 byte hex-based/ Up to 59 characters Description Creates a specified ELAN on the LES. Each ELAN must have both an LES and a BUS assigned to it.
  • Page 153 Removes a specified ELAN from the LES and drops all the clients connected to it. Modifies parameters on the specified ELAN of the LES by deleting and then recreating the ELAN. Displays which ELANs are currently on the LES. SmartSwitch 6500 Reference Manual 2-129...
  • Page 154 Connection Method : SVC Distribute VPI/VCI : 0/0 Distribute Method : PROXY ELAN Type : 802.3 Multipoint : YES Error Logging : NO Min TD Negotiation : NO BUS Address : 39:00:00:00:00:00:00:00:20:D4:14:15:00:00:20:D4:14:15:66:02 2-130 SmartSwitch 6500 Reference Manual : 102 :102...

  • Page 155: Leserrorlog

    [ATM Address] ATM address associated with the error. [ErrorCode] Decimal code that indicates why the error occurred (See Table 2-6). [SysUpTime] Time the error occurred with respect to switch up-time in hours, minutes, and seconds. ÊœÀÊ ÊVœ““>˜`ÃÊÍœÊi˜>L•iÊœÀÊ`ˆÃ>L•iÊÍ…iÊ>..Ê modify leselan Value/Field Size...

  • Page 156: Table 2-6 Leserrorlog Error Codes

    Invalid LAN destination Invalid ATM address No configuration LE_CONFIGURE Error Insufficient information TLV not found 2-132 SmartSwitch 6500 Reference Manual Description Clears the LES error log. Displays the LES error log. Meaning Successful Response VERSION field of request contains a value higher than that supported.
  • Page 157 Examples switch prompt # show leserrorlog ELANNumber(ALL) Error Log Entries for VLAN : 1 ATM Address 39:1:2:3:4:5:6:7:8:9:0:1:2:3:4:5:6:7:8:9 switch prompt # clear leserrorlog ELANNumber(ALL) Clearing ALL LES ELAN ErrorLog Confirm(y/n)?:y switch prompt # ErrorCode SysUpTime 01:02:03 SmartSwitch 6500 Reference Manual 2-133...

  • Page 158: Leslecstat

    LES from this LEC. [Forwards] Number of ARP requests forwarded by the BUS and the LES from this LEC. [Sends] Number of requests or responses sent to this LEC by LES. 2-134 SmartSwitch 6500 Reference Manual Value/Field Size Default 0-125...
  • Page 159 : 39:00:00:00:00:00:00:00:20:D4:14:22:80:00:20:D4:15:D4:83:00 Receives : 10405 Forwards : 10365 Sends switch_prompt # Description Displays statistical information about LANE clients on a specific ELAN. To verify the LEC ID, enter show client first to obtain the ELAN number. SmartSwitch 6500 Reference Manual 2-135...

  • Page 160: Lesstat

    [Join duplicate LAN destination errors] [Reg. duplicate LAN destination errors] [Join duplicate ATM destination errors] [Reg. duplicate ATM destination errors] [Join insufficient resource errors] 2-136 SmartSwitch 6500 Reference Manual Value/Field Size 0-125 or All Description Successful join responses sent out by the LES.
  • Page 161 Invalid ATM address errors for join request. Invalid ATM address errors for register request. Description Displays statistical information about the specified ELAN on the LES. Clears statistical information about the specified ELAN on the LES. SmartSwitch 6500 Reference Manual 2-137...
  • Page 162 Join invalid LAN destination errors Reg. invalid LAN destination Join invalid ATM address errors Reg. invalid ATM address errors switch_prompt # switch_prompt # clear lesstat ELANNumber(ALL) Clear LES ELAN 3 Statistics Confirm(y/n)?: y switch_prompt # 2-138 SmartSwitch 6500 Reference Manual :102 errors errors...

  • Page 163: Mcastclients

    [ELANNumber] <elannumber> [McastId] <mcastid> Administrator Description LEC ID of the client. ATM address of the client. Selective multicast Send VCC information. Description Displays clients associated with a multicast group. Value/Field Default Size 0-125 2-64 or All SmartSwitch 6500 Reference Manual 2-139...
  • Page 164 # show mcastclients MCASTID: 2, GROUP MACADDR : 01:80:C2:00:00:00 ------------------------------------------------- LECId ATM Address Selective MCAST Send VPI/VCI : 0/108 LECId ATM Address Selective MCAST Send VPI/VCI : 0/128 switch_prompt # 2-140 SmartSwitch 6500 Reference Manual : 39:00:00:00:00:00:00:00:00:00:28:E8:80:00:00:1D:6B:6E:CC:01 : 39:00:00:00:00:00:00:00:00:00:28:E8:80:00:00:1D:5E:14:D4:01...

  • Page 165: Minmaxtableindex

    Vœ““>˜`°Ê+œÀÍ0À>vvˆV+œ˜}iÃ͈œ˜Ê>••œÝÃÊßœÖÊÍœÊÃiÍÊvalues for minimum and maximum threshold (in number of cells) for a specified priority queue at a port. If the number of cells received by the switch on the specified priority queue exceeds the maximum threshold, the switch discards the cell.

  • Page 166: Mynmaddr

    MyNMAddr that matches its Ethernet address. However, MyNMAddr can be changed to an IP address that corresponds to a LANE or IP/ATM (IP over ATM) client on the switch. This allows the switch to be managed through an ATM interface.

  • Page 167: Netprefix

    Net prefix within the ATM address. Last three bytes of the chassis MAC address Value/Field Size 1A1 to 8B4 (for physical ports), 1A1.n to 8B4.n (for virtual ports), or All chassis MAC address selector byte Default No default SmartSwitch 6500 Reference Manual 2-143...
  • Page 168 TSM, you can display existing net prefix information using the show Output Parameter Description [Port #] Port number on the switch. (Same as the [PortNumber] input parameter.) [NetPrefix] Net prefix within the ATM address. Descriptions Operator Parameters/Permissions [PortNumber] <portnumber>...
  • Page 169 PortNumber(ALL) : 1a1 NetPrefix() : 39:00:00:00:00:00:00:00:00:00:20:D4:14:15:00 switch_prompt # switch_prompt # show netprefix PortNumber :( ALL ): Port# NetPrefix =============================================================== 39:00:00:00:00:00:00:00:00:00:20:D4:14:15:00 39:00:00:00:00:00:00:00:00:00:20:D4:14:16:00 switch_prompt # switch_prompt # delete netprefix PortNumber(ALL) : 1a2 NetPrefix() : 39:00:00:00:00:00:00:00:00:00:20:D4:14:16:00 switch_prompt # SmartSwitch 6500 Reference Manual 2-145...

  • Page 170: Networkclock

    Operator Parameters/Permissions modify networkclock [PortNumber] <portnumber> Administrator Administrator show networkclock 2-146 SmartSwitch 6500 Reference Manual Value/Field Size CPU or CPU.1 Description Sets the port used as the network clock source. Displays the port used as the network clock source. Default...
  • Page 171 Examples switch_prompt # set networkclock PortNumber(CPU) switch_prompt # switch_prompt # show networkclock Network clock sourced on port CPU switch_prompt # SmartSwitch 6500 Reference Manual 2-147...

  • Page 172: Passwd

    Changing Password for User Administrator New Password: levelone Reenter Password: levelone Password Changed Successfully switch_prompt # 2-148 SmartSwitch 6500 Reference Manual Value/Field Size 0-8 characters (0 is no password) 0-8 characters (0 is no password) Description Changes the password of the current or lower-privileged user.

  • Page 173: Ping

    # start ping DestIP() : 204.95.77.254 Count(1) : 1 204.95.77.254 is alive switch_prompt # Value/Field Size 5-8 characters 1-100 Description Starts the pinging of the external destination you are trying to reach. SmartSwitch 6500 Reference Manual 2-149 Default Registered IP address...

  • Page 174: Pnniinterface

    PnniInterface Use PnniInterface to set or display characteristics to configure a switch port for PNNI routing. Operators modify, show Parameters Input Parameter Description [PortNumber] Port number on the switch. You can specify a physical or virtual port. [AdmnWtCbr] Administrative weight for the constant bit rate (CBR) service category.
  • Page 175 [AdminWtRtVbr]<admnwtrtvbr> [AdminWtNrtVbr] <admnwtnrtvbr> [AdminWtABR] <admnwtabr> [AdminWtUBR] <adminwtubr> [AggregationToken] <aggregationtoken> [RccServCategory] <rccservcategory> Administrator Administrator show pnniinterface command displays the following additional fields. show pnniinterface Description Sets parameters for PNNI routing. Displays parameters for PNNI routing. SmartSwitch 6500 Reference Manual 2-151...
  • Page 176 : 5040 Admin Weight UBR : 5040 Admin Weight ABR : 5040 Rcc Service Category : NRTVBR Rcc Traffic Descr Index : 0 switch_prompt # 2-152 SmartSwitch 6500 Reference Manual : 1a1 AdmnWt AdmnWt AdmnWt NRTVBR 5040 5040 5040 5040...

  • Page 177: Pnnilink

    PnniLink Use PnniLink to display characteristics of all PNNI links connected directly to the switch. The characteristics include operation of each link and the relationship between each link and the nodes it connects. 2p›F Use PnniNetworkLink to display links not connected directly to the switch but known to the switch through the exchange of database information.
  • Page 178 [Upnode ATM Addr] ATM address of the upnode. [Common Peer Group Id] Peer group ID shared by the local node (on switch) and upnode. [SVCC RCC Index] Index of switched virtual channel connection of routing control channel on link. [Rcv Hellos] Number of Hello packets received over the link.
  • Page 179 Common Peer Group Id: NULL SVCC RCC Index Rcv Hellos : 15953 Xmt Hellos : 15980 Hello State Link Type 2WayInside Lowest Level Horizontal Link CommonOut Outside and Uplink CommonOut Outside and Uplink 2WayInside Horizontal Link to/from LGN SmartSwitch 6500 Reference Manual 2-155...

  • Page 180: Pnnimetrics

    PnniMetrics Use PnniMetrics to manage PNNI metrics that apply to a logical node on the switch. Operators add, delete, show Parameters Input Parameter [MetricsTag] [TrafficDirection] [ServiceCategory] [GCAC_CLP] [AdminWt] [MaxCellRate] [AvailableCellRate] [MaximumCellTransferDelay] [CellDelayVariation] 2-156 SmartSwitch 6500 Reference Manual Description Number associated with a group of traffic parameters.
  • Page 181 An index into the set of parameters associated with the given tag and direction. Indicates whether advertised GCAC parameters apply for CLP=0 traffic or for CLP=0+1 traffic. Administrative weight for the specified service categories from the switch to the remote end of the PNNI link. Service category to which the parameters apply.
  • Page 182 [Cell Loss Rate CLP0] [Cell Loss Rate CLP0+1] [Cell Rate Margin] [Variance Factor] 2-158 SmartSwitch 6500 Reference Manual Description Cell delay variation (in microseconds) for the specified service category. Cell loss ratio for CLP=0 traffic for the specified service category. The cell loss...
  • Page 183 NRTVBR CLP0 5040 CBR RTVBR CLP0+1 5040 CLP0+1 5040 CLP0 5040 NRTVBR CLP0 5040 CBR RTVBR CLP0+1 5040 CLP0+1 5040 CLP0 5040 NRTVBR Description Creates a PNNI metric. Deletes a PNNI metric. Displays PNNI metrics. SmartSwitch 6500 Reference Manual 2-159...
  • Page 184 : Not used Cell Loss Ratio CLP0 : Not used Cell Loss Ratio CLP0+1 : Not used Cell Rate Margin : Not used Variance Factor : Not used The metrics was deleted successfully. switch_prompt # 2-160 SmartSwitch 6500 Reference Manual...

  • Page 185: Pnnineighbor

    PnniNeighbor Use PnniNeighbor to display PNNI neighbors of any logical node on the switch. The PNNI neighbors are themselves logical nodes on other switches. Each PNNI neighbor is linked directly to one of the local logical nodes. (The logical nodes on the switch are viewed as local logical nodes.) PnniNeighbor displays node ID and database exchange information for the neighbor nodes.
  • Page 186 Descriptions Operator Parameters / Permissions show pnnineighbor [Num] <num> Administrator 2-162 SmartSwitch 6500 Reference Manual Description Displays the PNNI neighbor(s) of the switch. You might have configured multiple logical nodes on the switch, each having a different set of neighbors.
  • Page 187 Rcv Ptsps Xmt Ptsps Rcv Ptse Reqs Xmt Ptse Reqs Rcv Ptse Acks Xmt Ptse Acks Port Count More(<space>/q)?: Ports connected the neighbor: Port Number Used for Flooding ================================= switch_prompt # Neighbor Node Id State SmartSwitch 6500 Reference Manual 2-163...

  • Page 188: Pnninetworklink

    PnniNetworkLink Use PnniNetworkLink to display characteristics of the PNNI hierarchy as seen from a logical node on the switch. The characteristics include the operation of all links and nodes known to the logical node through the exchange of database information. The logical node on the switch is viewed as the local node.
  • Page 189 Integer that associates a set of traffic parameters with this link. Descriptions Operator Parameters / Permissions [Num] <num> show pnninetworklink Administrator command displays the following additional fields. Description Displays information on the link(s) within the PNNI hierarchy as seen from the local logical node. SmartSwitch 6500 Reference Manual 2-165...
  • Page 190 Peer Group Id : 50:39:00:00:00:00:00:00:00:00:00:00:00:00 Aggr Token Remote Node Id: 50:a0:39:00:00:00:00:00:00:00:00:00:28:c1:80:00:20:d4:28:c1:ff:0 Remote Port Id: 57344 Vp Capability : False Ptse Id Metrics Tag : 1118495 switch_prompt # 2-166 SmartSwitch 6500 Reference Manual Orig Port Id Remote Port Id 4096 45056 16384 57344 45056 4096...

  • Page 191: Pnninetworknode

    PnniNetworkNode Use PnniNetworkNode to display all nodes within the PNNI hierarchy as seen from a logical node on the switch. The logical node on the switch is viewed as the local node. The other nodes are viewed as remote nodes.
  • Page 192 When the remote node is a Peer Group Leader, this indicates the Peer Group Leader of the parent peer group of the node. If the remote node is not leader of its peer group, this parameter is set to NULL. 2-168 SmartSwitch 6500 Reference Manual...
  • Page 193 Leader Priority: 0 Preferred PGL : 50:a0:39:00:00:00:00:00:00:00:00:00:14:41:80:00:20:d4:14:41:ff:00 Parent Node Id : Null Parent ATM Addr: Null Parent PG Id : Null Parent PGL Id : Null switch_prompt # Description Displays nodes within the PNNI hierarchy. SmartSwitch 6500 Reference Manual 2-169...

  • Page 194: Pnninode

    PnniNode Use PnniNode to set or display logical nodes on the switch. If the switch is represented on multiple levels of the PNNI hierarchy, it has a separate logical node (and node ID) for each representation. Operators add, delete, modify, show...
  • Page 195 [Peer Group Id] Identifier of the peer group of which the switch is a part. [Rst Transit] Whether or not the switch is restricted to not allowing support of SVCs transiting it. Possible values are: True and False. [Complex Rep.] Whether or not the switch uses the complex node representation.
  • Page 196 Are you sure you want to delete the node (yes/No)? : y The node has been deleted successfully. switch_prompt # 2-172 SmartSwitch 6500 Reference Manual Description Adds a logical node at the switch. Deletes a logical node at the switch.
  • Page 197 Admin Status : UP Oper Status : UP ATM Address : 39:00:00:00:00:00:00:00:00:01:28:de:80:00:20:d4:28:de:ff:00 Peer Group Id: 50:39:00:00:00:00:00:00:00:00:01:00:00:00 Rst Transit : FALSE Complex Rep : FALSE Rst Branching: FALSE DB Overload : FALSE Ptse : 23 switch_prompt # SmartSwitch 6500 Reference Manual 2-173...
  • Page 198 7˜ÍiÀÜ>•Ê>ÍÊÝ…ˆV…ÊÍ…iÊÃ݈ÍV…Ê`ÀˆÜiÃÊœÀˆ}ˆ˜>† ͈œ˜Ê+0..Ãʈ˜ÊÍ…iÊ>LÃi˜ViÊœvÊÍÀˆ}}iÀi`Ê Ö«`>ÍiÃ°Ê Q+0..>ˆvi͈“i4>VÍœÀR "ÊÜ>•ÖiÊ-iÞ«ÀiÃÃi`Ê>ÃÊ>Ê«iÀVi˜Í>}i®ÊÖÃi`ÊÍœÊ V>•VÖ•>ÍiÊÍ…iʈ˜ˆÍˆ>•Ê͈“iÊœvÊÃi•v†œÀˆ}ˆ˜>Íi`Ê +0..ðÊ0…iÊÀiÃÖ•ÍÊœvʓ͈֕«•ßˆ˜}ÊÍ…iÊ +0..-ivÀiÃ…7˜ÍiÀÜ>•ÊLßÊÍ…ˆÃÊÜ>•ÖiʈÃÊÍ…iʈ˜ˆ† ͈>•Ê•ˆvi͈“iÊÍ…iÊÃ݈ÍV…Ê«•>ViÃʈ˜ÍœÊÃi•v†œÀˆ}ˆ† ˜>Íi`Ê+0..Ã°Ê 2-174 SmartSwitch 6500 Reference Manual Value/Field Size Default Positive integer Positive integer in units of 100 microseconds Positive integer in units of 100 microseconds Positive integer in units of seconds...
  • Page 199 [Node Index] Identifier for a logical node on the switch. [Ptse Holddown] Initial value for the PTSE holddown timer to limit the rate at which the switch can re-originate PTSEs. [Hello Holddown] Initial value for the Hello holddown timer that limits the rate at which the switch sends Hellos.

  • Page 200: Pnninodetimer

    [PtseHolddown] <ptseholddown> modify [HelloHolddown] <helloholddown> pnninodetimer [HelloInterval] <hellointerval> [HelloInactivityFactor] <helloinactivityfactor> [HorizontalLinkInactivityTimer] <horizontallinkinactivitytimer> [PTSERefreshInterval] <ptserefreshinterval> [PTSELifetimeFactor] <ptselifetimefactor> [RxmInterval] <rxminterval> [PeerDelayedAckInterval] <peerdelayedackinterval> Administrator Administrator show pnninodetimer 2-176 SmartSwitch 6500 Reference Manual Description Sets PNNI protocol timer values. Displays PNNI protocol timer values.
  • Page 201 : 20 (units of 100 millisecs) : 20 (units of 100 millisecs) : 15 secs : 120 secs : 1800 secs : 200 : 5 secs : 10 (units of 100 millisecs) : 32 : 19 : 32 SmartSwitch 6500 Reference Manual 2-177...

  • Page 202: Pnnipeergroupid

    PnniPeerGroupId Use PnniPeerGroupId to set the peer group ID of a logical node on the switch. Operators modify Parameters This attribute has no output parameters. Input Parameter Description [NodeIndex] Identifier for a logical node on the switch. [PeerGroupId] The ID of the peer group of which this node is to become a member.

  • Page 203: Pnnipglelection

    PnniPglElection Use PnniPglElection to set or display PNNI peer group election characteristics for the switch. The characteristics are with respect to a specific logical node on the switch (identified by the NodeIndex input parameter). Operators modify, show Parameters Input Parameter...
  • Page 204 Time at which the current PGL established itself. [Election State] Indicates the state that the switch is in with respect to the PGL election that takes place in the peer group. Possible values are: Starting, Awaiting, Awaiting Full, Initial Delay, Calculating, Await Unanimity, Operating as PGL, Operating not as PGL, Hung Election, and Waiting Reelection.
  • Page 205 : 50:a0:39:00:00:00:00:00:00:00:00:00:28:de:80:00:20:d4:28:de:ff:00 Peer Group Leader : 50:a0:39:00:00:00:00:00:00:00:00:00:28:de:80:00:20:d4:28:de:ff:00 Active Parent Node Id : 48:50:39:00:00:00:00:00:00:00:00:00:00:00:00:00:20:d4:28:de:ff:00 switch_prompt # Description Sets PNNI election parameters for the switch. Displays PNNI election parameters for the switch. : 20 : 35 : 20 SmartSwitch 6500 Reference Manual 2-181...

  • Page 206: Pnniptse

    PnniPtse Use PnniPtse to display PTSEs stored in the topology database of the switch. Operators show Parameters Input Parameter Description [Num] Index number assigned by the console that indicates which node originating the PTSE is displayed. Use the command to get a list of index numbers.
  • Page 207 Description ================================================================================ Nodal information Horizontal links Exterior address switch_prompt # Description Displays PTSEs in topology database of switch. PTSE Id Seq No. Checksum 22746 23862 50355 Ptse Count Lifetime 0 secs 99 secs 337 secs SmartSwitch 6500 Reference Manual 2-183...

  • Page 208: Pnnireachableaddress

    PnniReachableAddress Use PnniReachableAddress to display a list of reachable addresseses from the switch. The addresses are advertised by remote logical nodes that are visible to the switch (logical nodes from which the switch receives database information). Operators show Parameters Input Parameter...
  • Page 209 Adver. Node Id: 48:50:39:00:00:00:00:00:00:00:00:00:00:00:00:00:20:d4:14:41:ff:0 Adver. Port Id: 0 Address Index : 6 ATM Address : 39:00:00:00:00:00:00:00:00:00:28:e6:00:00:00:00:00:00:00 Prefix Length : 104 switch_prompt # Description Displays information on all reachable addresses from each node visible to the switch. SmartSwitch 6500 Reference Manual 2-185...

  • Page 210: Pnniscopemapping

    PnniScopeMapping Use PnniScopeMapping to set or display the mappings of membership and connection scope from UNI to PNNI terms. The mappings are from the perspective of a logical node on the switch. Operators modify, show Parameters Input Parameter Description [NodeIndex] Identifier for a logical node on the switch.
  • Page 211 Identifier for a logical node on the switch. [Local Network] Highest level of PNNI hierarchy (smallest PNNI routing level) that lies within the UNI scope value localNetwork(1). Value/Field Size Default 0-104 0-104 0-104 0-104 0-104 0-104 0-104 0-104 SmartSwitch 6500 Reference Manual 2-187...
  • Page 212 Highest level of PNNI hierarchy (smallest PNNI routing level) that lies within the UNI scope value interRegional(14). [Global] Highest level of PNNI hierarchy (smallest PNNI routing level) that lies within the UNI scope value global(15). 2-188 SmartSwitch 6500 Reference Manual...
  • Page 213 OrganizationMinusOne(72) IntraOrganization(64) OrganizationPlusOne(64) CommunityMinusOne(64) IntraCommunity(48) CommunityPlusOne(48) Regional(32) InterRegional(32) Global(0) switch_prompt # <nodeindex> Description Sets mappings of membership and organizational scope between UNI and PNNI. Displays mappings of membership and organizational scope between UNI and PNNI. SmartSwitch 6500 Reference Manual 2-189...
  • Page 214 Intra Organization Organization Plus One Community Minus One Intra Community Community Plus One Regional Inter Regional Global switch_prompt # 2-190 SmartSwitch 6500 Reference Manual : 96 : 96 : 96 : 80 : 80 : 72 : 72 : 64...

  • Page 215: Pnnistats

    Number of connection setup messages including DTL stacks originated by the switch that have cranked back to the at all levels of the hierarchy. Number of alternate DTL stacks that the switch has computed and placed into signalling messages as the DTLOriginator.
  • Page 216 Alternate Route Count Border Route Fail Count Originator Route Fail Count Border Route Fail Unreachable Originator : 0 Route Fail Unreachable Border switch_prompt # 2-192 SmartSwitch 6500 Reference Manual Description Shows PNNI statistics for the switch. : 1.0 : 1.0...

  • Page 217: Pnnisummaryaddress

    Use PnniSummaryAddress to manage summary address prefixes for the switch. A summary address is an abbreviation of a set of addresses, represented by an address prefix that all of the summarized addresses have in common. The switch advertises this information. Calls to any destinations matching the summary address may be routed to the switch.
  • Page 218 Identifier of a logical node on the switch. [Prefix Length] Prefix length for the summary. [State] Whether or not the summary is currently being advertised by the switch to peer group. Possible values are: Active, Advertised, or Inactive. Descriptions Operator Parameters / Permissions [NodeIndex] <nodeindex>...
  • Page 219 Summary Address : 34:00:00:00:00:00:00:00:00:00:00:00:01 Prefix Length : 104 Summary Type : Internal Suppress : False State : Advertised switch_prompt # : 45:00:01 : 24 : 45:00:01 : 24 Summary Type Suppress False False False False SmartSwitch 6500 Reference Manual 2-195...

  • Page 220: Pnnisvccrcc

    Index number of the SVCC as assigned by the console. Output Parameter Description Q.ÜVVÊ-VVÊ7˜`iÞR 7˜`iÞʘ֓LiÀÊœvÊÍ…iÊ.7++Ê>ÃÊ>ÃÈ}˜i`ÊLßÊÍ…iÊVœ˜Ãœ•i° Q7+7R 7ˆÀÍÖ>•Ê«>ͅʈ`i˜ÍˆvˆiÀÊœvÊÍ…iÊ.7++° Q7+7R 7ˆÀÍÖ>•ÊV…>˜˜i•Êˆ`i˜ÍˆvˆiÀÊœvÊÍ…iÊ.7++°Ê Q+œÀÍR +…ßÈV>•Ê«œÀÍʘ֓LiÀÊœ˜ÊÍ…iÊÃ݈ÍV…° Q-VÜÊ6i••œÃR !Ö“LiÀÊœvÊ6i••œÊ«>VŽiÍÃÊÀiViˆÜi`ÊLßÊÍ…iÊÃ݈ÍV…° Q9“ÍÊ6i••œÃR !Ö“LiÀÊœvÊ6i••œÊ«>VŽiÍÃÊÍÀ>˜Ã“ˆÍÍi`ÊvÀœ“ÊÍ…iÊÃ݈ÍV…° Q6i••œÊ.Í>ÍiR 7˜`ˆV>ÍiÃÊÍ…iÊÃÍ>ÍiÊœvÊÍ…iÊ6i••œÊ«ÀœÍœVœ•ÊvÀœ“ÊÍ…iÊ•œ}ˆV>•Ê˜œ`i°ÊÊÊ+œÃÈL•iÊÜ>•ÖiÃÊ>Ài\Ê-œÝ˜]Ê "ÍÍi“«Í]Ê£8>ß7˜Ãˆ`i]ÊÔ8>ß7˜Ãˆ`i]Ê£8>ß#ÖÍÈ`i]ÊÔ8>ß#ÖÍÈ`i]Ê>˜`Ê+œ““œ˜#ÖÍÈ`i° 2-196 SmartSwitch 6500 Reference Manual Value/Field Size Default Positive integer Positive integer or All...
  • Page 221 # show pnnisvccrcc NodeIndex(2) SvccRccIndex(ALL) Svcc Rcc Index Port ================================================================================ switch_prompt # Description Displays status of the SVCC used as the routing control channel for the logical node. Rcv Hellos Xmt Hellos 113472 113534 Hello State 2WayInside SmartSwitch 6500 Reference Manual 2-197...

  • Page 222: Pnnitnsroute

    PnniTnsRoute Use PnniTnsRoute to manage routes to transit networks that are visible to the switch. Operators add, delete, show Parameters Input Parameter Description [Num] Index number of the route as assigned by the console. Use the show pnnitnsroute all to get a list of index numbers.
  • Page 223 …iÞ>`iVˆ“>•ÊvœÀ“>Í°Ê Q"`ÜÊ+œÀÍÊ7`R 0…iÊÜ>•ÖiÊœvÊÍ…iÊÀi“>ˆ˜ˆ˜}Ê•ˆvi͈“iÊvœÀÊÍ…iÊ}ˆÜi˜Ê+0..Ê>ÃʈÍÊ>««i>ÀÃʈ˜ÊÍ…iÊ•œV>•ÊÍœ«œ•œ}ßÊ `>Í>L>Ãi°Ê.Þ«ÀiÃÃi`ʈ˜ÊÃiVœ˜`ð Q-œÖÍiÊ0ß«iR 0ß«iÊœvÊÀi>V…>Lˆ•ˆÍßÊvÀœ“ÊÍ…iÊÃ݈ÍV…ÊÍœÊÍ…iÊÍÀ>˜ÃˆÍʘiÍÝœÀŽ°Ê+œÃÈL•iÊÜ>•ÖiÃÊ>Ài\Ê.ÞÍiÀˆœÀÊ>˜`Ê #Í…iÀ° Q+ÀœÍœVœ•R -œÖ͈˜}Ê“iV…>˜ˆÃ“ÊÖÃi`ÊÍœÊ`iÍiÀ“ˆ˜iÊVœ˜˜iV͈܈ÍßÊLiÍÝii˜ÊÍ…iÊÃ݈ÍV…Ê>˜`ÊÍ…iÊÀi>V…>L•iÊ >``ÀiÃÃÊ«ÀivˆÞ°ÊÊ+œÃÈL•iÊÜ>•ÖiÃÊ>Ài\Ê#Í…iÀ]Ê>œV>•]Ê }“Í]Ê>˜`Ê+!!7° Q.Vœ«iR +!!7ÊÃVœ«iÊœvÊ>`ÜiÀ͈Ãi“i˜ÍÊ-•iÜi•ÊœvÊ+!!7Ê…ˆiÀ>ÀV…ß®ÊvÀœ“ÊÍ…iÊÃ݈ÍV…ÊÍœÊÍ…iÊÀœÖÍi° Q7«Ê+>«°R 8…iÍ…iÀÊœÀʘœÍÊ7++ÃÊV>˜ÊLiÊiÃÍ>L•ˆÃ…i`ÊvÀœ“ÊÍ…iÊ>`ÜiÀ͈Ș}ʘœ`iÊÍœÊÍ…iÊÍÀ>˜ÃˆÍʘiÍÝœÀŽ° Q iÍÀˆVÃÊ0>}R Metrics tag assigned to the connection with the transit network. Q+0..Ê7`R 4œÀÊÀi>V…>L•iÊ>``ÀiÃÃiÃÊ•i>À˜i`ÊÍ…ÀœÖ}…Ê+!!7]ÊÍ…ˆÃÊ«>À>“iÍiÀÊVœ˜Í>ˆ˜ÃÊÍ…iÊÜ>•ÖiÊœvÊÍ…iÊ +0..ʈ`i˜ÍˆvˆiÀÊvœÀÊÍ…iÊ+0..ÊÍ…>ÍʈÃÊœÀˆ}ˆ˜>Íi`ÊLßÊÍ…iÊœÀˆ}ˆ˜>͈˜}ʘœ`iÊ>˜`ÊVœ˜Í>ˆ˜ÃÊÍ…iÊ ˆ˜vœÀ“>͈œ˜Ê}ÀœÖ«-îÊ`iÃVÀˆLˆ˜}ÊÍ…iÊÀi>V…>L•iÊ>``ÀiÃðÊÊ4œÀÊÀi>V…>L•iÊ>``ÀiÃÃiÃÊ•i>À˜i`ÊLßÊ “i>˜ÃʜͅiÀÊÍ…>˜Ê+!!7]ÊÍ…ˆÃÊ«>À>“iÍiÀʈÃÊÃiÍÊÍœÊãiÀœ° Q#«iÀÊ.Í>ÍÖÃR 8…iÍ…iÀÊœÀʘœÍÊÍ…iÊÀi>V…>L•iÊ>``ÀiÃÃÊ«ÀivˆÞʈÃÊœ«iÀ>͈œ˜>••ßÊÜ>•ˆ`Ê>˜`ÊÝ…iÍ…iÀʈÍʈÃÊ>`ÜiÀ† ͈Ãi`ÊLßÊÍ…ˆÃʘœ`i°ÊÊ+œÃÈL•iÊÜ>•ÖiÃÊ>Ài\Ê"`ÜiÀ͈Ãi`]Ê"V͈Üi]Ê>˜`Ê7˜>V͈Üi° SmartSwitch 6500 Reference Manual 2-199...
  • Page 224 [Index} <index> [RouteType] <routetype> [PnniScope] <pnniscope> [MetricsTag] <metricstag> Administrator delete [TnsType] <tnstype> pnnitnsroute [TnsPlan] <tnsplan> [TnsId] <tnsid> [Index] <index> Administrator 2-200 SmartSwitch 6500 Reference Manual Description Adds a TNS route from the switch. Deletes a TNS route from the switch.
  • Page 225 # show pnnitnsroute Num(ALL) Num Port TNS Type ================================================================================ NationalNetworkId CarrierIdCode 90:00:00:01 NationalNetworkId CarrierIdCode 90:00:00:01 switch_1 # : 1A2 : 90:00:00:01 : 39:00:00:01 TNS Plan TNS Id TNS Index Type Proto MGMT 4369 E PNNI SmartSwitch 6500 Reference Manual 2-201...

  • Page 226: Port

    Port Use Port to add or delete a virtual port on the switch. 2p›F You can hot-swap TSMs. Hot-swapping is replacing a module when the chassis is powered up. If you replace a TSM with another TSM of the same type (same I/O ports), existing configuration of port parameters is not affected.
  • Page 227 Value/Field Size Public, Private 6-12 (MaxVpiBits) (MaxVciBits ) 32-[2 (MaxVpiBits+ MaxVciBits) Positive integer Description Adds a virtual port. Deletes a virtual port. SmartSwitch 6500 Reference Manual 2-203 Default Private No default No default No default No default No default No default...
  • Page 228 Examples switch prompt # add port PortNumber() PortAdminStatus(up) IlmiAdminStatus(enable) SigType(autoConfig) SigRole(other) InterfaceType(private) MaxVpiBits(0) MaxVciBits(10) MaxSvcVpci(0) MinSvcVci(32) MaxVccs(1024) TrafficDescriptorIndex() switch_prompt # switch_prompt # delete port PortNumber() switch_prompt # 2-204 SmartSwitch 6500 Reference Manual : 1a1.1 : 1a1.1...

  • Page 229: Portclockmode

    PortClockMode Use PortClockMode to set the clock mode of a switch port. Operators modify, show Parameters Input Parameter Description [PortNumber] Physical port number on the switch. 1A1 to 8B4 or All [PortClkMode] Clocking mode (see Table 2-7). Output Parameter Description [Port Number] Physical port number on the switch.
  • Page 230 Description Loop Port clock is set to looped timing. Local Port clock is set to split timing using the local clock on the switch. Network Port clock is set to split timing using the network clock of the switch. Examples...

  • Page 231: Portconfig

    1A1 to 8B4 ( for physical ports), 1A1.n to 8B4.n (for virtual ports, or All Up, Down Up, Down autoConfig, uni30, uni31, uni40 iisp30, iisp31, pnni10, uniPvc, nniPvc Other, Network, User Public, Private SmartSwitch 6500 Reference Manual 2-207 Default autoConfig Other Private...
  • Page 232 (detailed) command. The display shows both current and configured state of the parameters. Output Parameter Description [Port Name] Port number on the switch. (Same as the [PortNumber] input parameter.) [Intf Type] Interface type. (Same as the [InterfaceType] input parameter.) [Sig Type] Type of signaling on the port.
  • Page 233 Operator Parameters/Permissions [PortNumber] <portnumber> modify [PortAdminStatus] <portadminstatus> portconfig [IlmiAdminStatus] <ilmiadminstatus> [SigType] <sigtype> [SigRole] <sigrole> [InterfaceType] <interfacetype> [MaxVpiBits] <maxvpibits> [MaxVciBits] <maxvcibits> [MaxSvcVpci] <maxsvcvpci> [MinSvcVci] <maxvcvci> [MaxVccs] <maxvccs> [MaxSvpVpci] <maxsvpvpci> [MaxVpcs] <maxvpcs> Administrator Description Sets port configuration. SmartSwitch 6500 Reference Manual 2-209...
  • Page 234 SigType(autoConfig) SigRole(other) InterfaceType(private) MaxVpiBits(0) MaxVciBits(13) MaxSvcVpci(0) MinSvcVci(32) MaxVccs(8192) MaxSvpVpci(0) MaxVpcs(0) Smart6500_1 # NOTICE - 'tZLinkStatus' Port 7A1 (49) DOWN switch_prompt # 2-210 SmartSwitch 6500 Reference Manual ILMI Trans Media State Type Type Bw(MBS) Bw(MBS) State down 155.0 down 10.50 STS-3c MMF (S) 155.0...
  • Page 235 Max Svp Vpci Max Vpcs ILMI State Admin State up Port State Admin State down Oper State down Port Bandwidth Max 155.0 switch_prompt # : 7a1 Current autoConfig other private 8192 Oper State down Used SmartSwitch 6500 Reference Manual 2-211...

  • Page 236: Portmode

    GT225 means the cable is greater than 225 feet. LT225 means the cable is less than 255 feet. 2-212 SmartSwitch 6500 Reference Manual modify portmode show portmode Field Size/Value 1A1 to 8B4 or All...
  • Page 237 225 feet. LT225 means the cable is less than 255 feet. [Timing] Enables or disables timing at the port. Timing can improve speed matching and (622 Mbps only) sequencing of transmissions between the switch and network. Field Size/Value Disabled, Enabled SmartSwitch 6500 Reference Manual 2-213 Default Disabled...
  • Page 238 622 Mbps OC-12/STM-4, SMF-IR/SC (1 port) IOM-39-1-LR 622 Mbps OC-12/STM-4, SMF-LR/SC (1 port) IOM-67-4 45 Mbps DS-3, Coax/BNC (4 port) IOM-77-4 34 Mbps E-3, Coax/BNC (4 port) 2-214 SmartSwitch 6500 Reference Manual Description Sets transmission characteristics of switch ports. Displays transmission characteristics of switch ports.
  • Page 239 CAT5 UTP 155.0 down STS-3c CAT5 UTP 155.0 down Coax 42.66 Coax 42.66 down 155.0 down 10.50 EmptyCell Scrambling UNASSIGNED : cchannel EmptyCell Scrambling UNASSIGNED Used Oper down down down down 10.50 Length GT225 Length GT225 SmartSwitch 6500 Reference Manual 2-215...

  • Page 240: Portstat

    Description Same as [PortNumber] input parameter. Total OAM (operations and maintenance) cells the system received. Total cells dropped when the switch drops cells (includes those dropped when unknown VCs (virtual circuits) and CLP1 (cell loss priority) cells are dropped). Total cells dropped across the system. (includes those dropped when unknown VCs (virtual circuits) and CLP1 (cell loss priority) cells are dropped).
  • Page 241 Unk VC CLP1 Total Dropped Dropped Dropped 13839 13839 (detail) to show portstat /d SmartSwitch 6500 Reference Manual 2-217...
  • Page 242 Unknown VC Cells Dropped CLP1 Cells Dropped Total Cells Dropped Port 2B2 Statistics ============================================================================ OAM Cells Received RM Cells Received CLP1 Cells Received Unknown VC Cells Dropped CLP1 Cells Dropped Total Cells Dropped 2-218 SmartSwitch 6500 Reference Manual : 13851 : 13851...
  • Page 243 CPU Statistics ============================================================================ OAM Cells Received RM Cells Received CLP1 Cells Received Unknown VC Cells Dropped CLP1 Cells Dropped Total Cells Dropped switch_prompt # : 16777215 : 16777215 SmartSwitch 6500 Reference Manual 2-219...

  • Page 244: Porttrafficcongestion

    Use PortTrafficCongestion to manage traffic congestion at switch ports. You can program the values for the minimum and maximum threshold (in number of cells) for a specified priority queue. If the number of cells received by the switch on the specified priority queue for a port exceeds the maximum threshold, the switch discards the cell.
  • Page 245 Displays traffic congestion settings for ports. The minimum buffer threshold is reserved in cell buffer memory for cells in the specified priority queue for the given port. Cells are discarded when the maximum buffer threshold is reached. SmartSwitch 6500 Reference Manual 2-221...
  • Page 246 MaxIndex ----------------------------------------- 65536 32768 16384 8192 4096 2048 1024 switch_prompt # switch_prompt # modify porttrafficcongestion 7a1 QueueNumber() MinIndexNumber() MaxIndexNumber() switch_prompt # 2-222 SmartSwitch 6500 Reference Manual 1024 4096 4096 8192 8192 1024 4096 4096 8192 8192 MaxValue 1048576 786432 524288...
  • Page 247 # modify porttrafficcongestion 7b3 PortID QueueId ServiceClass MinIndex MinValue MaxIndex MaxValue ============================================================================== RTVBR NRTVBR switch_prompt # 1024 4096 2048 8192 8192 SmartSwitch 6500 Reference Manual 2-223...

  • Page 248: Privilege

    [Password] <currentpassword> enable Read Only Administrator disable 2-224 SmartSwitch 6500 Reference Manual Value/Field Size 0-8 characters Description Displays the privilege level of the current user. The two available levels are Administrator and Read Only. Raises the privilege level. There are two levels in the switch—Read-Only and Administrator.
  • Page 249 Examples switch_prompt # show privilege The current user is Administrator switch_prompt # switch_prompt # enable password: ******** switch_prompt # disable The current user is ReadOnly switch_prompt # SmartSwitch 6500 Reference Manual 2-225...

  • Page 250: Prompt

    Prompt Use Prompt to control how the switch prompt is displayed on the console monitor. Operators modify Parameters This attribute has no output parameters. Input Parameter Description [Prompt] New prompt name. Descriptions Operator Parameters/Permissions [Prompt] <newpromptname> modify prompt Administrator Example...

  • Page 251: Pvc

    Use PVC to manage PVCs on the switch. You assign two physical or virtual ports on the switch as PVC endpoints. 2p›F When you add the PVC, the endpoints are called Port 1 and Port 2 (corresponding to order of entry). For subsequent action on the PVC (activate, deactivate, show, delete), the endpoints are called High Port and Low Port.
  • Page 252 ID but different cross-connect sub IDs. [CrossConnectSubId] Cross-connect sub-ID of the PVC (as assigned by switch software). Each PTP PVC and PMP PVC has a unique cross-connect sub-ID. 2-228 SmartSwitch 6500 Reference Manual command to get a show pvc all Value/Field Size Default...
  • Page 253 Operational status of low-to-high connection. Possible values are: Up or Down. Operational status of high-to-low connection. Possible values are: Up or Down. Operational status of port. Time the PVC was created (relative to the switch boot time). SmartSwitch 6500 Reference Manual 2-229 show pvc /d...
  • Page 254 [Number of Cells Received in High-Low Direction] </d> [Number of Cells Dropped in High-Low Direction] </d> 2-230 SmartSwitch 6500 Reference Manual Description Traffic type in the high-to-low direction. Early packet discard as calculated by CAC for the cross connect in the high-to-low direction .
  • Page 255 Activates the PVC specified. Administrative status is set to Up. Adds the specified PVC. Deletes all PVCs. Deacrivates the specified PVC. Admin status is set to Down. Deletes the specified PVC. Displays the specified PVC. SmartSwitch 6500 Reference Manual 2-231...
  • Page 256 PortNumber(ALL) CrossConnectId(ALL) CrossConnectSubId(ALL) ======================================================================= Conn Conn SubId | Port VPCI ======================================================================= Total number of PVCs = 4 switch_prompt # 2-232 SmartSwitch 6500 Reference Manual High Type| Port VPCI Type | Status : 3a3 : 33 : 1b4 : 18 High...
  • Page 257 : 33 : 176 : 176 : PTP : 7A3 : 16 : PTP : UP : UP : UP : Operational : 0:0:0 : CBR : DISABLED : 1178891 : CBR : DISABLED : 1178900 SmartSwitch 6500 Reference Manual 2-233...

  • Page 258: Pvcbyid

    [CrossConnectSubId] <crossconnectsubid> Administrator delete [CrossConnectId] <crossconnid> pvcbyid [CrossConnectSubId] <crossconnectsubid> Administrator 2-234 SmartSwitch 6500 Reference Manual Value/Field Size Positive integer command to get show pvc all Positive integer Description Activates the PVC. Administrative status is Up. Deactivates the PVC. Administrative status is Down.
  • Page 259 Examples switch_prompt # activate pvcbyid CrossConnId() CrossConnSubId() switch_prompt # switch_prompt # deactivate pvcbyid CrossConnId() CrossConnSubId() switch_prompt # switch_prompt # delete pvcbyid CrossConnectId() CrossConnectSubId() switch_prompt # : 36 : 36 : 36 SmartSwitch 6500 Reference Manual 2-235...

  • Page 260: Pvp

    Use PVP to manage PVPs on the switch. You assign two physical ports on the switch as PVP endpoints. 2p›F When you add the PVP, the endpoints are called Port 1 and Port 2 (corresponding to order of entry). For subsequent action on the PVP (activate, deactivate, show, delete), the endpoints are called High Port and Low Port.
  • Page 261 Cross-connect sub-ID of the PVP. Each PTP PVP and PMP PVP has a unique cross-connect sub-ID. Number of the Low Port (based on lexical order). VPI of the Low Port. SmartSwitch 6500 Reference Manual 2-237 Value/Field Size Default Positive integer...
  • Page 262 [Cumulative Cell Transfer Delay (High-Low)] </d> [Number of Cells Received in High-Low Direction] </d> 2-238 SmartSwitch 6500 Reference Manual Description Connection type from perspective of Low Port. Number of the High Port (based on lexical order). VPI of the High Port.
  • Page 263 Cumulative cell transfer delay in the low-to-high direction. Number of cells received in the low-to-high direction. Number of cells dropped in the low-to-high direction. Description Activates the PVP specified. Administrative status is set to Up. SmartSwitch 6500 Reference Manual 2-239...
  • Page 264 [LowVPI] <lowvpci> Administrator show pvp [PortNumber] <portnumber> [CrossConnectID] <crossconnectid> [CrossConnectSubID] <crossconnectsubid> Administrator 2-240 SmartSwitch 6500 Reference Manual Description Adds the specified PVP. Deletes all PVPs. Deactivates the specified PVP. Admin status is set to Down. Deletes the specified PVP. Displays the specified PVP.
  • Page 265 DOWN : 1a3 : 37 : 1A2 : PTP : 1A3 : PTP : UP : UP : UP : Operational : 0:0:0 : CBR : DISABLED : 1178891 : CBR : DISABLED : 1178900 SmartSwitch 6500 Reference Manual 2-241...

  • Page 266: Pvpbyid

    [CrossConnectSubId] <crossconnectsubid> Administrator delete [CrossConnectId] <crossconnid> pvcbyid [CrossConnectSubId] <crossconnectsubid> Administrator 2-242 SmartSwitch 6500 Reference Manual Value/Field Size Positive integer command to get a show pvp all Positive integer Description Activates the PVP. Administrative status is Up. Deactivates the PVP. Administrative status is Down.
  • Page 267 Examples switch_prompt # activate pvpbyid CrossConnId() CrossConnSubId() switch_prompt # switch_prompt # deactivate pvpbyid CrossConnId() CrossConnSubId() switch_prompt # switch_prompt # delete pvpbyid CrossConnectId() CrossConnectSubId() switch_prompt # : 36 : 36 : 36 SmartSwitch 6500 Reference Manual 2-243...

  • Page 268: Reboot

    Note that certain switch conditions are persistent on reboot. For example, if the LECS is stopped before the reboot, it will also be stopped after the switch comes back up. Also be aware that if you enter from a telnet session, it breaks any connection reboot you have with the switch.

  • Page 269: Redundancyconfigbackup

    This attribute has no parameters. Just enter Descriptions Operator Parameters/Permissions Administrator execute redundancyconfigbackup Examples switch_prompt # execute redundancyconfigbackup Backup successful switch_prompt # ÊVœ““>˜`ÊÍœÊVœ«ßÊÍ…iÊVÖÀÀi˜ÍÊ“>ÃÍiÀÊVœ˜vˆ}ÖÀ>͈œ˜ÊÍœÊÍ…iÊÕ>ÜiÊ execute redundancyconfigbackup execute redundancyconfigbackup Description Backs up the slave TSM/CPU configuration file. ÊÍœÊÃߘV…Àœ˜ˆãiÊÍ…iÊVÖÀÀi˜ÍÊ“>ÃÍiÀÊ at the switch prompt. SmartSwitch 6500 Reference Manual 2-245...

  • Page 270: Redundancyinfo

    [UpdateConfig] Sets/unsets a flag to update configuration. [HostIP] IP address of server on which backup configuration file resides. [PathFileName] Full pathname of backup file. 2-246 SmartSwitch 6500 Reference Manual ÊVœ““>˜`ÊŽii«ÃÊÍ…iÊÕ>ÜiÊVœ˜vˆ}ÖÀ>͈œ˜ÊÃߘV…Àœ˜ˆãi`Ê Value/Field Size Y (Yes), N (No) Dot decimal/ 7-15 characters...
  • Page 271 Whatever file you choose as the slave TSM/CPU configuration file, the file must exist on the TFTP server and must be located within the directory. /tftpboot Displays the location of the slave TSM/CPU configuration file. : 206.61.237.16 : backup/slave.ztr SmartSwitch 6500 Reference Manual 2-247...

  • Page 272: Route

    [Refcnt] Internal/debugging information. [Use] Number of times this route has been used to send a packet. [Interface] Interface used for forwarding packets on this route. 2-248 SmartSwitch 6500 Reference Manual Value/Field Size Default Dot decimal/ No default 7-15 characters Dot decimal/...
  • Page 273 0x1 + flag 0x4; 7 equals flag 0x1 + flag 0x2 + flag 0x4 and so on. : 204.95.77.187 : 204.95.77.186 flags Refcnt 6508 6312 flags Refcnt : 204.95.77.187 : 204.95.77.186 Interface Interface SmartSwitch 6500 Reference Manual 2-249...

  • Page 274: Rows

    Examples switch_prompt # modify rows Rows(18): 25 There are now 25 rows per page switch_prompt # 2-250 SmartSwitch 6500 Reference Manual Value/Field Size 0 to 999 Description Sets the number of rows per page on the console display (by telling the switch how many lines your console supports). If you do not want screen breaks in the output, set the number of rows to "0."...

  • Page 275: Sarstat

    Number of spurious indicators since last up-time or clear. [Ttl Err] Total errors received since last up-time or clear. [ISR Int] Total interrupts received. [RQU Int] Receive queue underrun indicator since last up-time or clear. at the switch prompt. show sarstat SmartSwitch 6500 Reference Manual 2-251...
  • Page 276 Number of packets dropped. Descriptions Operator Parameters/Permissions Administrator show sarstat 2-252 SmartSwitch 6500 Reference Manual Description Displays all levels of statistics for the SAR. AAL (ATM adaptation layer) commands act on the SAR of VCs (virtual circuits) and VC statistics.
  • Page 277 0 Len Err : 0 Crc Err : 0 Chnl DVT: 26 spur Int: 39 RQU Int: 0 RQA 0 SBE Int: 0 SPE 0 RD Int: 0 RCR 20 Byts Cmp: 1712 Pkts Drp: SmartSwitch 6500 Reference Manual 2-253 Int: Int: Int:...

  • Page 278: Serviceregistry

    TSM is deleted. Before you insert a replacement TSM, you can display existing service registry information using the serviceregistry /o 2-254 SmartSwitch 6500 Reference Manual Value/Field Size 1A1 to 8B4 or All ANS, LECS...
  • Page 279 Output Parameter Description [Port] Port number on the switch. (Same as the [PortNumber] input parameter.) [Type] Type of service. Possible values are: ANS or LECS. [Index] Index identifying two services registered for the same port and having the same service type.
  • Page 280 : A1 ServiceType(LECS) AddressIndex() AtmAddress() : 39:00:00:00:00:00:00:00:00:00:14:1B:00:0020:D4:14:1C:00:01 switch_prompt # switch_prompt # delete serviceregistry PortNumber(ALL) ServiceType(LECS) AddressIndex() switch_prompt # switch_prompt # show serviceregistry PortNumber(ALL) Port Type Index AtmAddress =============================================================================== LECS 39:00:00:00:00:00:00:00:00:00:14:1B:00:0020:D4:14:1C:00:01 LECS 39:00:00:00:00:00:00:00:00:00:14:1B:00:0020:D4:14:1A:00:01 LECS 39:00:00:00:00:00:00:00:00:00:14:1B:00:0020:D4:14:1B:00:01 switch_prompt # 2-256 SmartSwitch 6500 Reference Manual...

  • Page 281: Shutdown

    Shutdown Use Shutdown to shut down the switch to a state where it can be powered off. Shutdown stops all logging and synchronizes the file system. You must enter Operator shutdown Parameters This attribute has no parameters. Just enter Descriptions...

  • Page 282: Sigstatistics

    Port number on the switch. (Same as the [PortNumber] input parameter.) Number of set-up messages received. Number of set-up messages transmitted. Number of SVC calls rejected by this switch because of unavailable IISP or UNI routes generated on other switches. !Ö“LiÀÊœvÊ.7+ÊV>••ÃÊÀi•iVÍi`ÊLßÊÍ…ˆÃÊÃ݈ÍV…ÊLiV>ÖÃiÊœvÊÖ˜>Ü>ˆ•>L•iÊ77.+ÊœÀÊ2!7Ê...
  • Page 283 Number of requests (by the user) on other switches to release all resources associated with the circuit controlled by signaling. Number of requests (by the user) on this switch to release all resources associated with the circuit controlled by signaling.
  • Page 284 Emitt Calledparty Events Detect Signalling Message Errors Emitt Signalling Message Errors Detect Callingparty Events Emitt Callingparty Events Detect Timer Expirations Emitt Timer Expirations Detect Restarts Emitt Restarts In Call Establishments Out Call Establishments switch_prompt # 2-260 SmartSwitch 6500 Reference Manual : 1a1...

  • Page 285: Sigtimer

    Number of times the timer has to be restarted. Value/Field Size 1A1 to 8B4 (for physical ports), 1A1.n to 8B4.n (for virtual ports), or All +œÃÈL•iÊÜ>•ÖiÃÊ>Ài\Ê0Ïä£]0ÏäÏ]Ê 0ÏäÈ]0Ïän]Ê0Ïä™]Ê0Ï£ä]Ê0Ï£Ï]Ê0Ï£È]Ê 0Ï£Ç]Ê0ÏÔÔ]Ê0ÏÏ£]Ê0ÏÏÏ]Ê0Ï™Ç]0Ï™n]Ê 0Ï™™° Zero or positive integer Zero or positive integer SmartSwitch 6500 Reference Manual 2-261 Default T303...
  • Page 286 Output Parameter Description [phy_port_id] Port number on the switch. (Same as the [PortNumber] input parameter.) [duration] Timer value in milleseconds. (Same as the [Interval] input parameter.) [retries] Number of times the timer has to be restarted. (Same as the [Retries] input parameter.)
  • Page 287 T316 retries T317 duration : 60000 T322 duration : 4000 T322 retries T331 duration : 60000 T331 retries T333 duration : 10000 T397 duration : 180000 T398 duration : 4000 T399 duration : 14000 switch_prompt # SmartSwitch 6500 Reference Manual 2-263...

  • Page 288: Slotconfig

    SlotConfig Use SlotConfig to display configuration of slots in the switch chassis (to see which slots are occupied by TSM or CSM modules). You also can get specific information about each module. Operators show Parameters Input Parameter Description [Slot] Slot number in the switch chassis.
  • Page 289 Board IO Modules ============================================================================== switch_prompt # show slotconfig Slot(ALL) Slot 7 ============================================================================== Slot Number: Installed Board: Board ID Board Rev IO Boards Installed IO Board IO Board switch_prompt # : TSM : NONE : NONE SmartSwitch 6500 Reference Manual 2-265...

  • Page 290: Sscopconfig

    SSCOPConfig Use SSCOPConfig to set or display switch Service-Specific Connection-Oriented Protocol parameters. SSCOP parameters control how the switch interoperates with other switches. 2p›F You can hot-swap TSMs. Hot-swapping is replacing a module when the chassis is powered up. If you replace a TSM with another TSM of the same type (same I/O ports), existing configuration of port parameters is not affected.
  • Page 291 Number of SD PDUs after which a Poll PDU is generated. !Ö“LiÀÊœvÊ*.57!Ê+-2ÃÊÃi˜ÍÊ`ÖÀˆ˜}Ê•ˆ˜iÊiÃÍ>L•ˆÃ…“i˜Í°Ê [MaxCC] 0ˆ“iÊ-ˆ˜Ê“ˆ••ˆÃiVœ˜`îÊLiÍÝii˜Ê}i˜iÀ>͈œ˜ÊœvÊ+œ••Ê+-2ðÊÊ-.>“iÊ>ÃÊÍ…iÊQ+œ••0ˆ“iRʈ˜«ÖÍÊ [PollTm] «>À>“iÍiÀ°® ->ÍiÊœvÊ+œ••.Í>ÍÊiÞV…>˜}iÊ-ˆ˜Ê“ˆ••ˆÃiVœ˜`îʈ˜ÊÍ…iÊ>LÃi˜ViÊœvÊ.-Ê+-2ÊÍÀ>vvˆV°ÊÊ-.>“iÊ>ÃÊÍ…iÊ [KpAliveTm] Q=ii«"•ˆÜi0ˆ“iRʈ˜«ÖÍÊ«>À>“iÍiÀ°® >Þˆ“Ö“Ê͈“iÊ-ˆ˜Ê“ˆ••ˆÃiVœ˜`îÊ݈ͅˆ˜ÊÝ…ˆV…Ê>Ê+œ••Ê“ÖÃÍÊLiÊ>VŽ˜œÝ•i`}i`ÊLßÊ>Ê.Í>ÍÊ [NoRespTm] +-2°ÊÊ-.>“iÊ>ÃÊÍ…iÊQ!œ-i뜘Ãi0ˆ“iRʈ˜«ÖÍÊ«>À>“iÍiÀ°® ->ÍiÊ>ÍÊÝ…ˆV…Ê*.57!Ê>˜`Ê.!-Ê+-2ÃÊ>ÀiÊ}i˜iÀ>Íi`Ê`ÖÀˆ˜}Ê•ˆ˜ŽÊiÃÍ>L•ˆÃ…“i˜ÍÊœvÊÀi•i>Ãi°ÊÊ [CCTm] -.>“iÊ>ÃÊÍ…iÊQ++0ˆ“iRʈ˜«ÖÍÊ«>À>“iÍiÀ°® -iViˆÜiÊ݈˜`œÝÊÈãiÊÝ…i˜Ê..+#+ÊÃÍ>VŽÊˆÃʈ˜ˆÍˆ>•ˆãi`°Ê [RxWindowSz] Value/Field Size 10000-15000 1000-2000 32-256 SmartSwitch 6500 Reference Manual 2-267 Default 7000 1000...
  • Page 292 # show sscopconfig PortNumber(ALL) : 1a1 Port# MaxPD MaxCC PollTm =================================================================== (Timer value in MilliSecs) =================================================================== switch_prompt # 2-268 SmartSwitch 6500 Reference Manual Description Sets switch SSCOP parameters. Displays switch SSCOP parameters. KpAliveTm NoRespTm CCTm RxWindowSz 2000 7000 1000...

  • Page 293: Sscopstatistics

    The deletion occurs when the new module is plugged into the chassis backplane. Operators show Parameters Input Parameter Description [PortNumber] Port number on the switch. 1A1 to 8B4 (for physical ports), Output Parameter Q+œÀÍ›R Q!Ö“Ê*.57!Ê0À>˜Ã“ˆÍÍi`R Q!Ö“Ê*.57!Ê-iViˆÜi`R Q!Ö“Ê*.57!Ê-iÍÀ>˜Ã“ˆÍÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê*.57!Ê-iÍÀ>˜Ã“ˆÍÊ-iViˆÜi`R Q!Ö“Ê*.57!Ê"+=Ê0À>˜Ã“ˆÍÍi`RÊ...
  • Page 294 Q!Ö“Ê-..:!+Ê-iViˆÜi`R Q!Ö“Ê-..:!+Ê-iÍÀ>˜Ã“ˆÍÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê-..:!+Ê-iÍÀ>˜Ã“ˆÍÊ-iViˆÜi`R Q!Ö“Ê-..:!+Ê"VŽÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê-..:!+Ê"VŽÊ-iViˆÜi`R Q!Ö“Ê.---.+Ê0À>˜Ã“ˆÍÍi`R Q!Ö“Ê.---.+Ê-iViˆÜi`R Q!Ö“Ê.---.+Ê-iÍÀ>˜Ã“ˆÍÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê.---.+Ê-iÍÀ>˜Ã“ˆÍÊ-iViˆÜi`R Q!Ö“Ê.---.+Ê"VŽÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê.---.+Ê"VŽÊ-iViˆÜi`R Q!Ö“Ê.!-Ê0À>˜Ã“ˆÍÍi`R Q!Ö“Ê.!-Ê-iViˆÜi`R Q!Ö“Ê.!-Ê-iÍÀ>˜Ã“ˆÍÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê.!-Ê-iÍÀ>˜Ã“ˆÍÊ-iViˆÜi`R Q!Ö“Ê.!-Ê"VŽÊ0À>˜Ã“ˆÍÍi`R Q!Ö“Ê.!-Ê"VŽÊ-iViˆÜi`R Q!Ö“Ê+#>>Ê0À>˜Ã“ˆÍÍi`RÊ 2-270 SmartSwitch 6500 Reference Manual Description !Ö“LiÀÊœvÊ*.57!"+=Ê+-2ÃÊÀiViˆÜi`° !Ö“LiÀÊœvÊ*.57!-.<.+0Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`° !Ö“LiÀÊœvÊ*.57!-.<.+0Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ-..:!+Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ-..:!+Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ-..:!+ÊÀiÍÀ>˜Ã“ˆÍÊ+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ-..:!+ÊÀiÍÀ>˜Ã“ˆÍÊ+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ-..:!+Ê>VŽÊ+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ-..:!+Ê>VŽÊ+-2ÃÊÀiViˆÜi`° !Ö“LiÀÊœvÊ.--#-Ê-.+#7.-:Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ.--#-Ê-.+#7.-:Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ.--#-Ê-.+#7.-:ÊÀiÍÀ>˜Ã“ˆÍÊ+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ.--#-Ê-.+#7.-:ÊÀiÍÀ>˜Ã“ˆÍÊ+-2ÃÊÀiViˆÜi`° !Ö“LiÀÊœvÊ.--#-Ê-.+#7.-:Ê"+=Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`Ê !Ö“LiÀÊœvÊ.--#-Ê-.+#7.-:Ê"+=Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`° !Ö“LiÀÊœvÊ.!-Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê...
  • Page 295 Q!Ö“Ê.-Ê"VŽ˜œÝ•i`}i`R Q!Ö“Ê.-Ê-i•ˆÜiÀi`R Q!Ö“Ê.-Ê-Ö«•ˆV>Íi`R Q!Ö“.Ê-Ê-iÍÀ>˜Ã“ˆÃÈœ˜Ê-iµÊ.i˜ÍR Q!Ö“Ê.-Ê-iÍÀ>˜Ã“ˆÃÃœ˜Ê-iµÊ-VÜ`R Q!Ö“Ê0ˆ“iÃÊ09ÊÊ8ˆ˜`œÝÊ.“«ÍßR Q!Ö“Ê ""Ê.ÀÀœÀÃR Q!Ö“Ê0ˆ“iÃÊ!#-..+#!..Ê.Þ«ˆÀi`R Q!Ö“Ê >ÞÊ0ˆ“iÃÊ0++Ê0ˆ“iÀÊ.Þ«ˆÀi`R Q!Ö“Ê7˜Ü>•ˆ`Ê+-2ÃÊ-iViˆÜi`R Q!Ö“Ê.ÀÀœÀÊ+-2ÃÊ-iViˆÜi`R Description !Ö“LiÀÊœvÊ+#>>Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ.0"0Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ.0"0Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ2.0"0Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ2.0"0Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ.-Ê+-2ÃÊÍÀ>˜Ã“ˆÍÍi`°Ê !Ö“LiÀÊœvÊ.-Ê+-2ÃÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ.-Ê+-2ÃÊÀiÍÀ>˜Ã“ˆÍÍi`° !Ö“LiÀÊœvÊ.-Ê+-2ÃÊ>VŽ˜œÝ•i`}i`°Ê !Ö“LiÀÊœvÊ.-Ê+-2ÃÊ`i•ˆÜiÀi`°Ê !Ö“LiÀÊœvÊ.-Ê+-2ÃÊ`Ö«•ˆV>Íi`°Ê !Ö“LiÀÊœvÊ.-ÊÀiÍÀ>˜Ã“ˆÃÈœ˜ÊÀiµÖiÃÍÃÊÃi˜Í°Ê !Ö“LiÀÊœvÊ.-ÊÀiÍÀ>˜Ã“ˆÃÈœ˜ÊÀiµÖiÃÍÊÀiViˆÜi`°Ê !Ö“LiÀÊœvÊ͈“iÃÊÍÀ>˜Ã“ˆÍÊ݈˜`œÝÊLiVœ“iÊi“«Íß° !Ö“LiÀÊœvÊ ""ÊiÀÀœÀÃÊœVVÖÀÀi`° !Ö“LiÀÊœvÊ͈“iÃÊ!#-..+#!..Ê͈“iÀÊiÞ«ˆÀi`° >Þˆ“֓ʘ֓LiÀÊœvÊ͈“iÃÊ͈“iÀÊ0++ÊiÞ«ˆÀi`ÊÝ…ˆ•iÊÝ>ˆÍˆ˜}ÊvœÀÊ *.57!Ê+-2° !Ö“LiÀÊœvʈ˜Ü>•ˆ`Ê+-2ÃÊÀiViˆÜi`° !Ö“LiÀÊœvÊiÀÀœÀÊ+-2ÃÊÀiViˆÜi`° SmartSwitch 6500 Reference Manual 2-271...
  • Page 296 Description Operator show sscopstatistics 2-272 SmartSwitch 6500 Reference Manual Parameters / Permissions [PortNumber] <portnumber> Description Displays SSCOP statistics.
  • Page 297 No of times NORESPONSE expired No of max times TCC timer expired No of Invalid PDUs received No of Error PDUs received switch_prompt # : 1a2 : 1A2 : 17 : 17 : 17 : 17 SmartSwitch 6500 Reference Manual 2-273...

  • Page 298: Svc

    High VCI (virtual circuit identifier) number. [High Type] High port connection type (PMP or PTP). [Creation Time] Time when the SVC was established (with respect to the boot time on the switch). Displayed in Hour:Minute:Seconds format. 2-274 SmartSwitch 6500 Reference Manual Value/Field Size 1A1.n to 8B4.n (for virtual ports),...
  • Page 299 # Description Displays SVC(s) for s apecified port High CreationTime Vci Type | (Hr:Min:Sec) 0: 5:20 0: 5:20 0: 5:20 0: 5:20 0: 5:20 0: 5:20 0: 5:20 0: 5:20 0: 5:20 0: 5:20 SmartSwitch 6500 Reference Manual 2-275...

  • Page 300: Svcbyid

    [Low VCI] [Low Cast Type] [High Port] [High VPI] [High VCI] [High Cast Type] 2-276 SmartSwitch 6500 Reference Manual Value/Field Size show SVC Description Identifier for each unique connection. (Same as the [CrossConn] input parameter.) Port receiving the backward flow of the high/low pair.
  • Page 301 Number of cells dropped in the forward direction. Number of cells dropped in the backward direction. Number of early packet discard packets dropped in the forward direction. Number of early packet discard packets dropped in the backward direction. SmartSwitch 6500 Reference Manual 2-277...
  • Page 302 Number of Cells Received in the Bkw Direction Number of Cells Dropped in the Bkw Direction Number of Epd Packets Dropped in the Bkw Direction : 0 switch_prompt # 2-278 SmartSwitch 6500 Reference Manual Description Displays SVC(s) by connection ID. High...

  • Page 303: Switch

    IP address of the backup server. [Path] Pathname of the backup directory. 256 characters Value/Field Size Default Dot decimal/ No default 7-15 characters backup: public/Smart6500.ztr (initially, then last path used) restore : public/Smart6500.ztr (initially, then last path used) SmartSwitch 6500 Reference Manual 2-279...
  • Page 304 Copies the current configuration of the master TSM/CPU module to a backup file at an end station. This command backs up the switch configuration only. It does not back up the load image. It prompts you for the IP address of the workstation to which you are saving the switch configuration as well as the backup path and filename.

  • Page 305: Switchconfig

    7-15 characters Description Name of the switch. (Same as the [SwitchName] input parameter. IP address of the Ethernet port on the switch. (Same as the [IPAddress] input parameter.) IP netmask of the Ethernet port. (Same as the [IPNetMask] input parameter.) Base MAC (media access control) address for the TSM/CPU module.
  • Page 306 [Switch Software Type] [Software Version] [Build Date] [Software Image Size] [Heap Space Used/Total/%Free] 2-282 SmartSwitch 6500 Reference Manual Description Which power supply is installed. Which power supply is ON. Number of TSM modules installed in the chassis. Model of the active CPU (up to 7 characters).
  • Page 307 Any future hardware or software changes will be detected automatically when the switch is rebooted. SmartSwitch 6500 Reference Manual 2-283 modify...
  • Page 308 Number of CSM Boards Cell Memory Size Switch Software Type Software Version Build Date Software Image Size Heap Space (Used/Total/%Free) switch_prompt # 2-284 SmartSwitch 6500 Reference Manual : switch_2 : 1.1.1.202 : 255.255.255.128 : Smart6500_1 : 206.61.237.22 : 255.255.255.0 : 00:20:D4:28:C1:80...

  • Page 309: Switchname

    SwitchName(switch_1): switch_2 switch_prompt # Value/Field Size Up to 19 characters Description Changes the name you gave your switch. You can also change switchname using modify switchconfig change other switch features at the same time. SmartSwitch 6500 Reference Manual 2-285 Default...

  • Page 310: Switchtrafficcongestion

    SwitchTrafficCongestion Use SwitchTrafficCongestion to manage global switch traffic congestion thresholds on the switch. Operators modify, show Parameters Parameter [LowEPDWatermark [HighEPDWatermark] [CLP1_DiscardWatermark] [RMCellMarkingEnable] [ExplicitRateMarkingEnable] [EFCIMarkingEnable] 2-286 SmartSwitch 6500 Reference Manual Description Threshold (in cells) used by the switch to trigger low EPD (early packet discard), EFCI, and backward RM (resource management) cell marking.
  • Page 311 Modifies the congestion control parameters for the switch. Displays the current traffic congestion settings for the switch. :20971 :10485 :13107 : 20971 cells : 10485 cells : 13107 cells : 13107 cells : OFF : OFF : OFF SmartSwitch 6500 Reference Manual 2-287...

  • Page 312: Trafficdescriptor

    2ÃiÊ show trafficde- scriptor ˜Ö“LiÀð Q++-+>+ä³£R +i>ŽÊVi••ÊÀ>ÍiÊ +>+ÊrÊä³£Ê -=ˆ•œ*ˆÍÃÊ«iÀÊÃiVœ˜`®° Q++-+>+äR +i>ŽÊVi••ÊÀ>ÍiÊ+>+ÊrÊä -=ˆ•œ*ˆÍÃÊ«iÀÊÃiVœ˜`®° Q.+-+>+ä³£R .ÖÃÍ>ˆ˜>L•iÊVi••ÊÀ>ÍiÊ +>+ÊrÊä³£ -=ˆ•œ*ˆÍÃÊ«iÀÊÃiVœ˜`®° 2-288 SmartSwitch 6500 Reference Manual Value/Field Size +*-]Ê2*-]Ê-07*-]Ê!-07*-]Ê"*-Ê Í…iÊvœ••œÝˆ˜}ʘ֓LiÀÃ\ÊÔ†ÇÊœÀÊ££° +i>Ž+i••->ÍiÊ+>+ä³£Ê-Ô® +i>Ž+i••->ÍiÊ+>+ä³£]Ê+i>Ž+i••->ÍiÊ+>+äÊ-Ï® +i>Ž+i••->ÍiÊ+>+ä³£]Ê+i>Ž+i••->ÍiÊ+>+ä]Ê ÊÊÊÊÊÊ0>}Ê+>+ÊrÊ£Ê-{® +i>Ž+i••->ÍiÊ+>+ä³£]Ê.ÖÃÍ+i••->ÍiÊ+>+ä³£] ÊÊÊÊÊÊ >Þ*ÖÀÃÍ.ˆãiÊ+>+ä³£-x® +i>Ž+i••->ÍiÊ+>+ä³£]Ê.ÖÃÍ+i••->ÍiÊ+>+ä] ÊÊÊÊÊÊ >Þ*ÖÀÃÍ.ˆãiÊ+>+äÊ-È® +i>Ž+i••->ÍiÊ+>+ä³£]Ê.ÖÃÍ+i••->ÍiÊ+>+ä] ÊÊÊÊÊÊ >Þ*ÖÀÃÍ.ˆãiÊ+>+ä]Ê0>}Ê+>+ÊrÊ£-Ç® *iÃÍ.vvœÀÍÊ-££® +œÃˆÍˆÜiʈ˜Íi}iÀ...
  • Page 313 SustCellRate CLP0, MaxBurstSize CLP0), 7 (PeakCellRate CLP0+1, SustCellRate CLP0, MaxBurstSize CLP0, Tag CLP = 1), or 11 (BestEffort). Value/Field Size =iÀœÊœÀÊ«œÃˆÍˆÜiʈ˜Íi}iÀ =iÀœÊœÀÊ«œÃˆÍˆÜiʈ˜Íi}iÀ =iÀœÊœÀÊ«œÃˆÍˆÜiʈ˜Íi}iÀ "˜ßÊœvÊÍ…iÊvœ••œÝˆ˜}ʘ֓LiÀÃ\Êä]Ê£]ÊÔ]ÊÏ]Ê{]Êx 2˜Ã«iVˆvˆi`Ê-ä® +•>ÃãÊ-£® +•>ÃÃÔÊ-Ô® +•>ÃÃÏÊ-Ï® +•>ÃÃ{Ê-{® +•>ÃÃxÊ-x® "˜ßÊœvÊÍ…iÊvœ••œÝˆ˜}ʘ֓LiÀÃ\Ê£]ÊÔ]ÊÏ]Êx]Ê£È "">£Ê-£® "">ÔÊ-Ô® "">ÏÉ{Ê-Ï® "">xÊ-x® 2˜Ã«iVˆvˆi`Ê-£È® SmartSwitch 6500 Reference Manual 2-289 Default ä ä ä £...
  • Page 314 Maximum burst size CLP=0+1 (in kilobits per second). CLP_0+1] [Aal Type] ATM adaption layer type. (Same as the [AALTYPE] input parameter.) Possible values are: 1 (AAL1), 2 (AAL2), 3 (AAL3), 4 (AAL3/4), 5 (AAL5), 16 (Unspecified). 2-290 SmartSwitch 6500 Reference Manual...
  • Page 315 Executing this command : delete TrafficDescriptor TrafficDescriptorIndex() switch_prompt # Description Creates a new traffic descriptor. Deletes a traffic descriptor. Shows traffic descriptors. : CBR : 200 : 200 : 200 : 200 : 200 : 200 SmartSwitch 6500 Reference Manual 2-291...
  • Page 316 # show trafficdescriptor Executing this command : show TrafficDescriptor =================================================================================== Traff Desc Peak Cell Rate Type Type ==================================================================================== switch_prompt # 2-292 SmartSwitch 6500 Reference Manual Sust Cell Rate (Kb/s) (Kb/s) CLP_0 CLP_0+1 CLP_0 CLP_0+1 Max Burst Size (Kb) Type...

  • Page 317: Trapcommunity

    TrapCommunity Use TrapCommunity to manage the list of hosts that the switch sends trap notifications to concerning significant events. Each trap community has a name, IP address, and port number. The trap community name and address combination must be unique.
  • Page 318 # show trapcommunity TrapCommunity Name =========================================================================== trapcomm switch_prompt # 2-294 SmartSwitch 6500 Reference Manual Descriptions Creates a trap community entry on the switch. Removes an existing trap community from the switch. Displays all trap communities configured on the switch.

  • Page 319: Trustednms

    TrustedNMS Use TrustedNMS to configure a trusted network management system (NMS) on the switch. The trusted NMS is identified by its IP address. The trusted network management system is the only NMS allowed to perform critical operations such as: •...
  • Page 320 Examples switch_prompt # modify trustednms IpAddr(0.0.0.0) : 90.1.1.1 Trusted NMS IP-Address : 90.1.1.1 switch_prompt # switch_prompt # show trustednms Trusted NMS IP-Address : 90.1.1.1 switch_prompt # 2-296 SmartSwitch 6500 Reference Manual...

  • Page 321: Vccmask

    Use VCCMask to manage the combination of VPI (virtual path identifier) bit and VCI (virtual channel identifier) bit settings. There are only four different VCC mask entries allowed by the switch and the VPI and VCI shift must total 12.
  • Page 322 Vpi Bits Vci Bits ============================================================================== switch_prompt # 2-298 SmartSwitch 6500 Reference Manual Description Modifies the proportion of bits assigned to the VPI and VCI for a given VCC or VPI/VCI set. The combined total of VPI and VCI bits must equal 12. The four most common VCC...

  • Page 323: Vlanmcast

    Multicast group MAC address. [Distribute VPI/VCI] Selective multicast forward VC established by the server. Descriptions Operator Parameters/Permissions [ELANNumber] <elannumber> show vlanmcast Administrator Value/Field Size 0-125 Description Displays multicast group MAC addresses served by a VLAN. SmartSwitch 6500 Reference Manual 2-299 Default No default...
  • Page 324 Examples switch_prompt # show vlanmcast 0 MULTICAST ENTRIES for VLAN : 0 ------------------------------------ McastId Group MAC Address : 01:80:C2:00:00:00 Distribute VPI/VCI : 0/62 switch_prompt # 2-300 SmartSwitch 6500 Reference Manual...

  • Page 325: Boot Load Commands

    Accessing the Boot Load Commands Boot load commands are executed from the boot load prompt. The boot load prompt is not part of the switch console, and is accessible only after a reboot and before the switch software is loaded. Perform the following steps to gain access to the boot load prompt: s•...

  • Page 326: Chpi Command

    Clearing Flash File System, please wait... Successfully cleared Flash File System => 2p›F After you return to the switch console (exit the boot prompt) following series of messages appears at the console ending with the At the password: to reinitialize the flash file system and reboot again to enable normal config switch operation.

  • Page 327: Dcfg Command

    POST OFF => df Command (download firmware) to download software images from a TFTP/Bootp server to the flash RAM of the switch. 2p›F Be sure the location and names of the image files are known to the TFTP/Bootp server to allow the server to automatically download the files to the switch.

  • Page 328: Go Command

    New Switch Software programmed successfully => go Command Use the command to exit the boot load prompt and run switch software (with or without POST). Parameter Explanation Bypass POST and go directly to switch software. Run POST, and then run switch software.

  • Page 329: He Command

    0 ..changes the Boot Load default to be Boot Load Software0; 1 ..changes the Boot Load default to be Boot Load Software1 Changes Boot Load default to be Boot Load Software (0) or (1) (1) UP (2) UP (9) DOWN SmartSwitch 6500 Reference Manual 3-5 ) can be...

  • Page 330: Ponf Command

    Command to set whether POST diagnostics are run by default when the switch is started. ponf Parameter Explanation POST is off. Switch goes directly to start-up. POST is on. Switch runs POST before going to switch operating software. none Same as ;...

  • Page 331: Swms Command

    Boot Load Commands swms Command to tell the switch to transfer TSM/CPU mastership to the redundant CPU/TSM. swms Examples =>swms Transferring mastership to slave TSM/CPU... => SmartSwitch 6500 Reference Manual 3-7...
  • Page 332 Boot Load Commands 3-8 SmartSwitch 6500 Reference Manual...

  • Page 333: Appendix A Acronyms

    Application Programming Interface Address Resolution Protocol ASCII American Standard Code for Information Interchange Asynchronous Transfer Mode Available Cell Rate Bridged Ethernet Bit Error Ratio (Rate) B-ICI Broadband Inter-Carrier Interface B-ISDN Broadband Integrated Services Digital Network SmartSwitch 6500 Reference Manual A-1...
  • Page 334 Congestion Indicator Cell Loss Priority Cell Loss Ratio CMIP Common Management Information Protocol Communication Class of Service Customer Premise Equipment Central Processing Unit Cyclic Redundancy Check Cell Relay Service Convergence Sublayer Cell Transfer Delay A-2 SmartSwitch 6500 Reference Manual Acronyms...
  • Page 335 E-NET Ethernet EFCI Explicit Forward Congestion Indicator EISA Extended Industry Standard Architecture ELAN Emulated Local Area Network Electro-Magnetic Interference Enterprise Network Roundtable End of Frame Early Packet Discard EPROM Erasable Programmable Read-Only Memory Electro-Static Device SmartSwitch 6500 Reference Manual A-3...
  • Page 336 First In First Out File Transfer Protocol GB/S Gigabits per second GCRA Generic Cell Rate Algorithm Generic Flow Control Header Error Check IEEE Institute of Electrical and Electronic Engineers ICMP Internet Control Message Protocol Identification Number A-4 SmartSwitch 6500 Reference Manual Acronyms...
  • Page 337 Internet Protocol over ATM Internetwork Packet Exchange protocol ITU-TSS International Telecommunications Union-Telecommunications Standards Sector ISDN Integrated Service Digital Network JPEG Joint Photographic Experts Group KB/S Kilobits per second Local Area Network LANE LAN Emulation LAN Emulation SmartSwitch 6500 Reference Manual A-5...
  • Page 338 Logical Link Control Local Management Interface Media Access Control Metropolitan Area Network MB/S Megabits per second Maximum Burst Size Minimum Cell Rate Management Information Base Multi-Mode Fiber Multi-Point Main Switch Module Maximum Transfer Unit A-6 SmartSwitch 6500 Reference Manual Acronyms...
  • Page 339 Network Services Access Point Operations and Maintenance OAM&P Operations, Administration, Maintenance and Provisioning OC-1 Optical Carrier 1 OC-N Optical Carrier n (where "n" is an integer) Open Data-link Interface Out of Band Open Systems Interconnection SmartSwitch 6500 Reference Manual A-7...
  • Page 340 Programmable Read-Only Memory Payload Type Indicator Point-to-Point Permanent or Provisioned Virtual Circuit Quality of Service QSAAL Q-Signaling ATM Adaptation Layer. (Q represents the Q-series of the ITU-T (International Telecommunications Union). Read-Only Access Random Access Memory A-8 SmartSwitch 6500 Reference Manual Acronyms...
  • Page 341 Simple Network Management Protocol SONET Synchronous Optical Network STM-1 Synchronous Transport Module 1 STM-N Synchronous Transport Module n (where ‘n' is an integer) STM-NC Synchronous Transport Module n - concatenated (where ‘n' is an integer) Shielded Twisted Pair SmartSwitch 6500 Reference Manual A-9...
  • Page 342 TFTP Trivial File Transfer Protocol Type, Length and Value Unspecified Bit Rate UNI Management Entity User-Network Interface Unnumbered Poll Usage Parameter Control UTOPIA Universal Test and Operations Physical Interface for ATM Unshielded Twisted Pair A-10 SmartSwitch 6500 Reference Manual Acronyms...
  • Page 343 Variable Bit Rate/Real Time VBR/NRT Variable Bit Rate/Non-real Time Virtual Circuit Virtual Channel Connection Virtual Channel Identifier Virtual Channel Link VLAN Virtual LAN Virtual Path Virtual Path Connection Virtual Path Identifier Virtual Private Network Wide Area Network SmartSwitch 6500 Reference Manual A-11...
  • Page 344 Acronyms A-12 SmartSwitch 6500 Reference Manual...

  • Page 345: Appendix B Event/Alarm Messages

    APPENDIX B EVENT/ALARM MESSAGES The SmartSwitch 6500 records and reports its operation in real-time using events and alarms. An event is the occurrence of a significant activity. Examples of events are a port going down or a client joining an ELAN. Alarms are a specific class of events defined as “those events that the user needs to know about or attend to right away.”...

  • Page 346: Table B-2 Event Severity

    The event ID is an 8 or 9-digit decimal number that allows you to identify the source of the event or alarm. The first five or six digits indicate the software module associated with the switch activity. The remaining digits identify the specific type of activity.

  • Page 347: Table B-3 Event Id Prefixes

    A complete list of event and alarm messages is beyond the scope of this manual. If a recovery action is not apparent from the message text (or context in which the switch activity occurred), contact your Cabletron representative for assistance. 000:00:23:502 SmartSwitch 6500 Reference Manual B-3...
  • Page 348 Event/Alarm Messages B-4 SmartSwitch 6500 Reference Manual...

  • Page 349: Appendix C Technical Support

    APPENDIX C TECHNICAL SUPPORT This appendix tells you what to do if you need technical support for your SmartSwitch 6500. Cabletron offers several support and service programs that provide high-quality support to our customers. For technical support, first contact your place of purchase. If you need additional assistance, contact Cabletron Systems, Inc. There are several easy ways to reach Cabletron Customer Support and Service.

  • Page 350: Hardware Warranty

    Detailed description of the issue (including history, what you've tried, and conditions under which you see this occur) Hardware model number, software version, and switch configuration (that is, what part types are in what slots) Hardware Warranty Cabletron warrants its products against defects in the physical product for one year from the date of receipt by the end user (as shown by Proof of Purchase).
