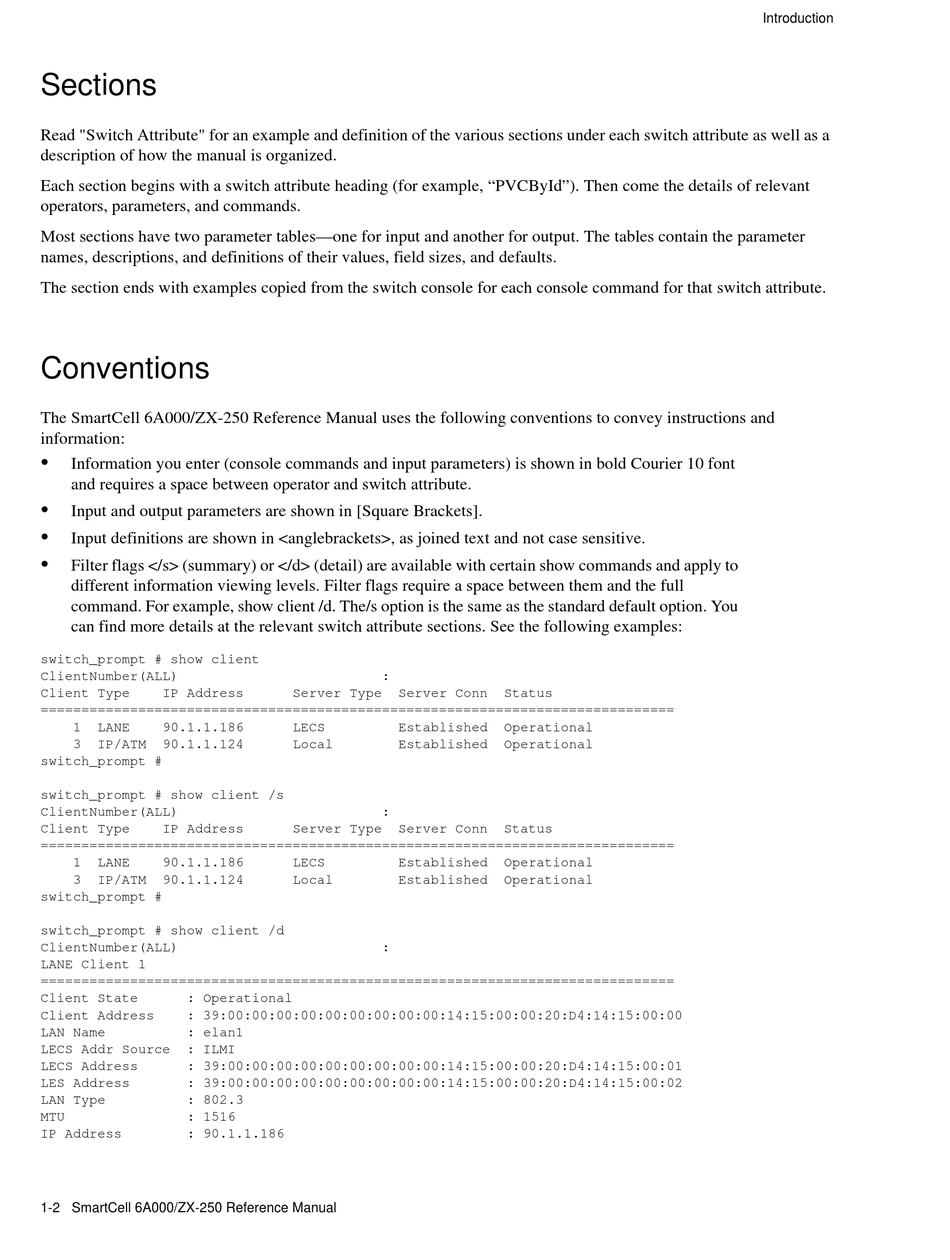

Sections

Read "Switch Attribute" for an example and definition of the various sections under each switch attribute as well as a
description of how the manual is organized.
Each section begins with a switch attribute heading (for example, "PVCById"). Then come the details of relevant
operators, parameters, and commands.
Most sections have two parameter tables—one for input and another for output. The tables contain the parameter
names, descriptions, and definitions of their values, field sizes, and defaults.
The section ends with examples copied from the switch console for each console command for that switch attribute.

Conventions

The SmartCell 6A000/ZX-250 Reference Manual uses the following conventions to convey instructions and
information:
U
Information you enter (console commands and input parameters) is shown in bold Courier 10 font
and requires a space between operator and switch attribute.
U
Input and output parameters are shown in [Square Brackets].
U
Input definitions are shown in <anglebrackets>, as joined text and not case sensitive.
U
Filter flags </s> (summary) or </d> (detail) are available with certain show commands and apply to
different information viewing levels. Filter flags require a space between them and the full
command. For example, show client /d. The/s option is the same as the standard default option. You
can find more details at the relevant switch attribute sections. See the following examples:
switch_prompt # show client
ClientNumber(ALL)
Client Type IP Address
==============================================================================
1 LANE 90.1.1.186
3 IP/ATM 90.1.1.124
switch_prompt #
switch_prompt # show client /s
ClientNumber(ALL)
Client Type IP Address
==============================================================================
1 LANE 90.1.1.186
3 IP/ATM 90.1.1.124
switch_prompt #
switch_prompt # show client /d
ClientNumber(ALL)
LANE Client 1
==============================================================================
Client State : Operational
Client Address : 39:00:00:00:00:00:00:00:00:00:14:15:00:00:20:D4:14:15:00:00
LAN Name : elan1
LECS Addr Source : ILMI
LECS Address : 39:00:00:00:00:00:00:00:00:00:14:15:00:00:20:D4:14:15:00:01
LES Address : 39:00:00:00:00:00:00:00:00:00:14:15:00:00:20:D4:14:15:00:02
LAN Type : 802.3
MTU : 1516
IP Address : 90.1.1.186
1-2 SmartCell 6A000/ZX-250 Reference Manual
:
Server Type Server Conn
LECS Established
Local Established
:
Server Type Server Conn
LECS Established
Local Established
:
Status
Operational
Operational
Status
Operational
Operational
