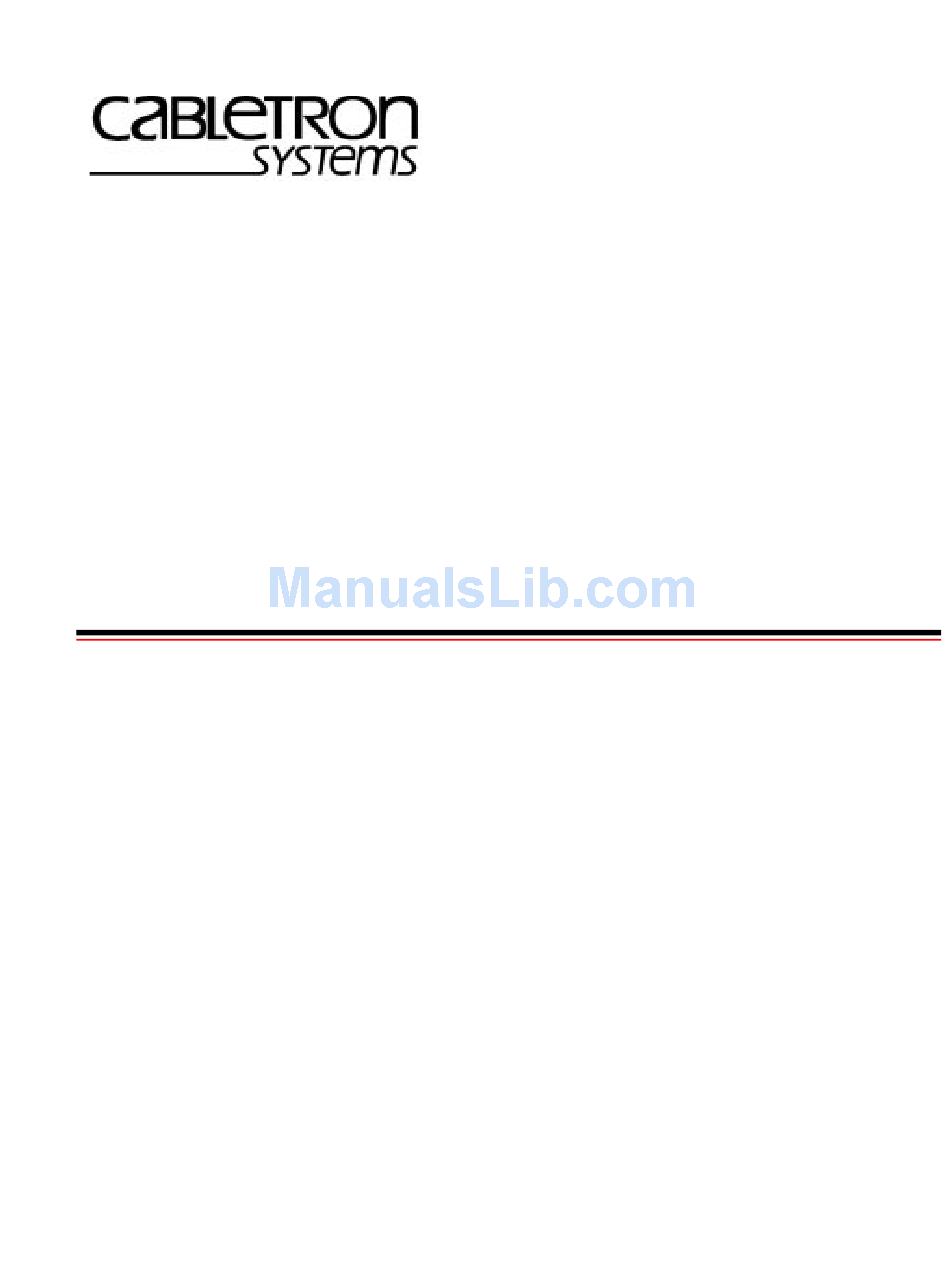

  • Page 1 SmartSwitch 6A000 Installation and Setup Guide 35 Industrial Way Rochester, NH 03866 (603) 332-9400 Part Number 04-0056-01 Rev. A Order Number 9033005...
  • Page 2 NOTICE Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, and software described in this manual are subject to change without notice.

  • Page 3: Fcc Class A Notice

    FCC CLASS A NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Declaration Of Conformity Addendum

    DECLARATION OF CONFORMITY ADDENDUM Application of Council Directive(s): Manufacturer’s Name: Manufacturer’s Address: Product Name: European Representative Name: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.
  • Page 5 SAFETY INFORMATION CLASS 1 LASER TRANSCEIVERS The IOM-29-4-MIX, IOM-29-4-IR, IOM-29-4-LR, IOM-39-1 and IOM-39-1-LR connectors use Class 1 Laser transceivers. Read the following safety information before installing or operating one of these modules. The Class 1 Laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments.
  • Page 6 FIBER OPTIC PROTECTIVE CAPS READ BEFORE REMOVING FIBER OPTIC PROTECTIVE CAPS. Warning Cable assemblies and MMF/SMF ports are shipped with protective caps to prevent contamination. To avoid contamination, replace port caps on all fiber optic devices when not in use. Cable assemblies and MMF/SMF ports that become contaminated may experience signal loss or difficulty inserting and removing cable assemblies from MMF/SMF ports.
  • Page 7 REGULATORY COMPLIANCE SUMMARY SAFETY The SmartSwitch 6A000 meets the safety requirements of UL 1950, CSA C22.2 No. 950, EN 60950, IEC 950, and 73/23/EEC. The SmartSwitch 6A000 meets the EMC requirements of FCC Part 15, EN 55022, CSA C108.8, VCCI V-3/93.01, EN 50082-1, and 89/336/EEC.

  • Page 8: Revision History

    REVISION HISTORY Document Name: SmartSwitch 6A000 Installation and Setup Guide Document Part Number: 04-0056-01 Rev. A Document Order Number: 9033005 Author: Bruce Jordan Editor: Ayesha Maqsood Illustrator: Michael Fornalski Date Revision >ÀV…Ê£™™™ £ viii SmartSwitch 6A000 Installation and Setup Guide Description Initial release First revision...

  • Page 9: Table Of Contents

    Configuring the Switch ........
  • Page 10 Table of Contents Repair Services ..............A-2 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 11: List Of Figures

    View of individual switch in network ........
  • Page 12 List of Figures SmartSwitch 6A000 Installation and Setup Guide...

  • Page 13: Specifications

    List of Tables LIST OF TABLES Table 2-1 I/O module ID numbers............. 2-2 Table 2-2 SmartSwitch 6000 contents.
  • Page 14 List of Tables xiv SmartSwitch 6A000 Installation and Setup Guide...

  • Page 15: Introduction

    Welcome to the SmartCell 6A000 Installation and Setup Manual. The SmartCell 6A000 ATM switch is a module that fits into the SmartSwitch 6000 chassis. You can install as many as five SmartCell 6A000 switches into a SmartSwitch 6000 chassis (using the 6C305-3 power supply). The module is hot swap-able, meaning that you can install and remove it without turning off or disconnecting the chassis.
  • Page 16 Introduction 1-2 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 17: Switch Installation

    INSPECTING THE SWITCH Depending on the configuration ordered, your switch looks similar to one of the units in the drawing in Figure 2-1. The 6A000-04, shown on the left, has four I/O modules. The 6A000-02, shown on the right, has two I/O modules; the empty I/O module positions are covered by metal blanks.

  • Page 18: Figure 2-1 6A000-04 And 6A000-02 Front Panels

    Inspecting the Switch Figure 2-1 6A000-04 and 6A000-02 front panels Inspect the switch and make certain that its configuration corresponds to what was ordered. Also, make certain that the input/output modules (IOMs) are of the correct type and number (See Table 2-1).

  • Page 19: Installing The Switch

    The SmartSwitch 6A000 is hot swappable, meaning that you can install and remove it without turning off or unplugging the SmartSwitch 6000 chassis. You can install as many as five switch modules in each chassis (using the 6C205-3 power supply). In this configuration, the SmartSwitch 6A000 modules provide up to 75 user ports. Modules should be connected with inter-module trunks if traffic must cross between modules.
  • Page 20 Slide the switch into the chassis. The switch module obscures the view of the tracks at the bottom of the chassis, so be sure to look at that area as you begin to slide the switch into the chassis. Close the ejectors. The installation is complete.

  • Page 21: Figure 2-2 Installing The Smartswitch 6A000

    Switch Installation Circuit Card Metal Backpanel Card Guides Figure 2-2 Installing the SmartSwitch 6A000 Proceed to Chapter 3, "Configuring the Switch." Rotate ejector to lock in place SmartSwitch 6A000 Installation and Setup Guide 2-5 Installing the Switch...
  • Page 22 Installing the Switch Switch Installation 2-6 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 23: Configuring The Switch

    3 CONFIGURING THE SWITCH SWITCH CONFIGURATION Initial configuration of your SmartSwitch 6A000 consists of setting the name of the switch, its Ethernet IP address, subnet mask, and default gateway. Once this is done, the switch is reachable for additional configuration and administration through its Ethernet interface.

  • Page 24: Figure 3-1 Smartswitch 6A000 Console And Network Connections

    Start the dumb terminal or PC and its terminal emulation software; then turn on the SmartSwitch 6A000 switch. As the SmartSwitch 6A000 powers up, a series of diagnostic messages appears on the terminal’s screen. After the diagnostics are finished, the switch prompts for a password. Enter the default password, “ .” admin The switch prompts for the information necessary to make the switch accessible through your Ethernet network.

  • Page 25: Backup Configuration

    Configuring the Switch Once you enter these parameters and reboot the switch, you can log off the local console connection. You can perform all additional configuration over your Ethernet network using a telnet session. Only one console connection is allowed at any time. To reach the SmartSwitch...

  • Page 26: Using The Console

    Rebooting is required to ensure correct operation, Do you want to reboot now? Confirm(y/n)?:y USING THE CONSOLE Use the SmartSwitch 6A000 console interface to configure and manage your switch. The following is a description of the console interface and its operation. 3.2.1 Port Numbering The SmartSwitch 6A000 is capable of containing both physical and virtual ports.

  • Page 27: Virtual Ports

    ): Change the values that currently define a switch-attribute. modify : Start a process on the switch; for example, start the LAN Emulation Configuration Server. start : Restart a process on the switch; for example, restart a client. restart : Remove assigned values;...
  • Page 28 More(<space>/q)?: When you accept the ( Note abridged. 3-6 SmartSwitch 6A000 Installation and Setup Guide is the operator, is the switch-attribute, and portconfig Current autoConfig other private 4096 Oper State down Oper State down Used 0.00...

  • Page 29: Console Time-Out

    Configuring the Switch 3.2.3 Console Time-out The console can be configured to exit if it does not sense a key stroke within a defined length of time. By default, the SmartSwitch 6A000 is set to never time-out (value = 0). To activate the time-out feature, use the...

  • Page 30: Ambiguous Commands

    SmartSwitch # 3.2.6 Console Help The console provides several levels of help for console commands. For example, to list the switch attributes that can be used with a particular operator, enter the word attributes that are affected by the SmartSwitch # help add...
  • Page 31 Scope(0) MetricsTag(0) SmartSwitch # To back out of any command, press the Note For complete information about using you SmartSwitch ATM switch, see the Note SmartSwitch ATM User Guide. : a3 : 39:00:00:00:00:00:00:00:00:00:14:72:80 : ? — We want help on this :exterior key before entering the last value.
  • Page 32 Using the Console Configuring the Switch 3-10 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 33: Atm Administrator

    Perform transactions across multiple switches (for example, create an ELAN when the LANE servers are not co-located • List and sort all connections, virtual connections, ports, modules, and other switch information Capabilities that are not available from the SmartSwitch ATM Administrator are Note debugging and tracing.

  • Page 34: Figure 4-1 Atm Administrator Physical Topology View

    Introduction ATM Administrator Figure 4-1 ATM Administrator physical topology view 4-2 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 35: Figure 4-2 Atm Administrator Pnni Topology View

    ATM Administrator Introduction Figure 4-2 ATM Administrator PNNI topology view SmartSwitch 6A000 Installation and Setup Guide 4-3...

  • Page 36: Figure 4-3 View Of Individual Switch In Network

    Introduction ATM Administrator Figure 4-3 View of individual switch in network 4-4 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 37: Starting Atm Administrator

    ATM Administrator Figure 4-4 ATM Administrator drag-and-drop capability STARTING ATM ADMINISTRATOR When you use SmartSwitch ATM Administrator for the first time, you should change the default passwords to prevent unauthorized access to the application. SmartSwitch ATM Administrator arrives with two user accounts set up. These accounts are described in Table 4-1.

  • Page 38: Managing Your Atm Network

    MANAGING YOUR ATM NETWORK SmartSwitch ATM Administrator can connect to your ATM switches through either the switch’s Ethernet interface or through a direct ATM connection to one of the ATM switches. In the later case, your NMS workstation must contain an ATM network adapter card.

  • Page 39: Ethernet Connectivity

    Ethernet may pose connectivity challenges. For example, in figure Figure 4-6, two ATM switches are displayed as generic switch icons (gray boxes, identified by the IP address of their LANE client). In this case, each of these generic switches are not connected to the Ethernet network, but are connected to the other switches through ATM only.

  • Page 40: Figure 4-6 Switches That Atm Administrator Cannot Reach Through Ethernet

    Figure 4-7 is a diagram of the ATM and Ethernet connectivity of the network map shown in Figure 4-6. Notice that the generic switches, 90.1.1.20 (Switch 4) and 90.1.1.24 (Switch 5), are not connected to the Ethernet network. As a result, switches 4 and 5 do not have direct access to the NMS, and the NMS (using an Ethernet connection) does not know how to reach the subnet 90.0.0.0, which is Switches 4 and 5’s ELAN.
  • Page 41 ATM networks. For instance, in Figure 4-8, after the route is added to the NMS, a route must be added to Switch 4 that specifies Switch 1’s LANE client as the gateway to the Ethernet network. To add the route on Switch 4, use the...

  • Page 42: Accessing Online Help

    Managing Your ATM Network Ethernet Network = 126.231.44.0 ENET = 126.231.44.16 Switch 3 LEC = 90.1.1.16 Route specifying 90.1.1.15 as gateway to 126.231.44.0 Figure 4-8 Routes that allow connectively between ATM and Ethernet Once these routes are added, the NMS running ATM Administrator and the switches connected only through ATM can now reach each other.

  • Page 43: Figure 4-10 Atm Administrator Help Topic Dialog Box

    ATM Administrator Click the Contents tab to show the Table of Contents of the online help. Click on the topic you wish to read about. Click the Index tab to select from an alphabetical list of help topics. Click the Find tab to search for a particular topic. Figure 4-10 ATM Administrator Help Topic dialog box Managing Your ATM Network SmartSwitch 6A000 Installation and Setup Guide 4-11...
  • Page 44 Managing Your ATM Network ATM Administrator 4-12 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 45: Specifications

    5 SPECIFICATIONS This chapter contains SmartSwitch 6A000 ATM switch module firmware, hardware, technical, and physical specifications. FRONT PANEL This section describes the meaning of the SmartSwitch 6A000 module LEDs (see Table 5-1). Figure 5-1 illustrates the front panel of the SmartSwitch 6A000 module.

  • Page 46: Technical Specifications

    Specification Value Processor i960CF, 33 MHz Switching engine 2.5 Gbps, non-blocking Max I/O ports 7 for 6A000-02; 15 for 6A000-04 Switch latency 10 microseconds CPU DRAM memory 32 MB Buffer memory (cells) 32 K flash memory 8 MB Serial port RS-232c compliant;...
  • Page 47 Specifications Table 5-3 Physical Specifications Specification Dimensions Product weight (with max I/O modules) Power requirements (typical) Power dissipation (typical) Operating temperature Operating humidity Table 5-4 ATM Port Specifications Media Port Speed Framing SMF-IR 155 Mbps STS-3c or STM-1 SMF-IR 622 Mbps STS-12c or STM-4 SC SMF-LR 155 Mbps STS-3c or STM-1...
  • Page 48 MIB II (RFC 1213) Interface Table MIB (RFC 1573) AToM MIB (RFC 1695) AToM2 MIB LANE MIB (ATM Forum) ILMI 4.0 MIB (ATM Forum) IP over ATM MIB PNNI MIB SmartSwitch ATM Switch MIBs (proprietary) DB-9 Pin Specifications DB-9 Description Receive Transmit Ground...
  • Page 49 Specifications Technical Specifications SmartSwitch 6A000 Installation and Setup Guide 5-5...
  • Page 50 Technical Specifications Specifications 5-6 SmartSwitch 6A000 Installation and Setup Guide...

  • Page 51: A.1 Telephone Assistance

    APPENDIX A TECHNICAL SUPPORT This appendix tells you what to do if you need technical support for your SmartSwitch 6A000 ATM switch. Cabletron offers several support and service programs that provide high-quality support to our customers. For technical support, first contact your place of purchase. If you need additional assistance, contact Cabletron Systems, Inc. There are several easy ways to reach Cabletron Customer Support and Service.

  • Page 52: A.5 Hardware Warranty

    Hardware Warranty • Hardware model number, software version, and switch configuration (that is, what part types are in what slots) HARDWARE WARRANTY Cabletron warrants its products against defects in the physical product for one year from the date of receipt by the end user (as shown by Proof of Purchase).
