5 When you see the message Auto Configuration Successful, click the OK button to
dismiss the dialog box.
Note: If the auto-configuration procedure fails, verify that the cables are connected correctly between the
processor and the serial port on your computer, and then try again. If you are still unable to auto-configure the
port, refer to your RSLinx documentation for further troubleshooting steps.
1.8

Connecting Your PC to the Module

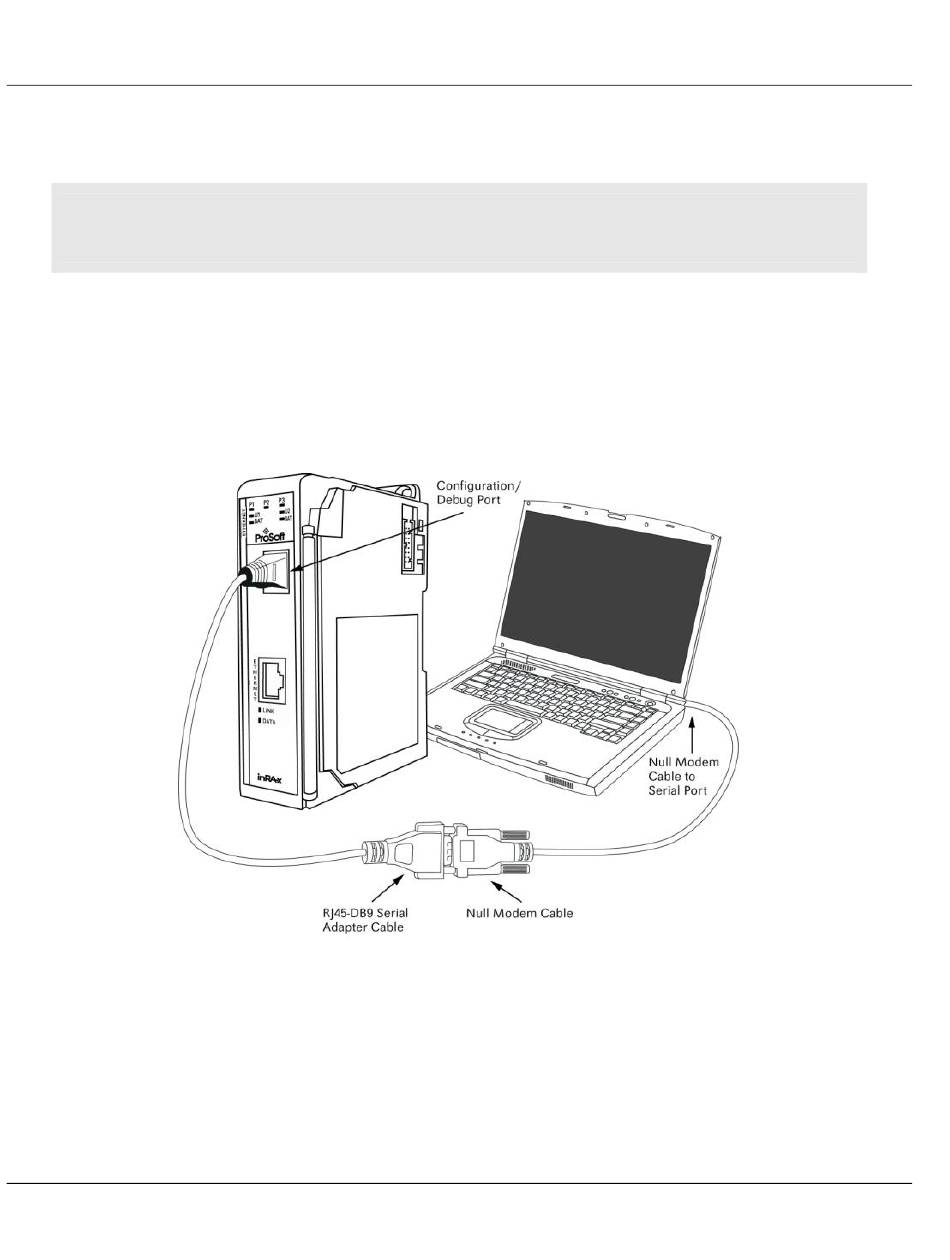

With the module securely mounted, connect your PC to the CFG (Configuration/Debug) port
using an RJ45-DB-9 Serial Adapter Cable and a Null Modem Cable.
1 Attach both cables as shown.
2 Insert the RJ45 cable connector into the CFG port of the module.
3 Attach the other end to the serial port on your PC.
