7.4.2
Spare parts and
tools
Prerequisites
Changing
O
Maintenance manual
GMK5200-1

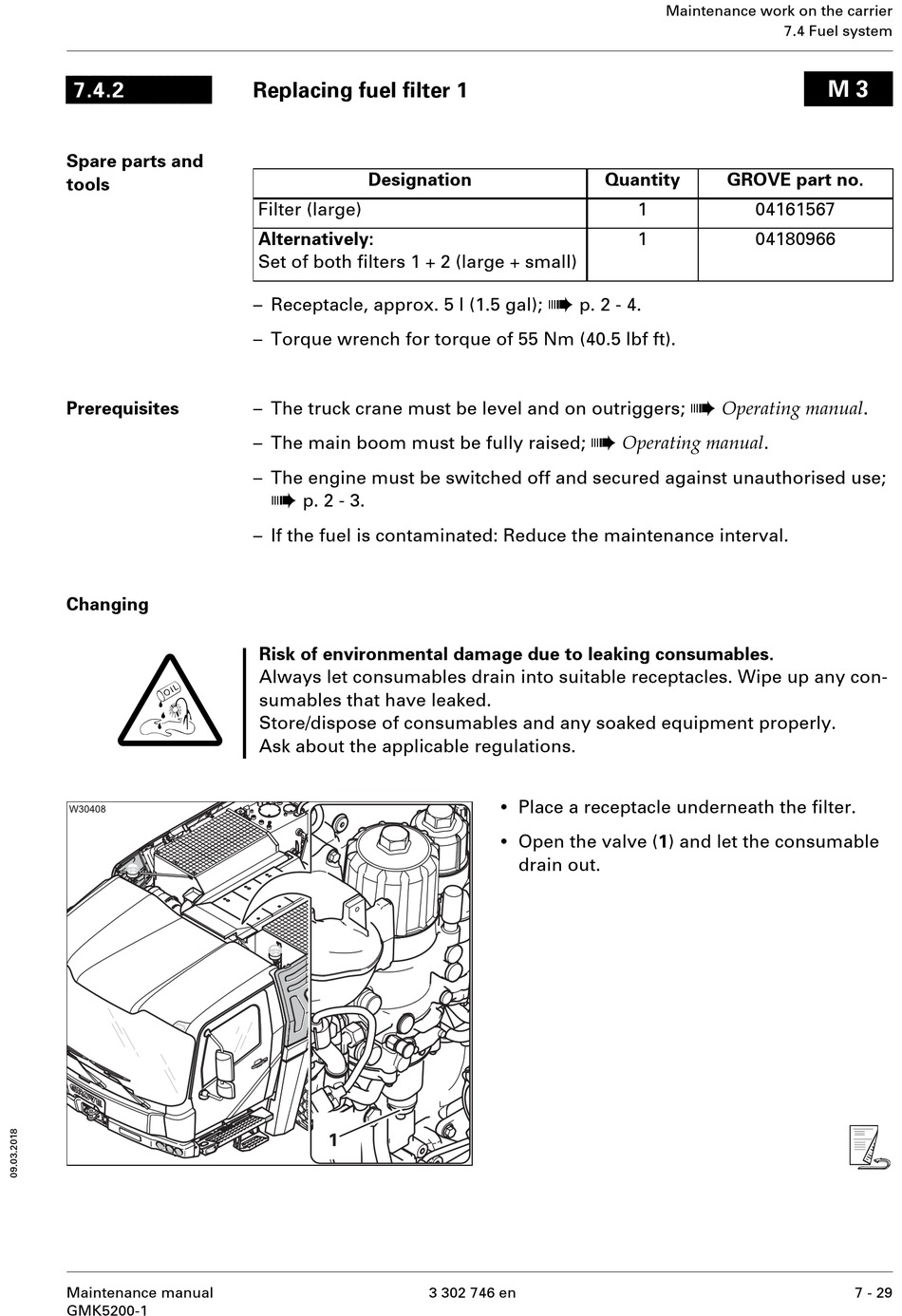

Replacing fuel filter 1

Designation
Filter (large)
Alternatively:
Set of both filters 1 + 2 (large + small)
– Receptacle, approx. 5 l (1.5 gal);
– Torque wrench for torque of 55 Nm (40.5 lbf ft).
– The truck crane must be level and on outriggers;
– The main boom must be fully raised;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– If the fuel is contaminated: Reduce the maintenance interval.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
à
p. 2 - 4.
à
•
Place a receptacle underneath the filter.
•
Open the valve (1) and let the consumable
drain out.
3 302 746 en
Maintenance work on the carrier
Quantity GROVE part no.
1 04161567
1 04180966
à
Operating manual .
Operating manual .
7.4 Fuel system
M 3
s
7 - 29
