7.12
7.12.1
Oil, spare parts,
tools
Prerequisites
Checking the oil
level
S
S
Maintenance manual
GMK5200-1

Suspension

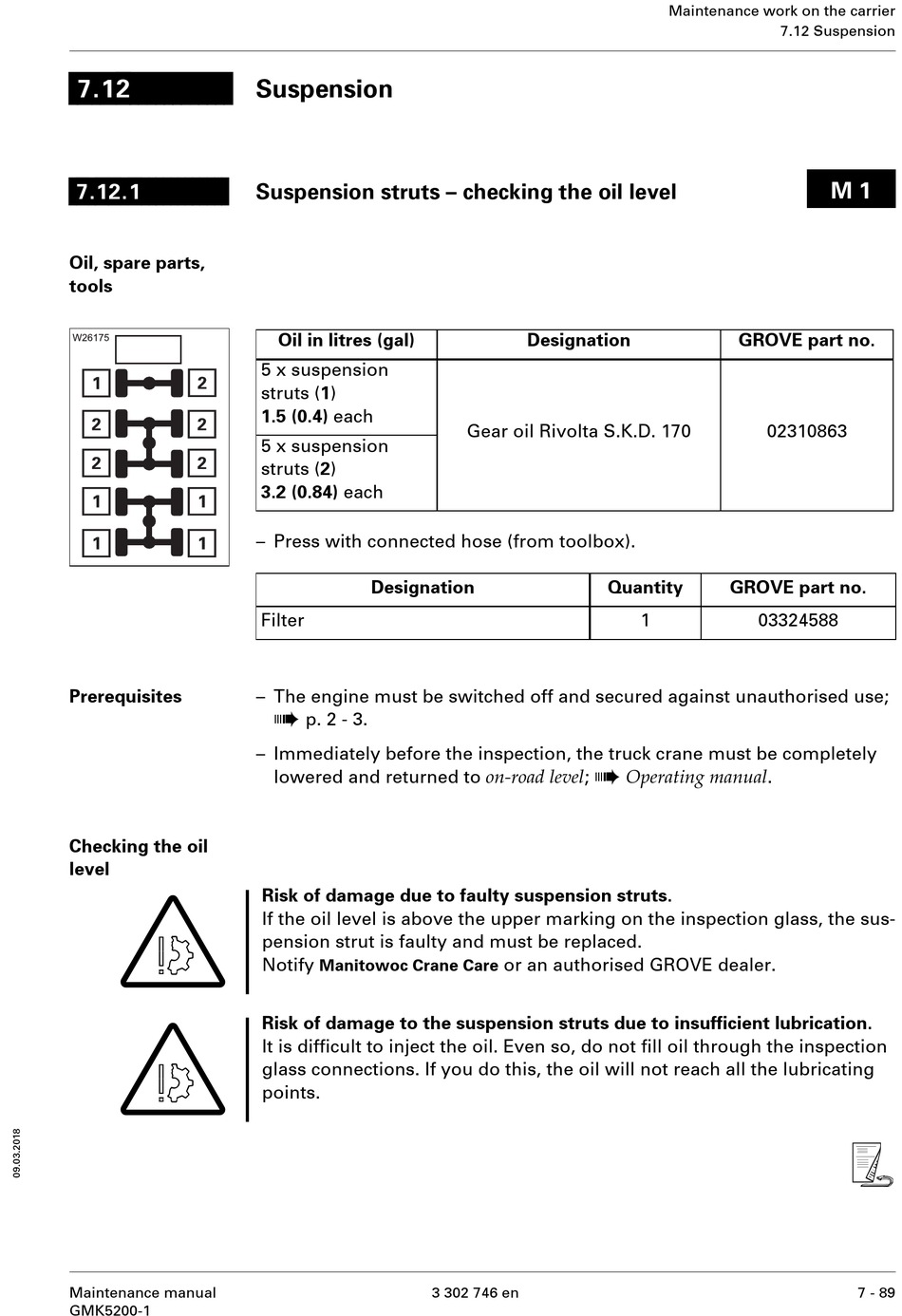

Suspension struts – checking the oil level
Oil in litres (gal)
5 x suspension
struts (1)
1.5 (0.4) each
5 x suspension
struts (2)
3.2 (0.84) each
– Press with connected hose (from toolbox).
Designation
Filter
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– Immediately before the inspection, the truck crane must be completely
lowered and returned to on-road level ;
Risk of damage due to faulty suspension struts.
If the oil level is above the upper marking on the inspection glass, the sus-
pension strut is faulty and must be replaced.
Notify
Manitowoc Crane Care
Risk of damage to the suspension struts due to insufficient lubrication.
It is difficult to inject the oil. Even so, do not fill oil through the inspection
glass connections. If you do this, the oil will not reach all the lubricating
points.
Designation
Gear oil Rivolta S.K.D. 170
à
or an authorised GROVE dealer.
3 302 746 en
Maintenance work on the carrier
GROVE part no.
02310863
Quantity GROVE part no.
1 03324588
Operating manual .
7.12 Suspension
M 1
s
7 - 89
