7.3.4
Spare parts and
tools
Prerequisites
Replacing the air
filter
Maintenance manual
GMK5200-1

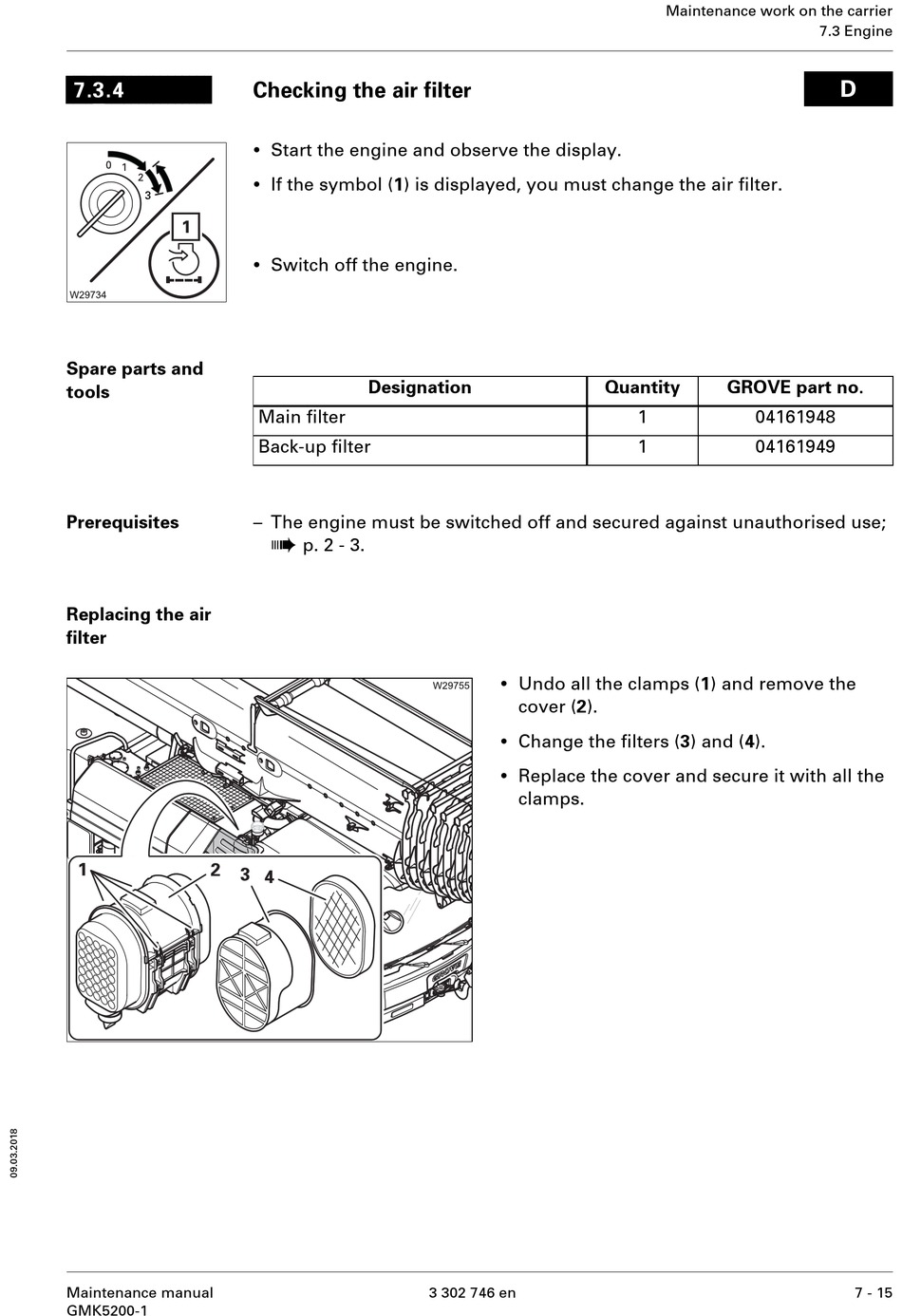

Checking the air filter

•
Start the engine and observe the display.
•
If the symbol (1) is displayed, you must change the air filter.
•
Switch off the engine.
Designation
Main filter
Back-up filter
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
•
Undo all the clamps (1) and remove the
cover (2).
•
Change the filters (3) and (4).
•
Replace the cover and secure it with all the
clamps.
3 302 746 en
Maintenance work on the carrier
Quantity GROVE part no.
1 04161948
1 04161949
7.3 Engine
D
7 - 15
