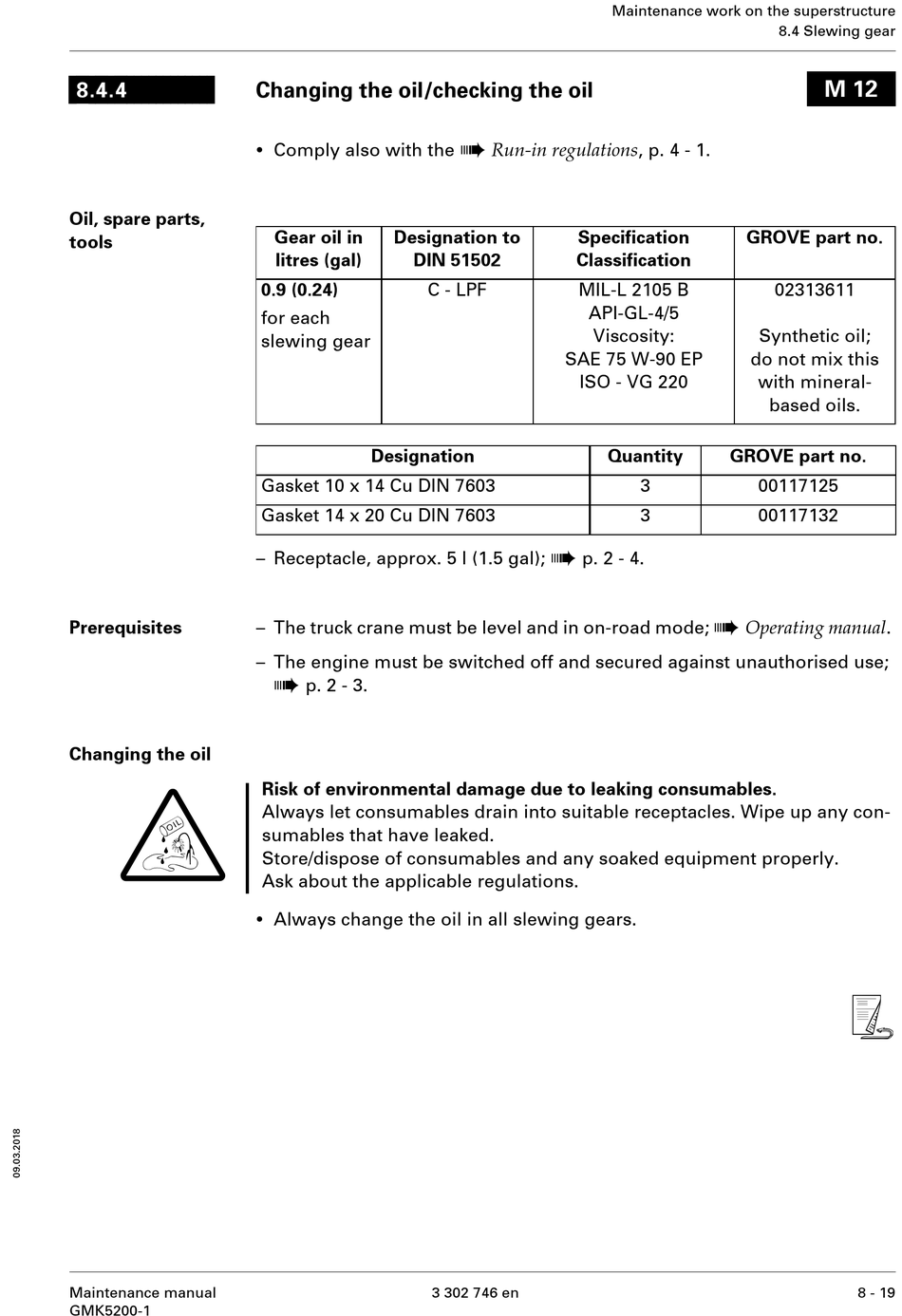

Changing The Oil/Checking The Oil - Manitowoc Grove GMK 5200-1 Maintenance Manual

8.4.4
Oil, spare parts,
tools
Prerequisites
Changing the oil
O
Maintenance manual
GMK5200-1

Changing the oil/checking the oil

•
Comply also with the
Gear oil in Designation to
litres (gal) DIN 51502
0.9 (0.24)
for each
slewing gear
Designation
Gasket 10 x 14 Cu DIN 7603
Gasket 14 x 20 Cu DIN 7603
– Receptacle, approx. 5 l (1.5 gal);
– The truck crane must be level and in on-road mode;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
•
Always change the oil in all slewing gears.
à
Run-in regulations , p. 4 - 1.
Specification
Classification
C - LPF MIL-L 2105 B
API-GL-4/5
Viscosity:
SAE 75 W-90 EP
ISO - VG 220
à
p. 2 - 4.
3 302 746 en
Maintenance work on the superstructure
GROVE part no.
02313611
Synthetic oil;
do not mix this
with mineral-
based oils.
Quantity GROVE part no.
3 00117125
3 00117132
à
Operating manual .
8.4 Slewing gear
M 12
s
8 - 19
