Manitowoc Grove GMK 5200-1 Maintenance Manual page 303

Refrigerant
Compressor oil:
Filler connections
Maintenance manual
GMK5200-1
Fill quantity
in kg (lbs)
1,0 (2,2)
1-circuit (3 KW)
2 x 0.95 (2.1)
2-circuit (6 KW)
POE OIL; EMKARATE RL68H
Designation
Tetrafluoroethane (R134a)

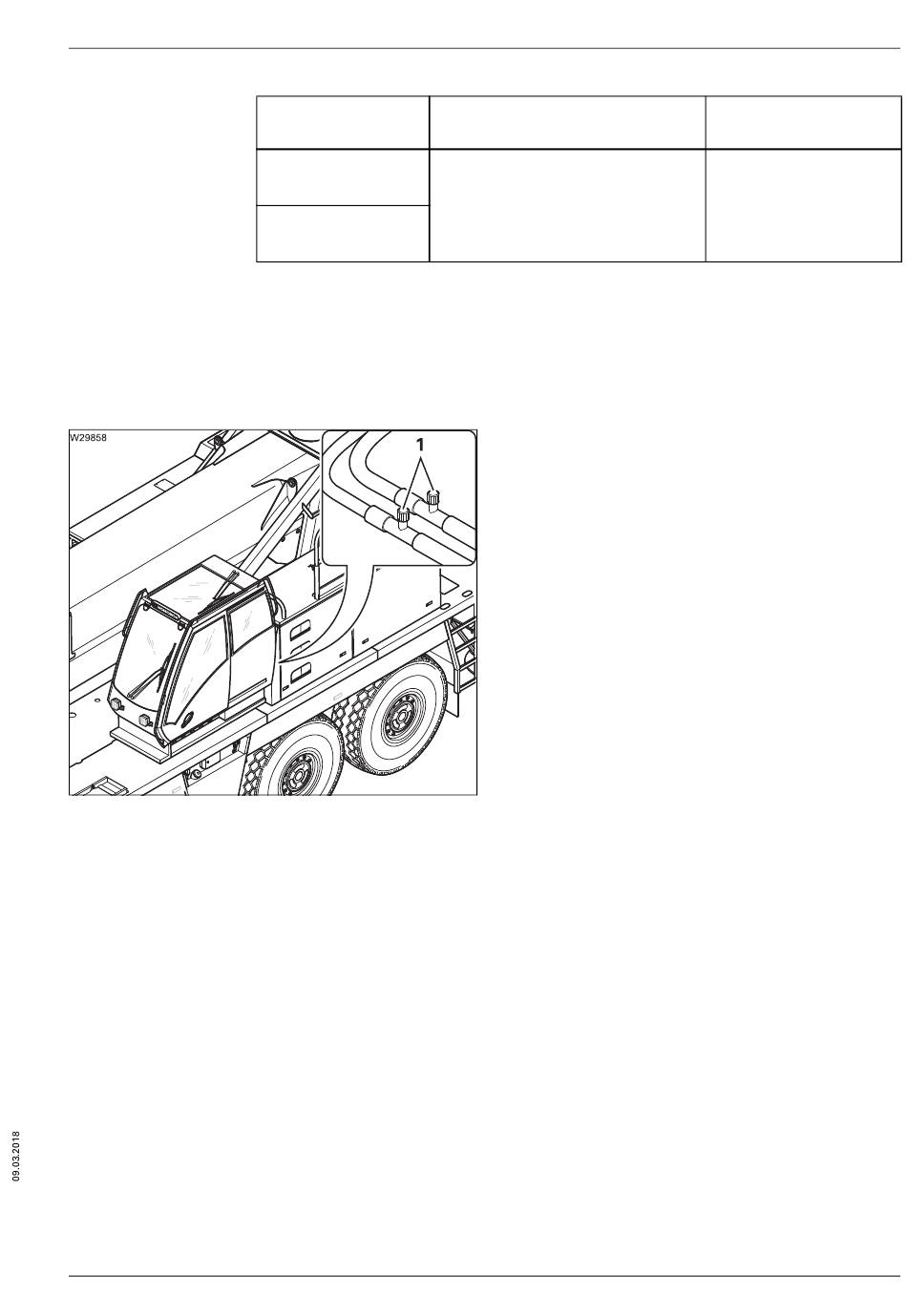

The filler connections (1) for the refrigerant are
on the compressor behind the cover (2).
Depending on the output (KW) of the
air-conditioning system there may be two
separate refrigerant circuits, which must be
filled separately. There are then four filler
connections (1) instead of two.
