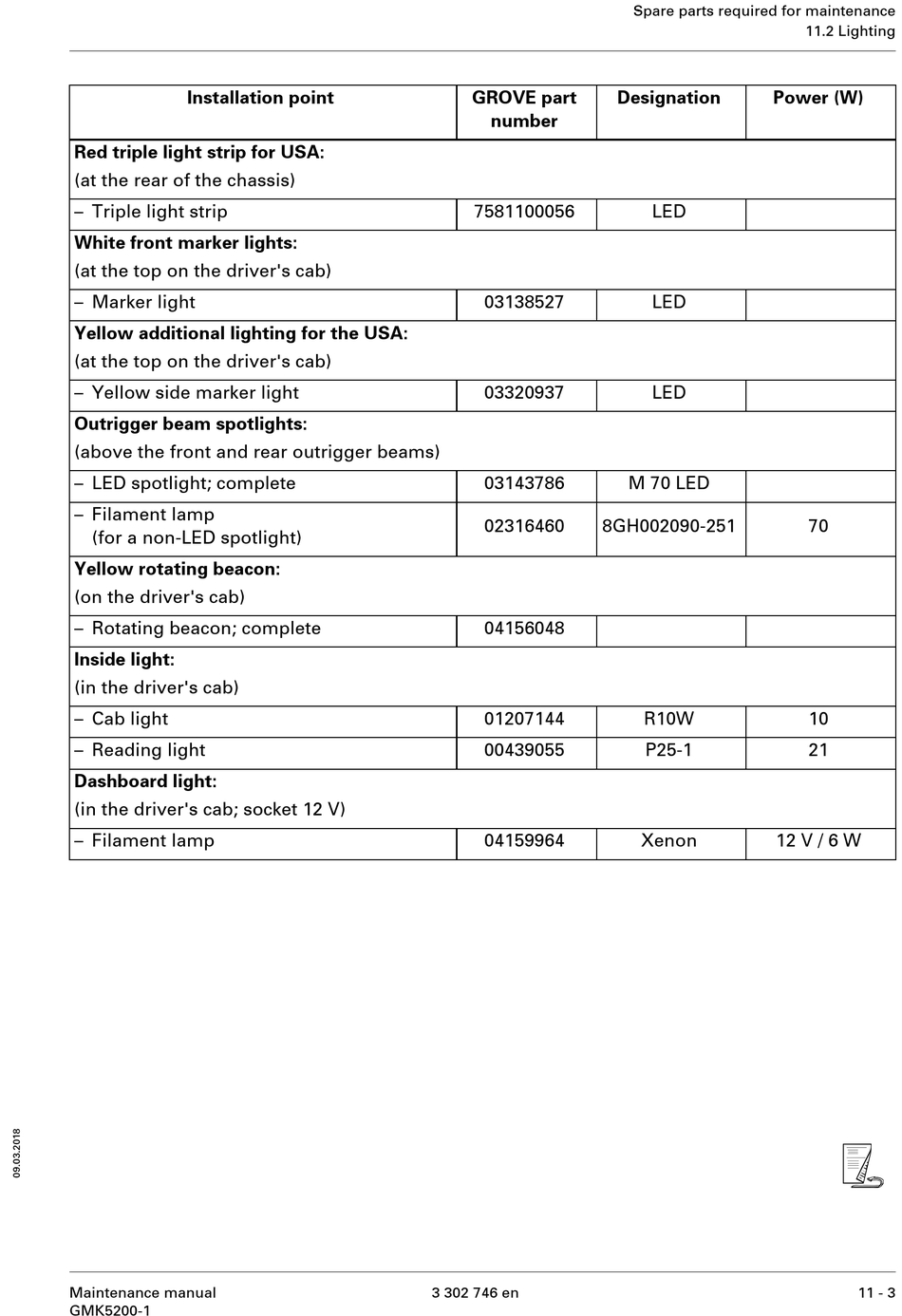

Manitowoc Grove GMK 5200-1 Maintenance Manual page 325

Installation point
Red triple light strip for USA:
(at the rear of the chassis)
– Triple light strip
White front marker lights:
(at the top on the driver's cab)
– Marker light
Yellow additional lighting for the USA:
(at the top on the driver's cab)
– Yellow side marker light
Outrigger beam spotlights:
(above the front and rear outrigger beams)
– LED spotlight; complete
– Filament lamp
(for a non-LED spotlight)
Yellow rotating beacon:
(on the driver's cab)
– Rotating beacon; complete
Inside light:
(in the driver's cab)
– Cab light
– Reading light
Dashboard light:
(in the driver's cab; socket 12 V)
– Filament lamp
Maintenance manual
GMK5200-1
GROVE part
number
7581100056
03138527
03320937
03143786
02316460 8GH002090-251
04156048
01207144
00439055
04159964
3 302 746 en
Spare parts required for maintenance
Designation Power (W)
LED
LED
LED
M 70 LED
R10W
P25-1
Xenon 12 V / 6 W
11.2 Lighting
70
10
21
s
11 - 3
