8.9
8.9.1
Spare parts and
tools
Prerequisites
Maintenance manual
GMK5200-1

Cable drums

Maintenance of the slip ring assemblies
Designation
Cover gasket for cable drum 1
Cover gasket for cable drum 2
– Clean, lint-free cloth.
– Dry, oil-free compressed air.
– All counterweight plates must be removed – the opening for cable drum 2
at the rear of the turntable must be accessible;
– The main boom must be set down on the support;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The ignition must be switched off in the driver's cab;

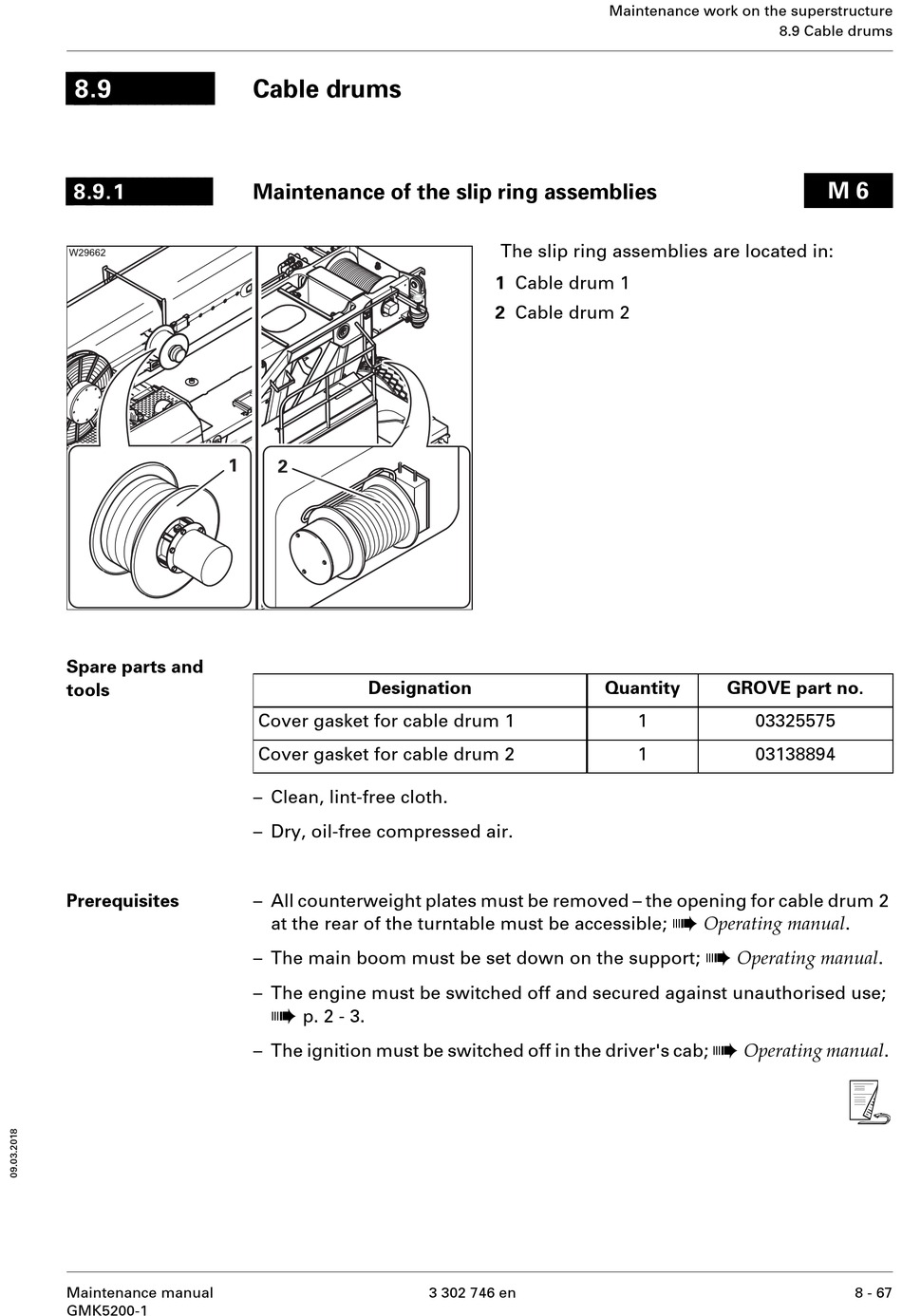

The slip ring assemblies are located in:
1 Cable drum 1
2 Cable drum 2
3 302 746 en
Maintenance work on the superstructure
Quantity GROVE part no.
1 03325575
1 03138894
à
Operating manual .
à
Operating manual .
à
Operating manual .
8.9 Cable drums
M 6
s
8 - 67
