Maintenance work on the carrier
7.3 Engine
7 - 12
•

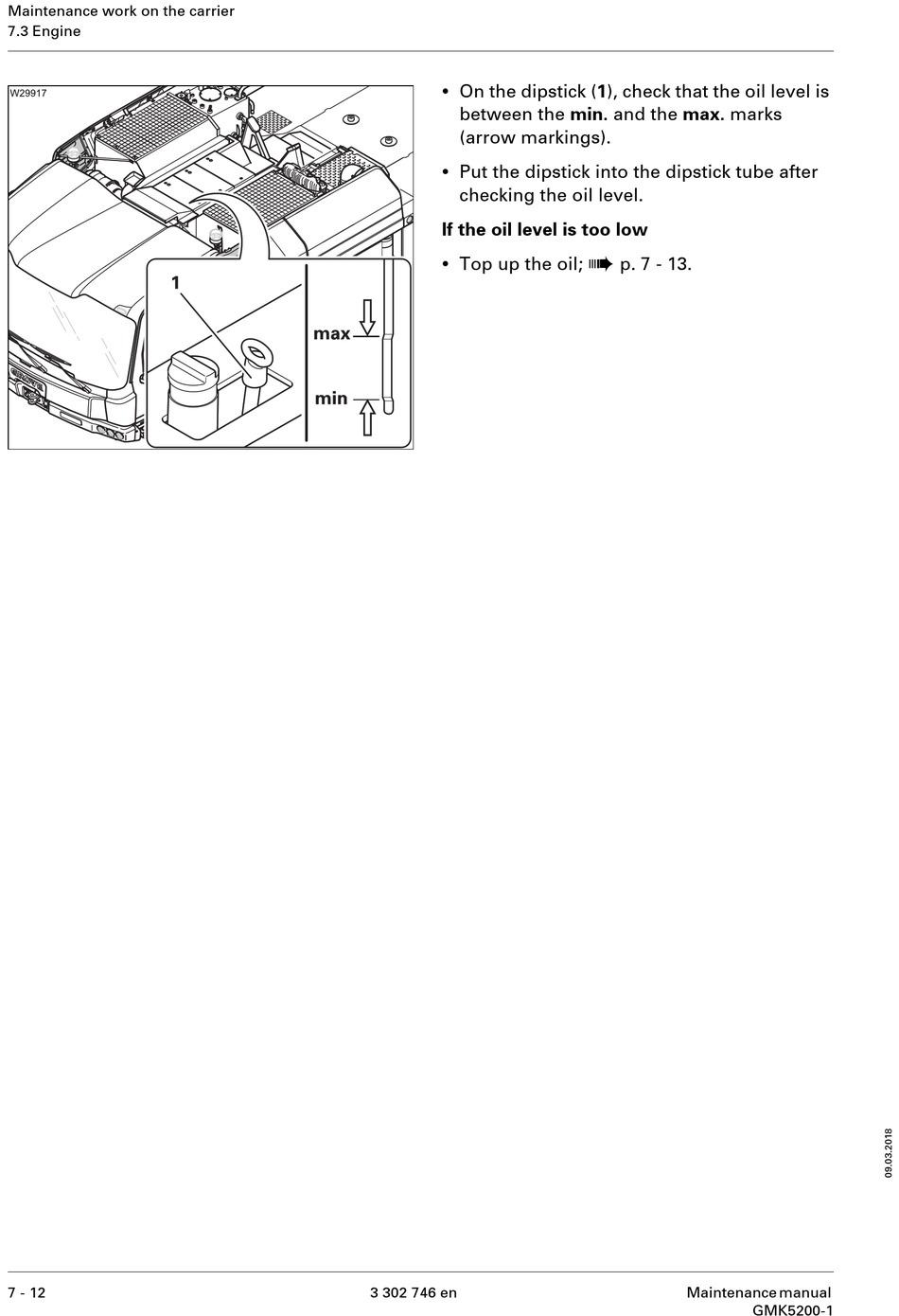

On the dipstick (1), check that the oil level is
between the min. and the max. marks
(arrow markings).
•
Put the dipstick into the dipstick tube after
checking the oil level.
If the oil level is too low
•
Top up the oil;
3 302 746 en
à
p. 7 - 13.
