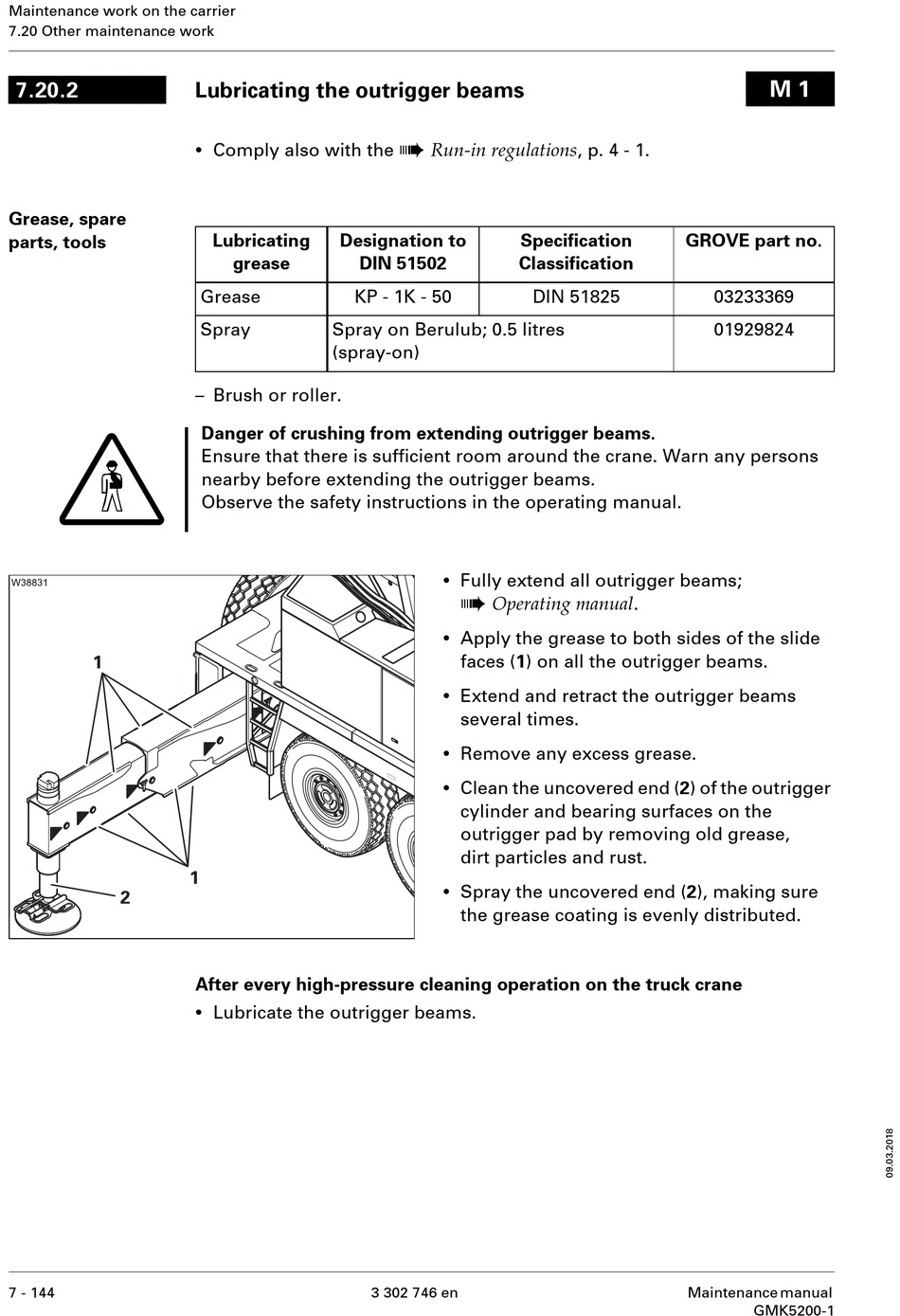

Lubricating The Outrigger Beams - Manitowoc Grove GMK 5200-1 Maintenance Manual

Maintenance work on the carrier
7.20 Other maintenance work
7.20.2
Grease, spare
parts, tools
G
7 - 144

Lubricating the outrigger beams

•
Comply also with the
Lubricating Designation to
grease DIN 51502
Grease KP - 1K - 50
Spray Spray on Berulub; 0.5 litres
(spray-on)
– Brush or roller.
Danger of crushing from extending outrigger beams.
Ensure that there is sufficient room around the crane. Warn any persons
nearby before extending the outrigger beams.
Observe the safety instructions in the operating manual.
After every high-pressure cleaning operation on the truck crane
•
Lubricate the outrigger beams.
à
Run-in regulations , p. 4 - 1.
Specification
Classification
DIN 51825
•
Fully extend all outrigger beams;
à
Operating manual .
•
Apply the grease to both sides of the slide
faces (1) on all the outrigger beams.
•
Extend and retract the outrigger beams
several times.
•
Remove any excess grease.
•
Clean the uncovered end (2) of the outrigger
cylinder and bearing surfaces on the
outrigger pad by removing old grease,
dirt particles and rust.
•
Spray the uncovered end (2), making sure
the grease coating is evenly distributed.
3 302 746 en
M 1
GROVE part no.
03233369
01929824
Maintenance manual
GMK5200-1
