Maintenance work on the carrier
7.6 Transmission
7.6.5
Oil, spare parts
and tools
Prerequisites
Draining oil
G
O
7 - 46

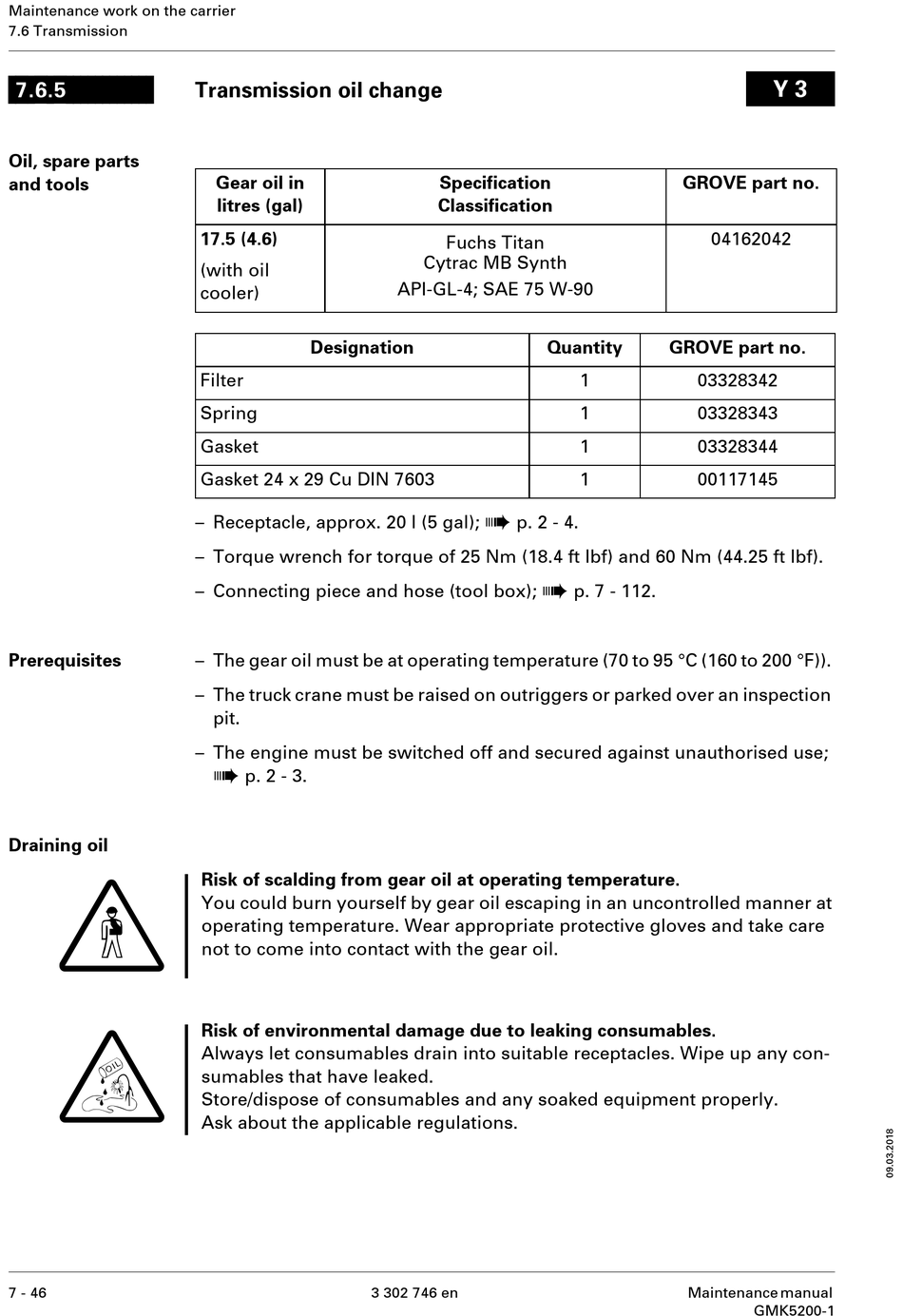

Transmission oil change

Gear oil in
litres (gal)
17.5 (4.6)
(with oil
cooler)
Designation
Filter
Spring
Gasket
Gasket 24 x 29 Cu DIN 7603
– Receptacle, approx. 20 l (5 gal);
– Torque wrench for torque of 25 Nm (18.4 ft lbf) and 60 Nm (44.25 ft lbf).
– Connecting piece and hose (tool box);
– The gear oil must be at operating temperature (70 to 95 °C (160 to 200 °F)).
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of scalding from gear oil at operating temperature.
You could burn yourself by gear oil escaping in an uncontrolled manner at
operating temperature. Wear appropriate protective gloves and take care
not to come into contact with the gear oil.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
Specification
Classification
Fuchs Titan
Cytrac MB Synth
API-GL-4; SAE 75 W-90
à
p. 2 - 4.
3 302 746 en
GROVE part no.
04162042
Quantity GROVE part no.
1 03328342
1 03328343
1 03328344
1 00117145
à
p. 7 - 112.
Maintenance manual
Y 3
GMK5200-1
