Prerequisites
Checking
Maintenance manual
GMK5200-1
– The crane must be rigged with an outrigger span of at least 8.95 x 7.80 m
(29.4 x 25.6 ft) and be level;
– The main boom must be fully retracted and fully raised;
manual .
– The turntable must be turned to the 0° position to the rear;
manual .
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The cover on the turntable over the centre of rotation must be removed.
– The hydraulic drives and the angle gear must have cooled down suffi-
ciently.
– The access opening and the interior space must be clean and free of oil so
that the fitter can work safely in the restricted space where the angle gear
is installed.
à
Operating manual .
•

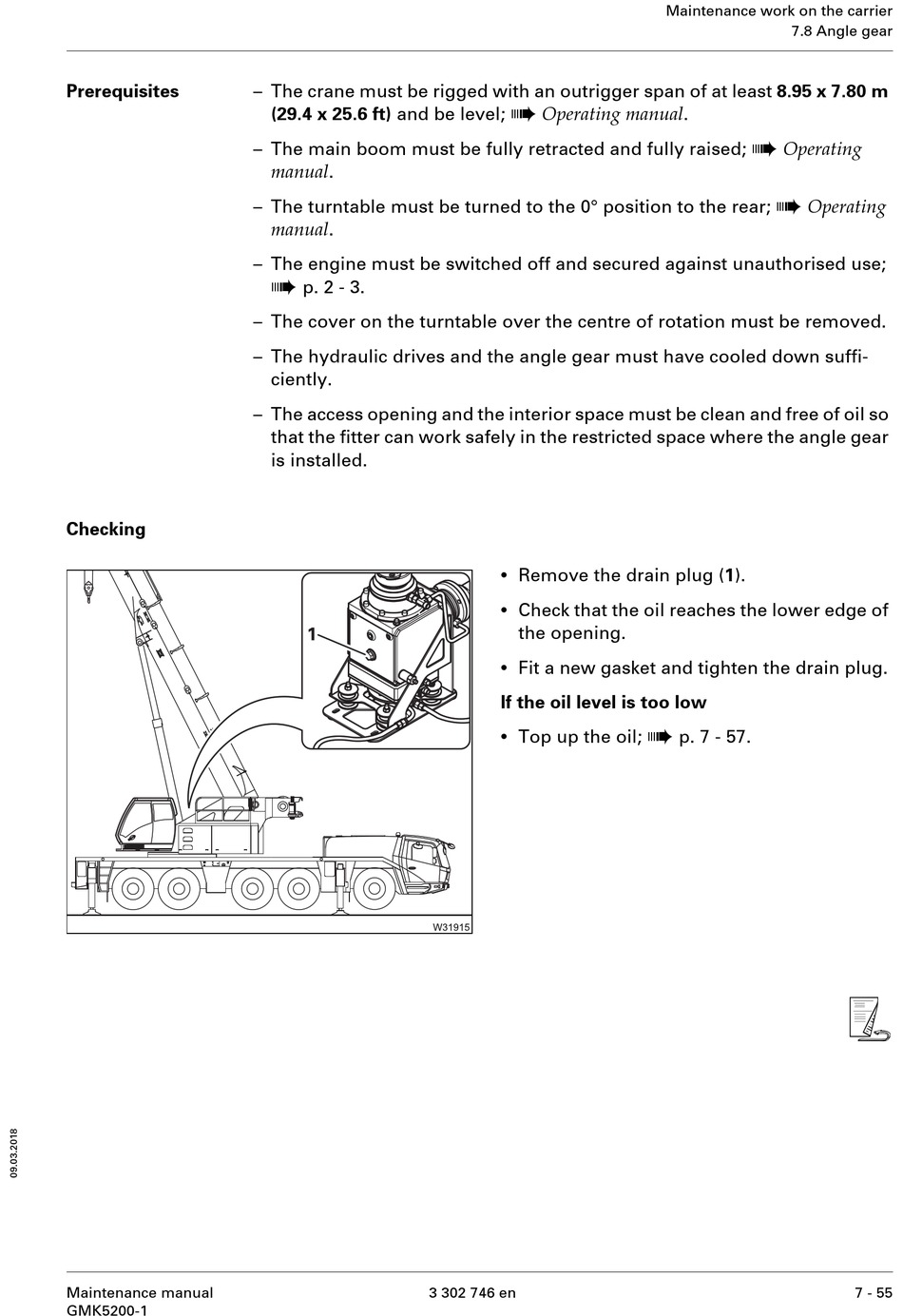

Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the opening.
•
Fit a new gasket and tighten the drain plug.
If the oil level is too low
•
Top up the oil;
3 302 746 en
Maintenance work on the carrier
7.8 Angle gear
à
Operating
à
Operating
à
p. 7 - 57.
s
7 - 55
