Changing the oil
G
O
Maintenance manual
GMK5200-1
Risk of scalding from gear oil at operating temperature.
You could burn yourself by gear oil escaping in an uncontrolled manner at
operating temperature. Wear appropriate protective gloves and take care
not to come into contact with the gear oil.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
3 302 746 en

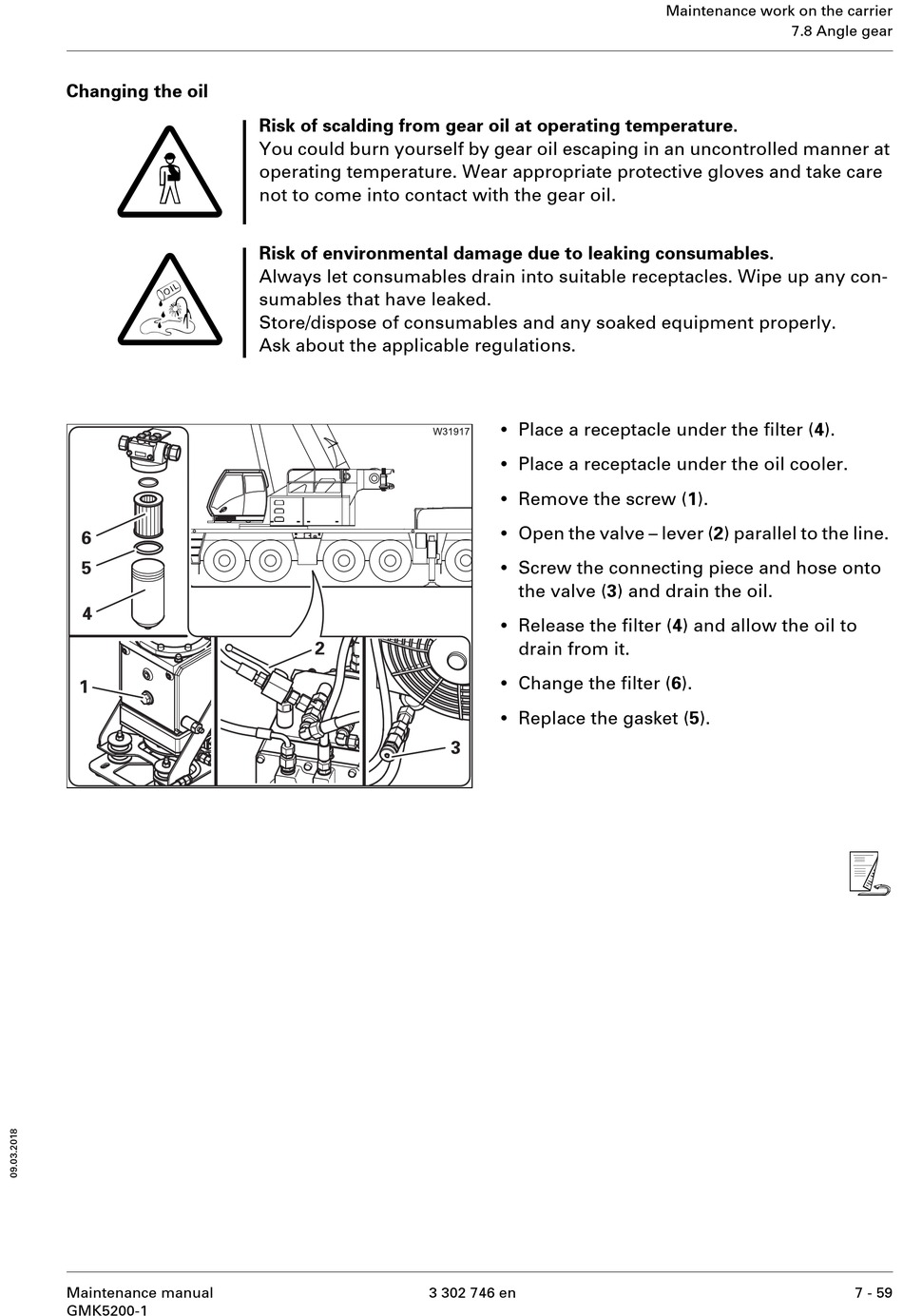

Maintenance work on the carrier
•
Place a receptacle under the filter (4).
•
Place a receptacle under the oil cooler.
•
Remove the screw (1).
•
Open the valve – lever (2) parallel to the line.
•
Screw the connecting piece and hose onto
the valve (3) and drain the oil.
•
Release the filter (4) and allow the oil to
drain from it.
•
Change the filter (6).
•
Replace the gasket (5).
7.8 Angle gear
