Maintenance work on the carrier
7.6 Transmission
Topping up the oil
Inspections after
the oil change
7 - 48
•

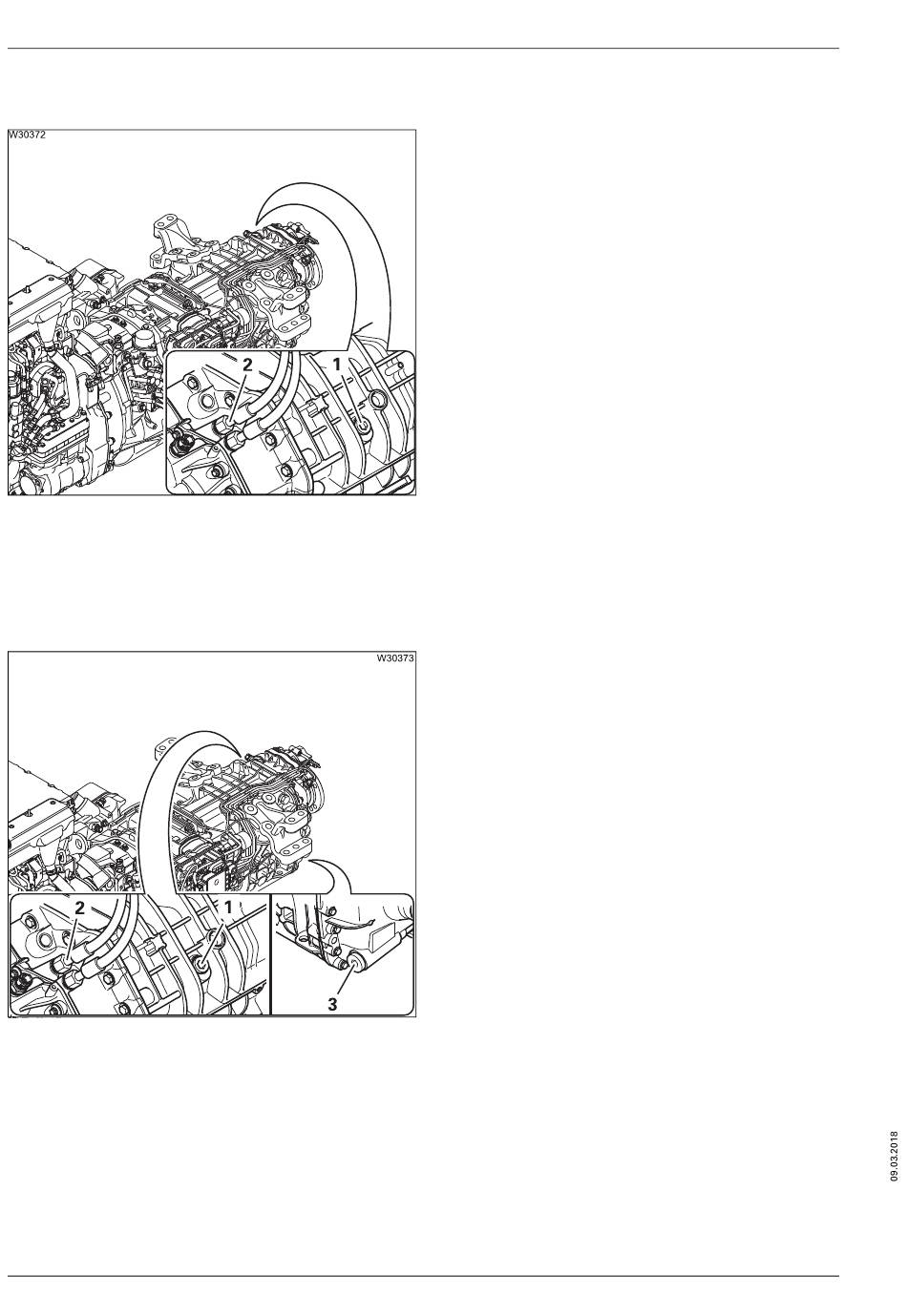

Remove the drain plug (1).
•
Remove the hose (2).
•
Top up oil through the hole (2) until oil
comes out of the hole (1).
•
Replace the gasket and tighten the drain
plug (1) – torque 25 Nm (18.4 lbf ft).
•
Add an additional 1.5 l (0.4 gal) oil through
the hole (2).
•
Attach the hose (2).
After changing oil, check for leakage:
•
Start the engine and let it idle in neutral N.
•
Check the screw plugs (1) to (3) for leakage.
•
Check the hoses and connections on the oil
cooler.
