Manitowoc Grove GMK 5200-1 Maintenance Manual page 180

Maintenance work on the carrier
7.15 Hydraulic system

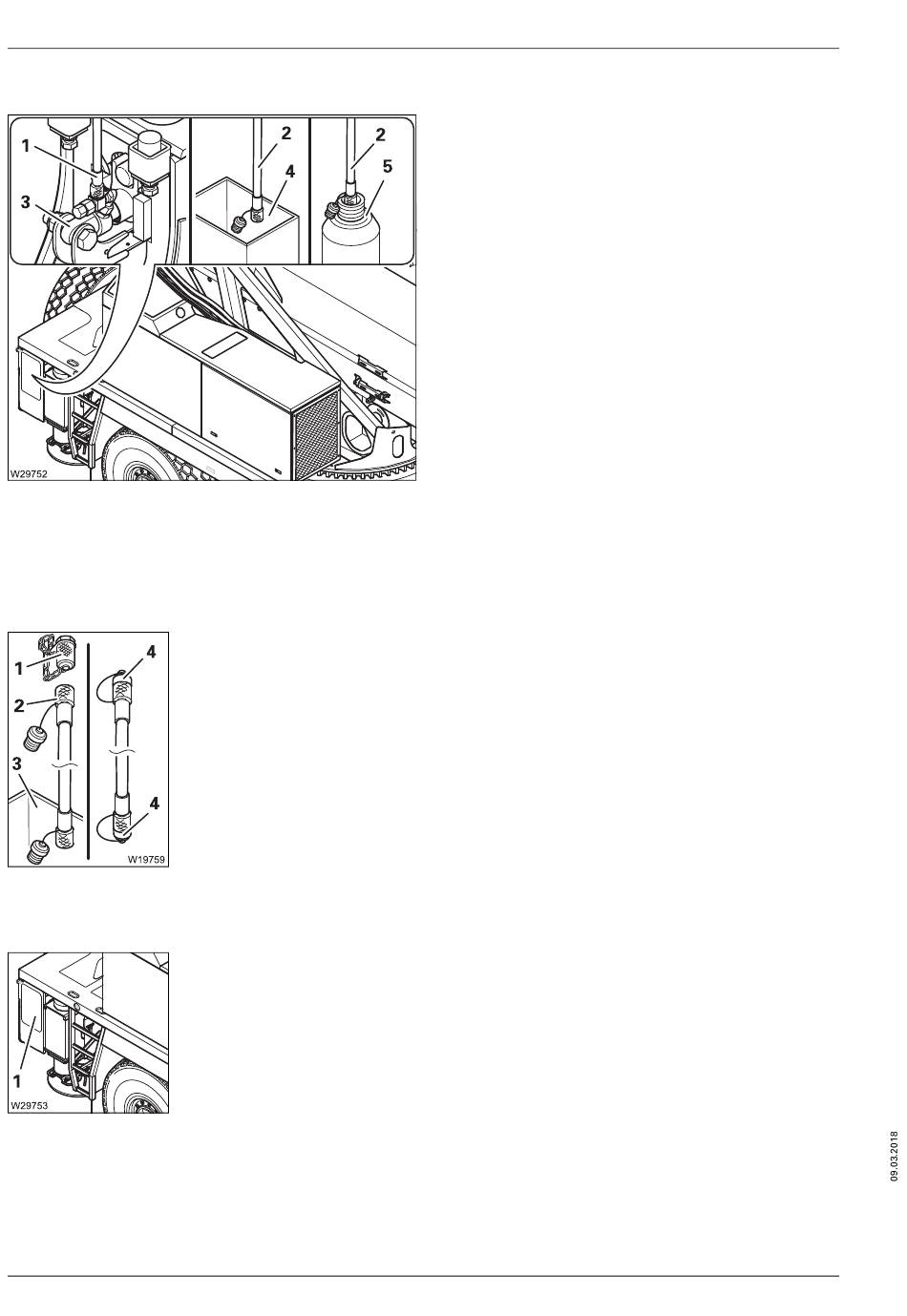

Taking oil samples
Disconnecting
the hose
7 - 108
•
Disconnect the hose (2) – the gauge port (1) closes.
•
Close the gauge port with the cap.
•
Allow the oil to flow out of the hose into the receptacle (3).
•
Close the hose ends with the caps (4).
Remove the receptacle and properly dispose of the oil.
•
Fasten the cover (1).
The hose end (1) is connected to the cylinder
(3).
The hose end (2) is in receptacle (4).
•
Start the engine.
•
Allow 2 litres (0.5 gal) of oil to flow into the
receptacle.
•
Switch off the engine and put the hose end
(2) into the sample container (5).
•
Start the engine.
•
Allow 0.3 litres (0.08 gal) of oil to flow into
the sample container.
•
Switch off the engine.
•
Put the hose end back into the receptacle.
•
Seal the sample container.
3 302 746 en Maintenance manual
GMK5200-1
