Maintenance work on the carrier

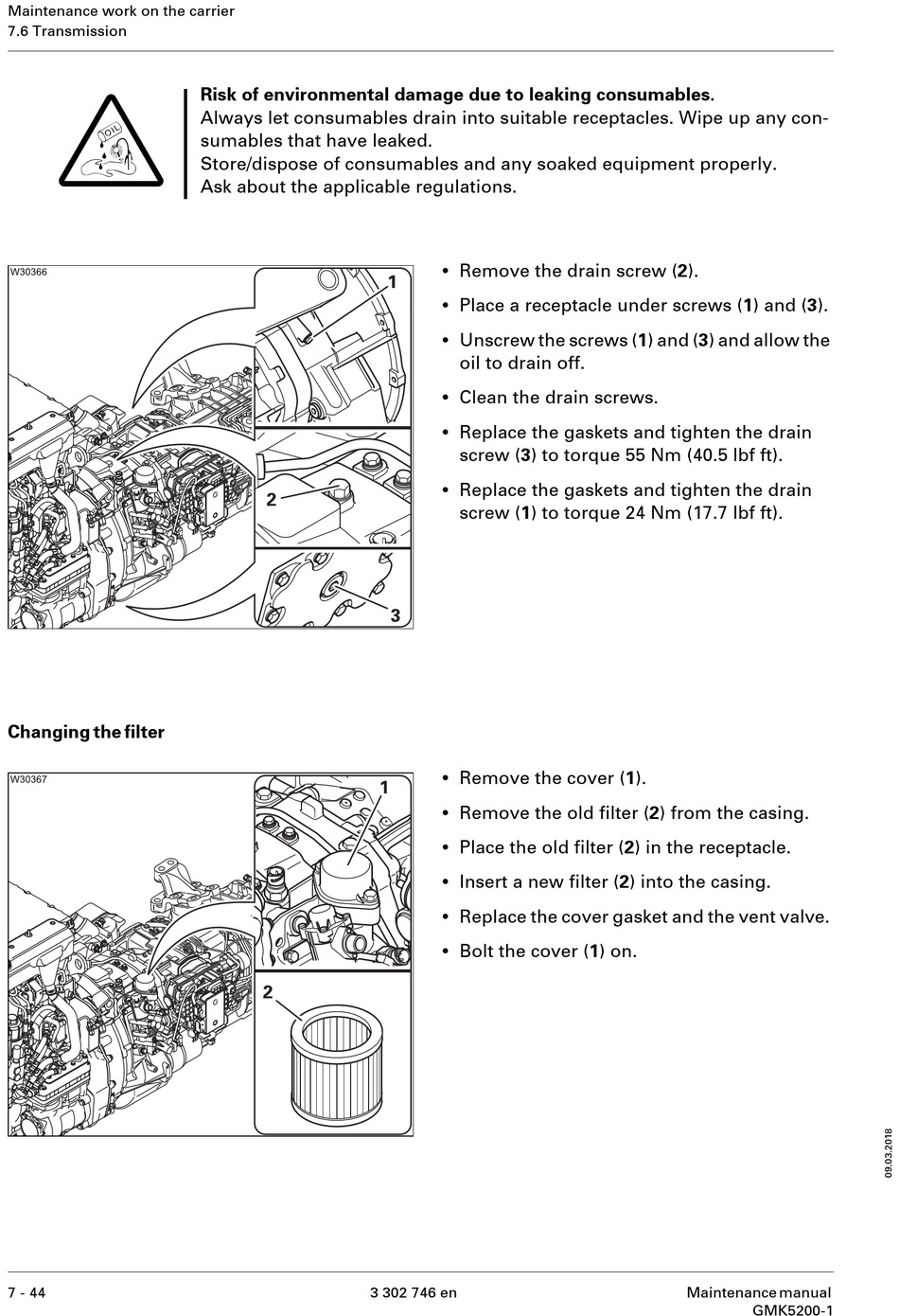

7.6 Transmission
O
Changing the filter
7 - 44
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
3 302 746 en
•
Remove the drain screw (2).
•
Place a receptacle under screws (1) and (3).
•
Unscrew the screws (1) and (3) and allow the
oil to drain off.
•
Clean the drain screws.
•
Replace the gaskets and tighten the drain
screw (3) to torque 55 Nm (40.5 lbf ft).
•
Replace the gaskets and tighten the drain
screw (1) to torque 24 Nm (17.7 lbf ft).
•
Remove the cover (1).
•
Remove the old filter (2) from the casing.
•
Place the old filter (2) in the receptacle.
•
Insert a new filter (2) into the casing.
•
Replace the cover gasket and the vent valve.
•
Bolt the cover (1) on.
Maintenance manual
GMK5200-1
