Lubricating The Crane Cab Door - Manitowoc Grove GMK 5200-1 Maintenance Manual

8.14.3
Grease, spare
parts, tools
Prerequisites
Greasing
Maintenance manual
GMK5200-1

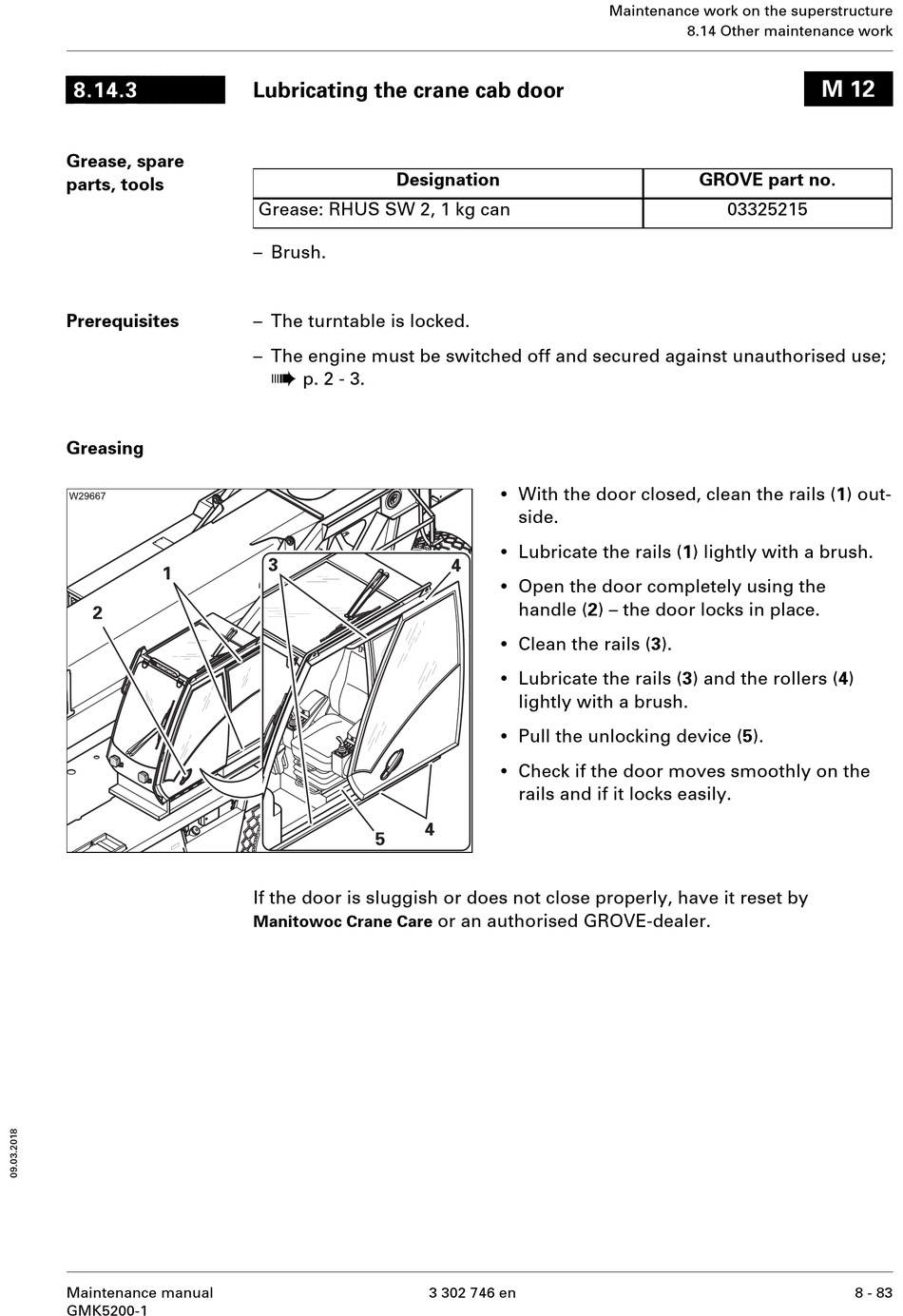

Lubricating the crane cab door

Designation
Grease: RHUS SW 2, 1 kg can
– Brush.
– The turntable is locked.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
If the door is sluggish or does not close properly, have it reset by
Manitowoc Crane Care
•
With the door closed, clean the rails (1) out-
side.
•
Lubricate the rails (1) lightly with a brush.
•
Open the door completely using the
handle (2) – the door locks in place.
•
Clean the rails (3).
•
Lubricate the rails (3) and the rollers (4)
lightly with a brush.
•
Pull the unlocking device (5).
•
Check if the door moves smoothly on the
rails and if it locks easily.
or an authorised GROVE-dealer.
3 302 746 en
Maintenance work on the superstructure
8.14 Other maintenance work
GROVE part no.
03325215
M 12
8 - 83
