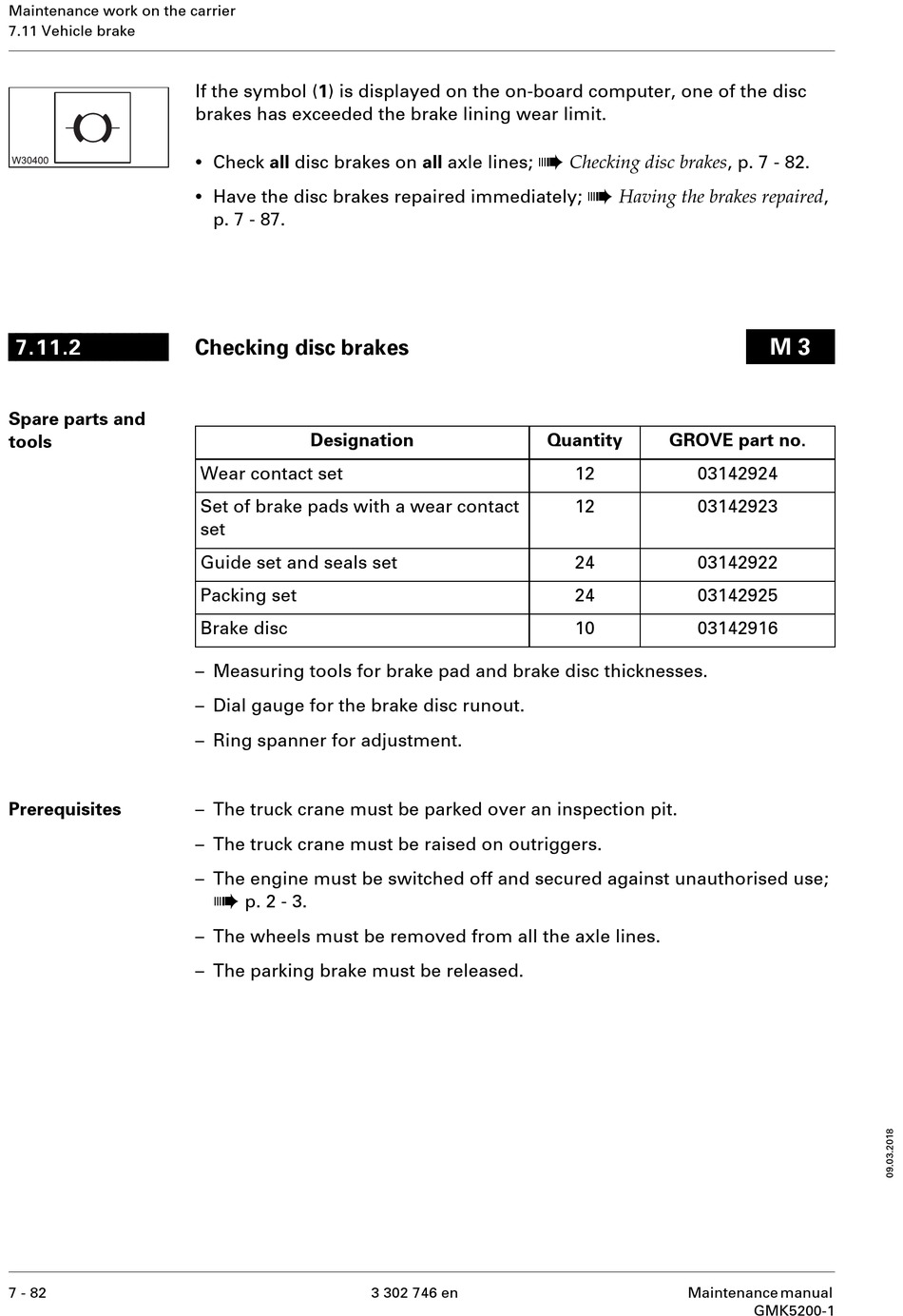

Maintenance work on the carrier
7.11 Vehicle brake
7.11.2
Spare parts and
tools
Prerequisites
7 - 82
If the symbol (1) is displayed on the on-board computer, one of the disc
brakes has exceeded the brake lining wear limit.
•
Check all disc brakes on all axle lines;
•
Have the disc brakes repaired immediately;
p. 7 - 87.

Checking disc brakes

Designation
Wear contact set
Set of brake pads with a wear contact
set
Guide set and seals set
Packing set
Brake disc
– Measuring tools for brake pad and brake disc thicknesses.
– Dial gauge for the brake disc runout.
– Ring spanner for adjustment.
– The truck crane must be parked over an inspection pit.
– The truck crane must be raised on outriggers.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The wheels must be removed from all the axle lines.
– The parking brake must be released.
à
3 302 746 en
Checking disc brakes , p. 7 - 82.
à
Having the brakes repaired ,
Quantity GROVE part no.
12 03142924
12 03142923
24 03142922
24 03142925
10 03142916
Maintenance manual
M 3
GMK5200-1
