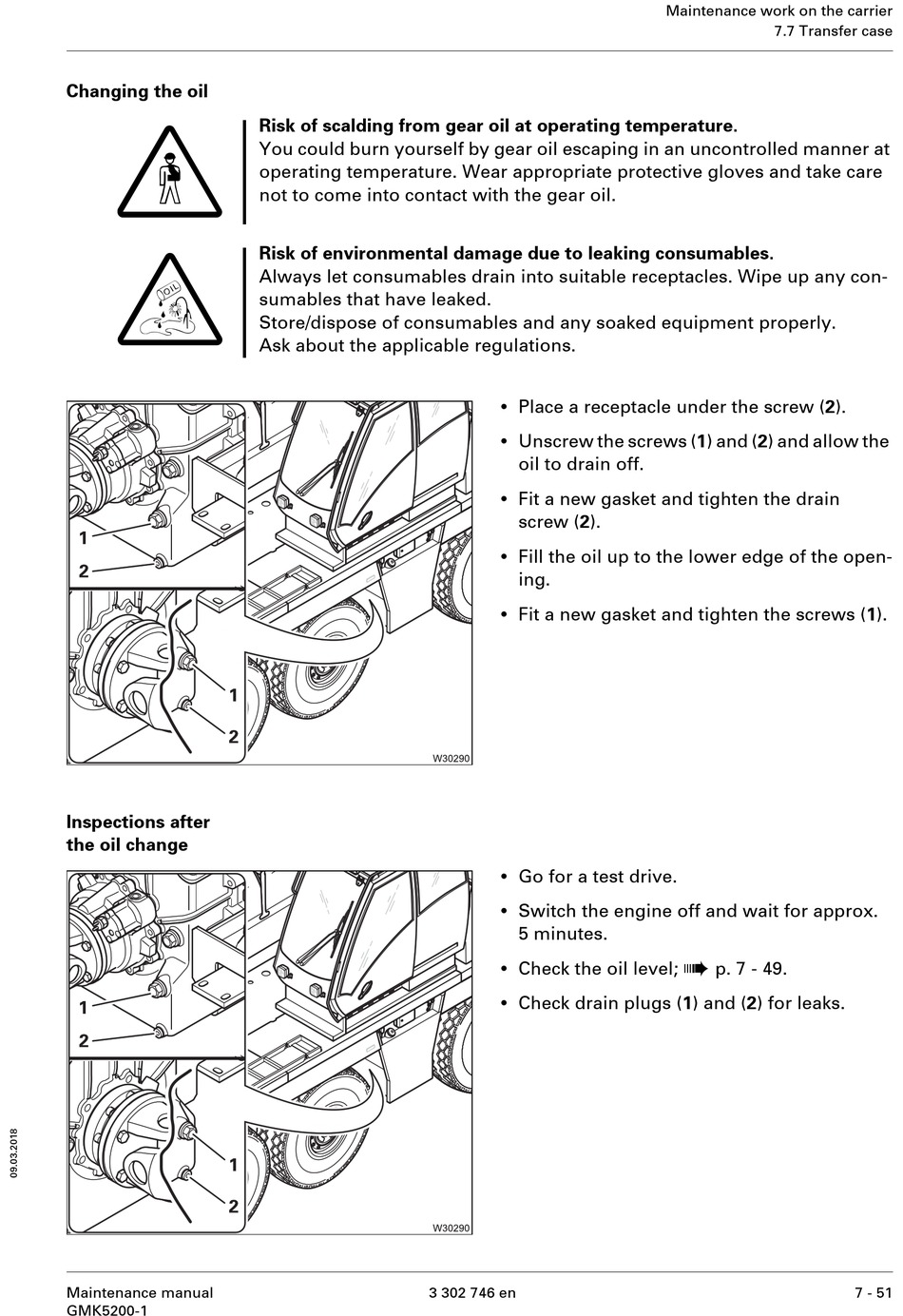

Changing the oil
G
O
Inspections after
the oil change
Maintenance manual
GMK5200-1
Risk of scalding from gear oil at operating temperature.
You could burn yourself by gear oil escaping in an uncontrolled manner at
operating temperature. Wear appropriate protective gloves and take care
not to come into contact with the gear oil.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
3 302 746 en
Maintenance work on the carrier
•
Place a receptacle under the screw (2).
•
Unscrew the screws (1) and (2) and allow the
oil to drain off.
•
Fit a new gasket and tighten the drain
screw (2).
•
Fill the oil up to the lower edge of the open-
ing.
•
Fit a new gasket and tighten the screws (1).
•
Go for a test drive.
•
Switch the engine off and wait for approx.
5 minutes.
•
Check the oil level;
•
Check drain plugs (1) and (2) for leaks.
7.7 Transfer case
à
p. 7 - 49.
7 - 51
