Have The Radiator Checked/Cleaned - Manitowoc Grove GMK 5200-1 Maintenance Manual

Maintenance work on the carrier
7.3 Engine
7.3.7
Reducing the
interval
Prerequisites
Check the level of
dirt
7 - 18

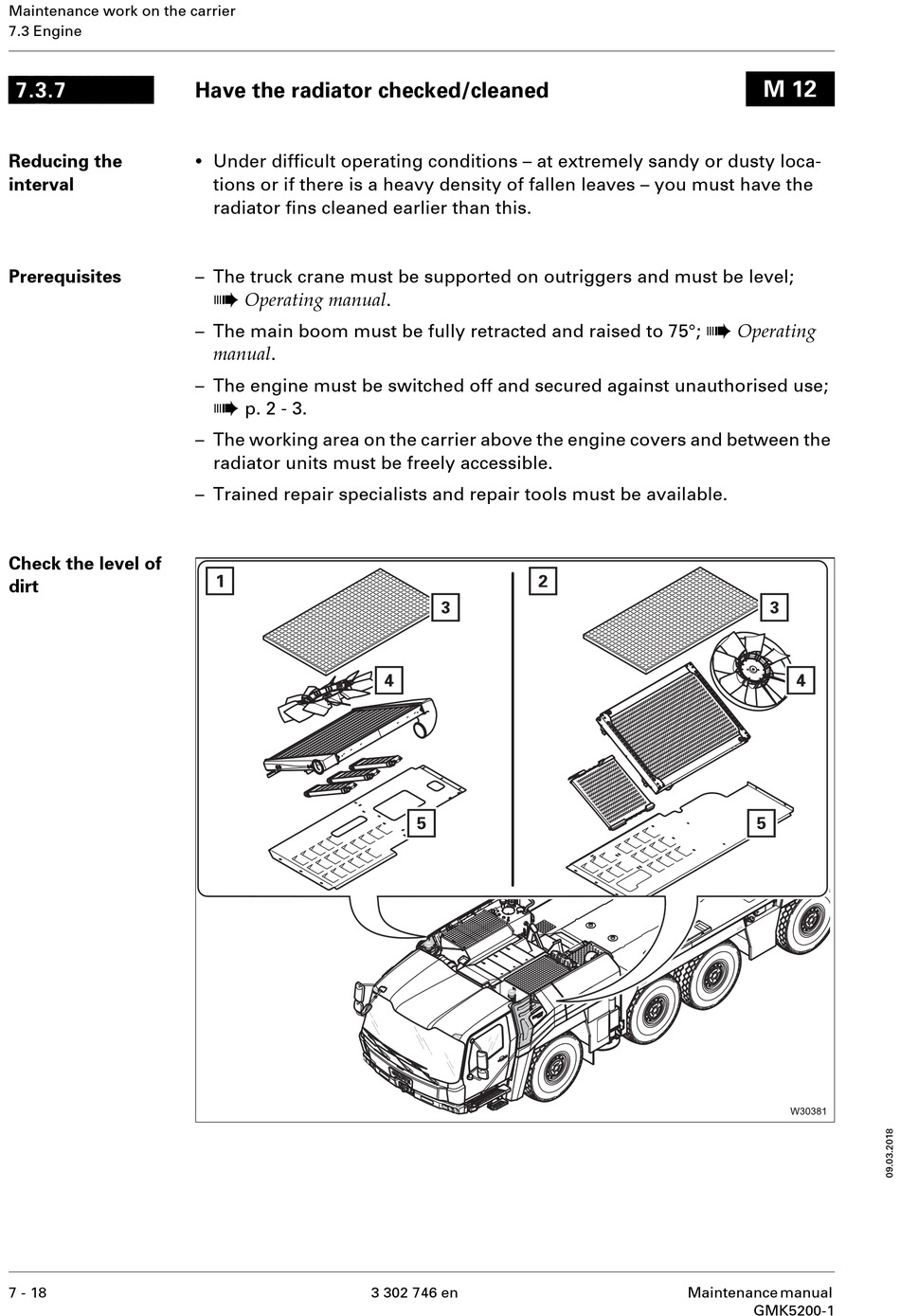

Have the radiator checked/cleaned

•
Under difficult operating conditions – at extremely sandy or dusty loca-
tions or if there is a heavy density of fallen leaves – you must have the
radiator fins cleaned earlier than this.
– The truck crane must be supported on outriggers and must be level;
à
Operating manual .
– The main boom must be fully retracted and raised to 75°;
manual .
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The working area on the carrier above the engine covers and between the
radiator units must be freely accessible.
– Trained repair specialists and repair tools must be available.
3 302 746 en
M 12
à
Operating
Maintenance manual
GMK5200-1
