Maintenance work on the superstructure
8.6 Hydraulic system
8.6.5
Spare parts and
tools
Prerequisites
O
8 - 34

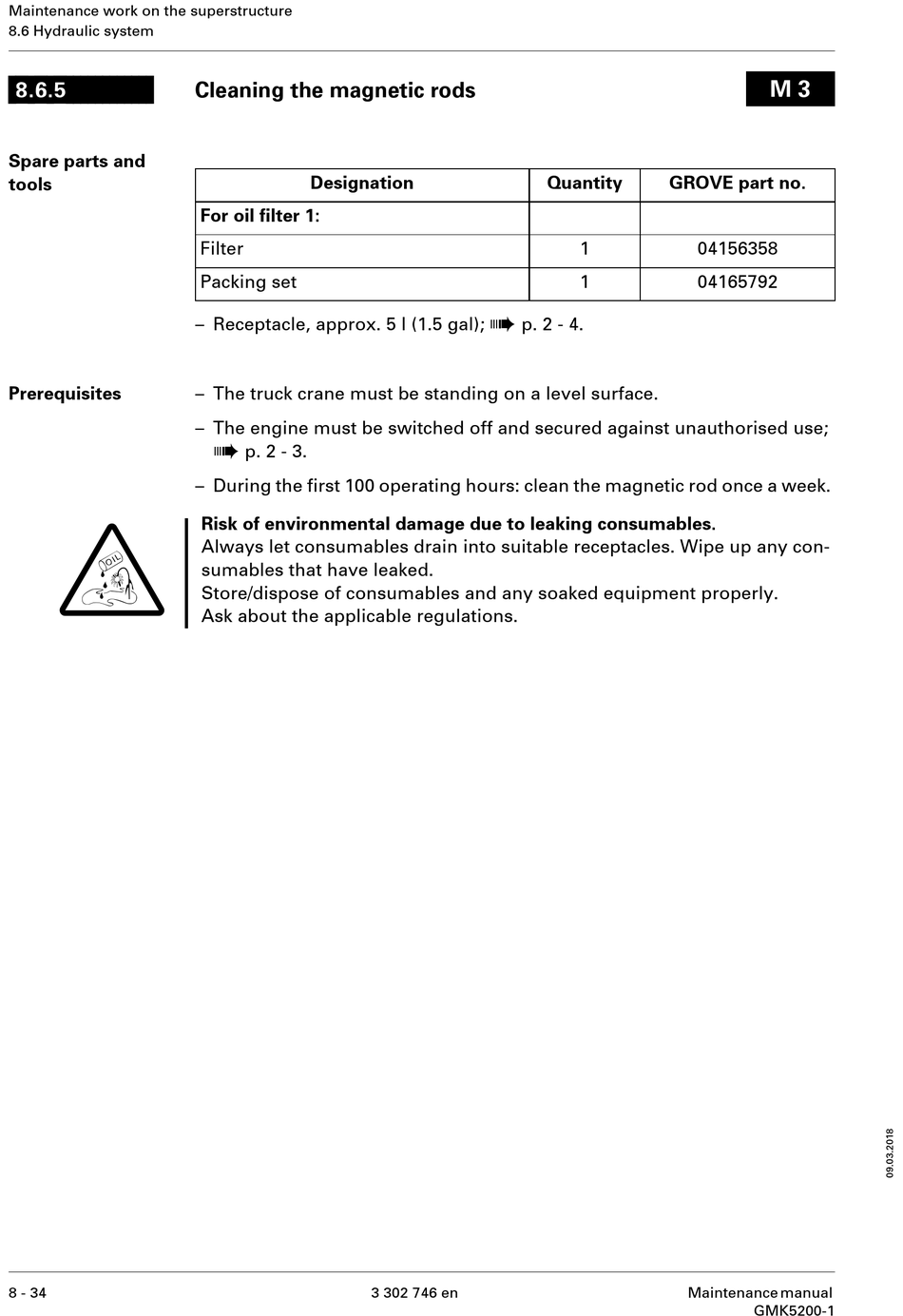

Cleaning the magnetic rods

Designation
For oil filter 1:
Filter
Packing set
– Receptacle, approx. 5 l (1.5 gal);
– The truck crane must be standing on a level surface.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– During the first 100 operating hours: clean the magnetic rod once a week.
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
à
p. 2 - 4.
3 302 746 en
Quantity GROVE part no.
1 04156358
1 04165792
Maintenance manual
M 3
GMK5200-1
