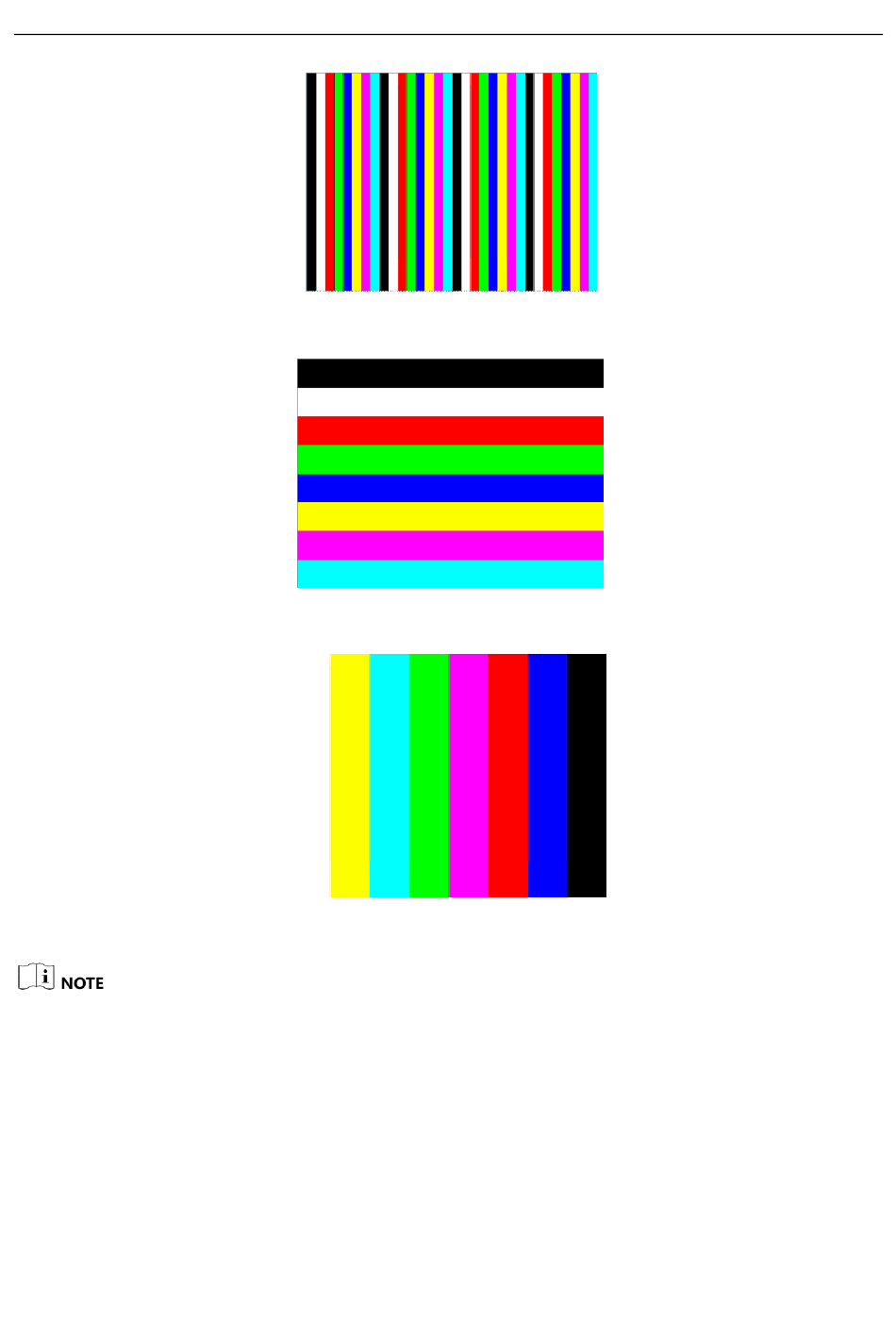

Figure 10-10 Vertical Color Bar Test Pattern
Figure 10-11 Horizontal Color Bar Test Pattern
Figure 10-12 Test Image 1
The pattern of the test image 1 may differ by camera models, and refer to the actual one you got.

10.6 Set Binning

The purpose of setting binning is to enhance sensibility. With binning, multiple sensor pixels are
combined as a single pixel to reduce resolution and improve image brightness.
Click Binning Selector, and set Binning Horizontal and Binning Vertical according to actual
demands.
